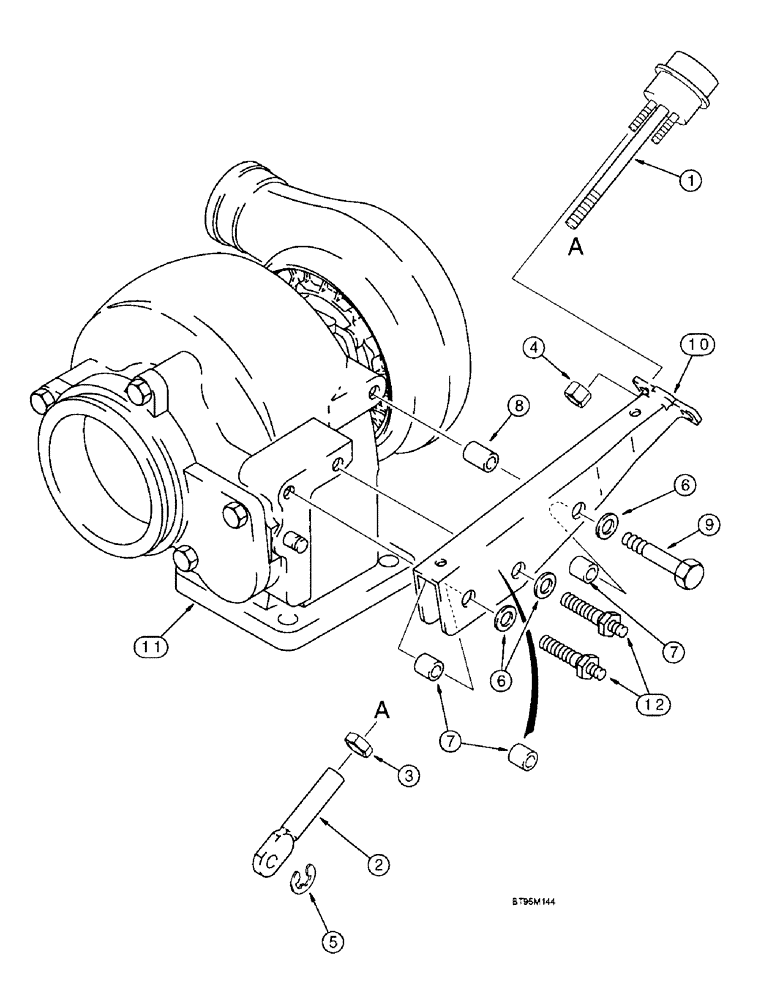

Запчасти Case 9040B (2-38) - WASTEGATE ACTUATOR, 6T-830 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC04#2001 AND AFTER (02) - ENGINE

1

J535106

ACTUATOR

- turbo wastegate

1шт.

1

J593679R

REMAN-SOLENOID

9040B, P.I.N. DAC04#2001 & Aft., Reman Actuator For New P/N's J535106 & J593679

1шт.

1

J593679C

CORE-SOLENOID

Return Number

1шт.

2

J528177

LINK

- adjusting

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

4

J528204

LOCK NUT

- lock

1шт.

5

J528221

CIRCLIP

RING - retaining

2шт.

NSS

NOT SOLD SEPARAT

HOUSING - turbine and actuator bracket, Includes: Ref. 6 - 12

1шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

- mounting, short, 13,6 mm

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

- mounting, long, 19 mm

1шт.

9

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

- hex, 8 - 1.25 x 55 mm

1шт.

10

J533328

SUPPORT

BRACKET - wastegate actuator

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

12

J535874

STUD

- actuator bracket

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.
