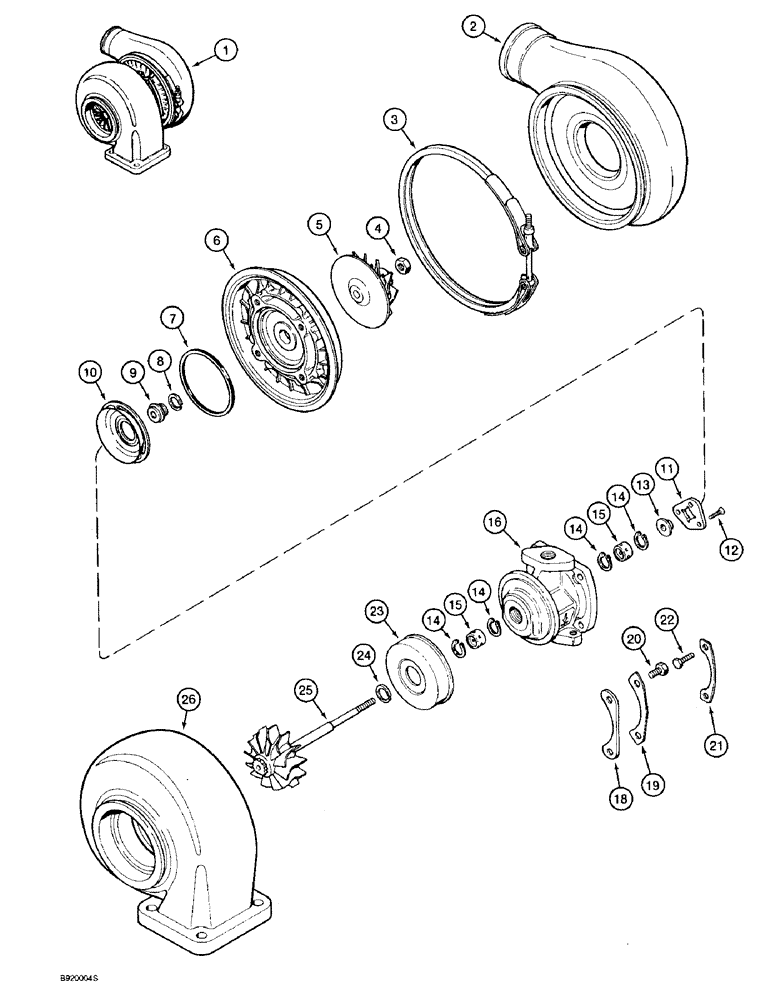

Запчасти Case 9040B (2-34) - TURBOCHARGER ASSEMBLY, 6T-830 ENGINE, PRIOR TO P.I.N. DAC04#2001 (02) - ENGINE

1

J535456

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, production only, order J545652 turbocharger kit shown below, Includes: Ref. 2 - 26

1шт.

1

JR802303

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR909308

TURBOCHARGER

Turbocharger Assembly, Engine, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 26

1шт.

1

JC909308

TURBOCHARGER

Return Part Number - Use this part number to return turbocharger core for credit when using a remanufactured assembly, Includes: Ref. 2 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - compressor

1шт.

6

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - split ring, oil slinger

1шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

9

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

10

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - flat head slotted

3шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

13

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

14

NSS

NOT SOLD SEPARAT

RING - snap, bearing retaining

4шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - bearing, turbine

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - clamp, turbine housing

2шт.

19

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - hex, retaining

4шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

4шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - hex, lock, includes washer

4шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

23

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - ring, turbine

1шт.

Part of turbocharger overhaul kit P/N J545652.

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR - turbine

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

J545652

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Refs. 7, 8, 11, 12, 14, 15, 19 - 22 and 24

1шт.
