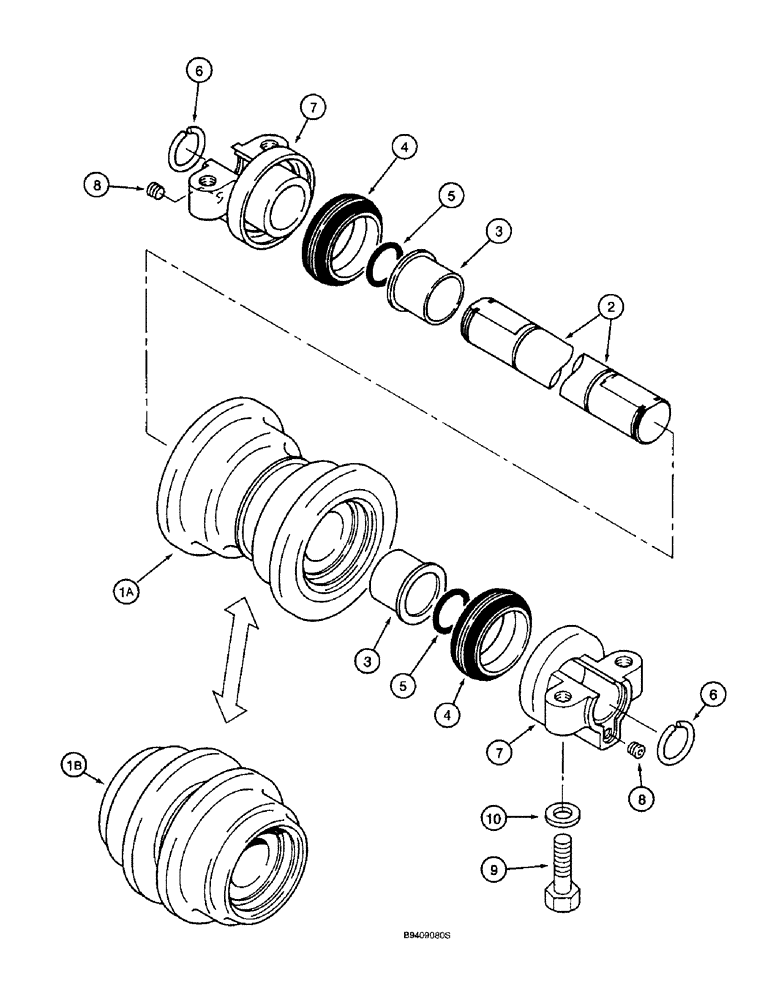

Запчасти Case 9040B (5-20) - TRACK ROLLERS, ALL MODELS EXCEPT TIMBER KING MODELS (11) - TRACKS/STEERING

159407A1

TRACK ROLLER

ROLLER ASSEMBLY - with outer flanges, Includes: Ref. 1A - 8

12шт.

159408A1

TRACK ROLLER

ROLLER ASSEMBLY - with inner flanges, Includes: Ref. 1A - 8

6шт.

1a

159409A1

SHIFTER ROLLER

HUB - track roller, outer flanges

1шт.

1b

159410A1

SHIFTER ROLLER

HUB - track roller, inner flanges

1шт.

2

159401A1

WHEEL SHAFT

SHAFT - roller

1шт.

3

159412A1

RING

BUSHING - special

2шт.

4

151126A1

SEAL

- face, includes two rings and two seals

2шт.

5

154655A1

O-RING

- shaft

2шт.

6

151152A1

LOCKING RING

RING - retaining

2шт.

7

159411A1

COLLAR

BRACKET - mounting

2шт.

8

150821A1

PLUG

- port, mounting bracket

2шт.

9

159391A1

BOLT,Hex, M18 x 75mm

BOLT - special

72шт.

10

157546A1

WASHER,19mm ID x 36mm OD x 4.5mm Thk

- flat, special

72шт.
