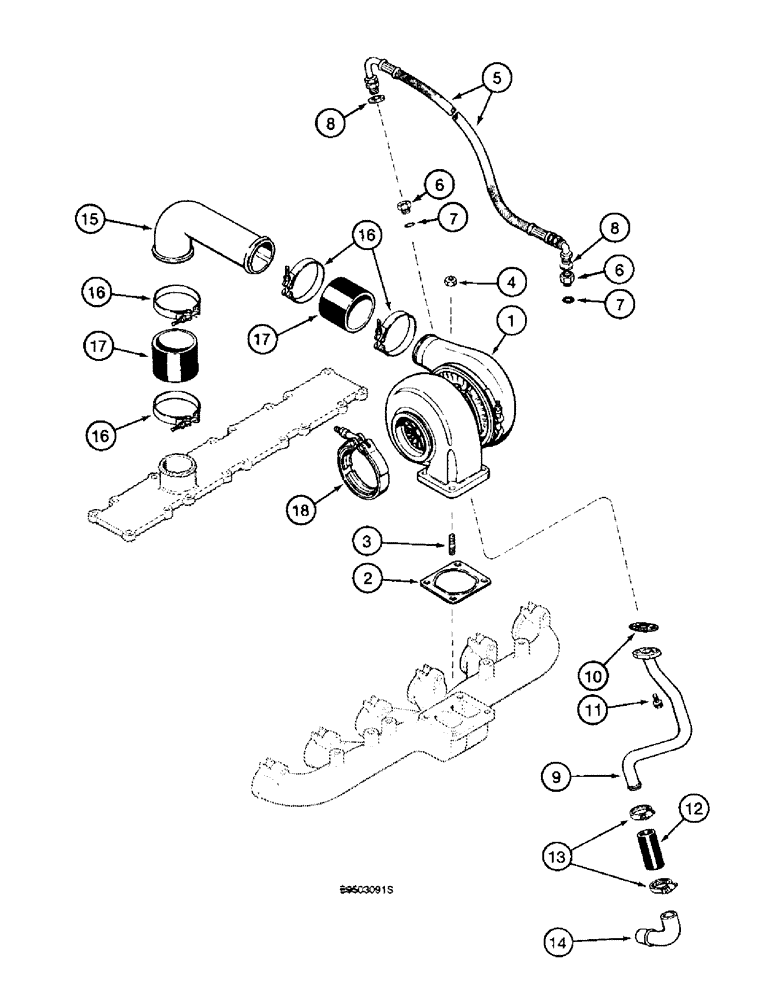

Запчасти Case 9040B (2-32) - TURBOCHARGER SYSTEM, 6T-830 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC04#2001 AND AFTER (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see figure 2-36 for correct assembly and component parts

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J818823

STUD

- turbocharger mounting, M10 x 40

4шт.

4

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5

4шт.

5

J921530

HOSE,9.53mm ID x 385mm L

Turbocharger Oil Supply

1шт.

6

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Includes: Ref. 17

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

9

J928629

TUBE

- oil drain, turbocharger, Includes: Ref. 10

1шт.

10

J819378

GASKET

- turbo oil drain

1шт.

11

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

12

J903745

LARGE HOSE

1шт.

13

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

14

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

1шт.

15

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

- air, crossover

1шт.

16

J924386

COLLAR CLAMP

CLAMP - adjustable, special, hose retaining

4шт.

17

J916529

TRANSMISSION SLEEVE

1шт.

18

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

19

A170807

CLAMP,102mm ID

retaining, special

1шт.
