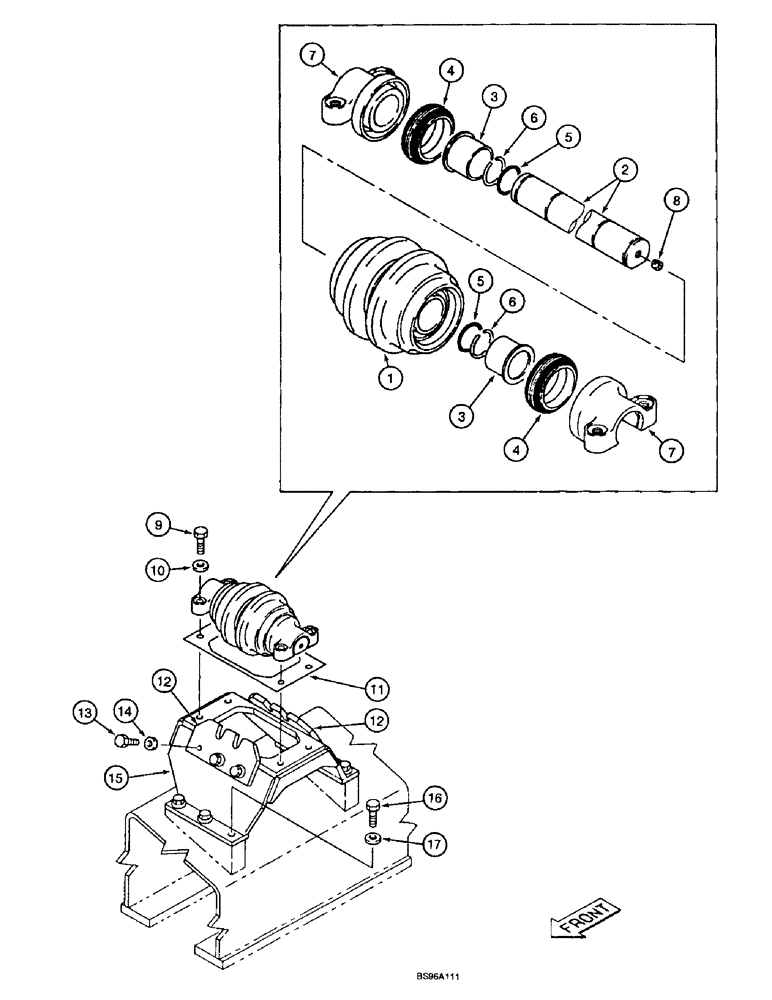

Запчасти Case 9040B (5-18) - TRACK CARRIER ROLLER, TIMBER KING MODELS (11) - TRACKS/STEERING

151871A1

ROLLER ASSY.

ROLLER ASSEMBLY - track, carrier, Includes: Ref. 1 - 8

4шт.

1

151681A1

SHIFTER ROLLER

HUB - inner flanges

1шт.

2

151875A1

WHEEL SHAFT

SHAFT - roller

1шт.

3

151509A1

RING

BUSHING - roller

2шт.

4

151126A1

SEAL

- face, track roller, includes two rings and two seals

2шт.

5

154655A1

O-RING

- shaft

2шт.

6

151152A1

LOCKING RING

RING - retaining, shaft retaining

2шт.

7

151881A1

COLLAR

BRACKET - mounting, track roller

2шт.

8

150824A1

PLUG

- port

1шт.

9

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

- hex, 20 - 2.5 x 70 mm, class 10.9

16шт.

10

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

16шт.

11

158754A1

BLOCK

PLATE - shim, roller

8шт.

12

158753A1

PLATE

- slotted, roller support

8шт.

13

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

24шт.

14

150811A1

WASHER

- flat, special, 12 mm

24шт.

15

164197A1

BRACKET

- roller mounting

4шт.

16

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

24шт.

17

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

24шт.
