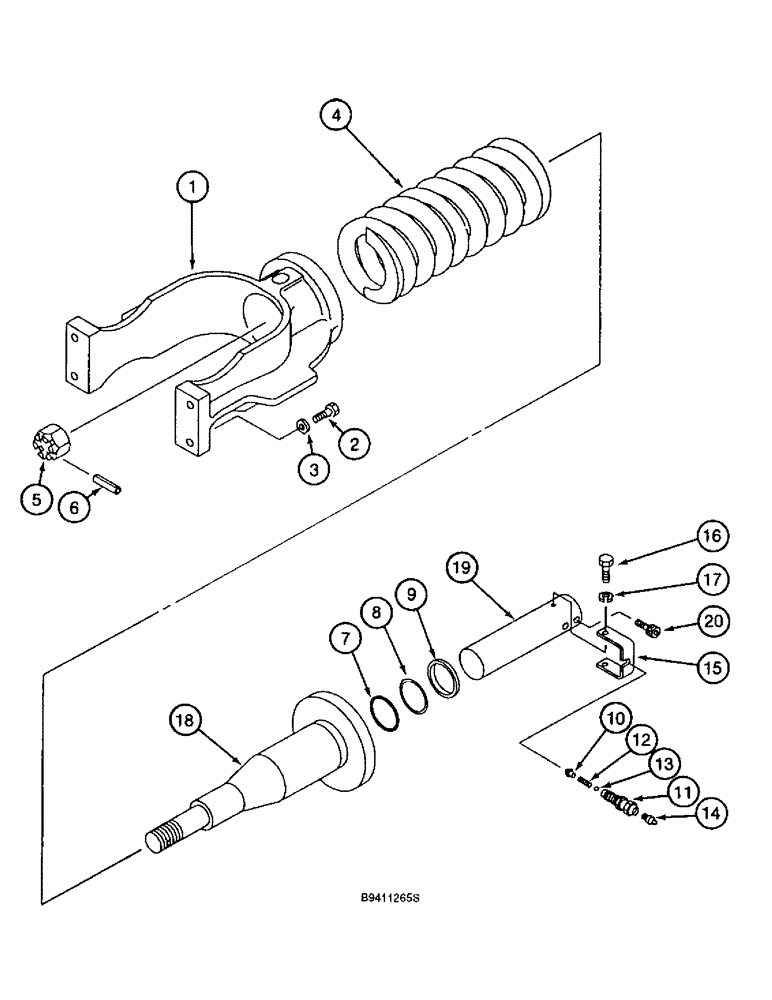

Запчасти Case 9040B (5-12) - TRACK ADJUSTER, ALL MODELS EXCEPT TIMBER KING MODELS (11) - TRACKS/STEERING

1

159394A1

FORK

YOKE - track adjuster

2шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

8шт.

4

159402A1

SPRING

- track tension

2шт.

5

349968A1

NUT

- hex slotted

2шт.

Size is M56 x 2. This matches the M56 x 2 thread size on Ref. # 18 159405A1 guide.

1шт.

6

838-5890

LOCK PIN,M8 x 90, Slotted

PIN - roll, 8 x 90 mm

2шт.

159406A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - track adjuster, Includes: Ref. 7 - 20

2шт.

7

154688A1

O-RING

- piston rod

1шт.

8

159400A1

BACK-UP RING

RING - backup

1шт.

9

159661A1

SEAL

WIPER - piston rod

1шт.

150107A1

LUBE NIPPLE

VALVE - check, Includes: Ref. 10 - 14

2шт.

10

150120A1

CAP

POPPET - check valve

1шт.

11

150112A1

VALVE SEAT

BODY - check valve

1шт.

12

150115A1

SPRING

- check valve

1шт.

13

150897A1

BALL

- check

1шт.

14

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

15

159403A1

BRACKET

- mounting, check valve

1шт.

16

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

2шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

159405A1

CYLINDER ASSY.

GUIDE - track tension spring

1шт.

19

159395A1

JACK PISTON

ROD - piston

1шт.

20

561-1021

SCREW,Hex Soc Hd, M16 x 1.5 x 30, 8.8

BOLT - hex socket, 16 - 1.5 x 25 mm, class 12.9

1шт.
