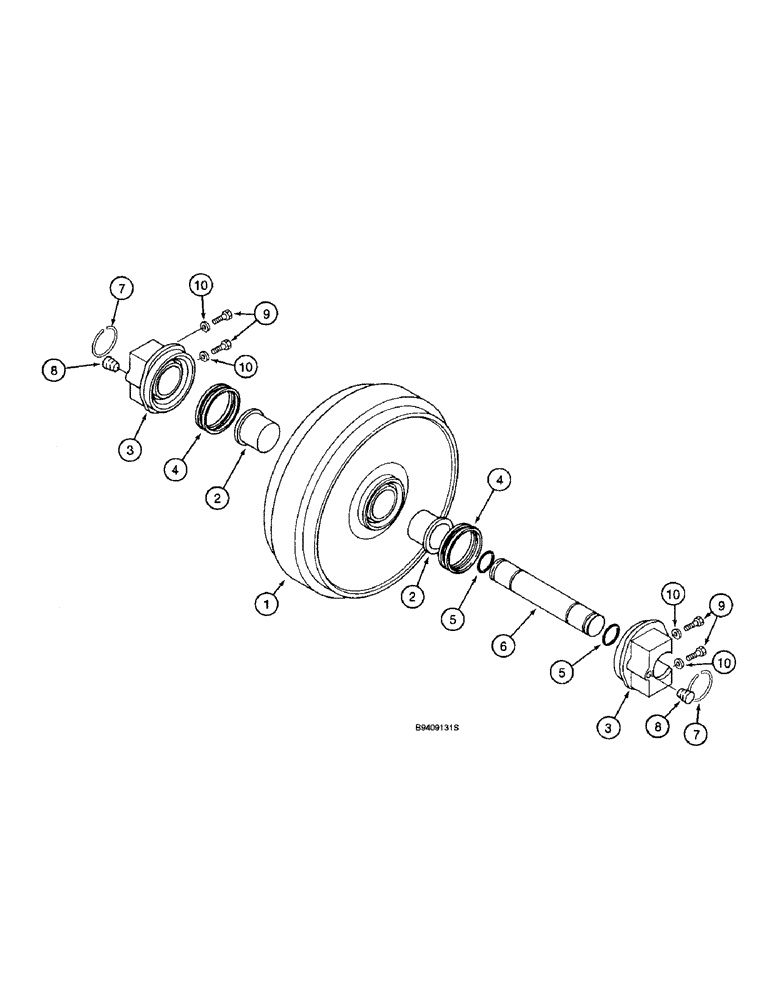

Запчасти Case 9040B (5-10) - IDLER WHEEL (11) - TRACKS/STEERING

159413A1

FLEETING PULLEY

WHEEL ASSEMBLY - idler, Includes: Ref. 1 - 10

2шт.

1

159414A1

ROLLER

WHEEL - idler, all models except timber king

2шт.

2

159412A1

RING

BUSHING - special, all models except timber king

4шт.

3

159415A1

HUB

- idler support, all models except timber king

4шт.

4

151126A1

SEAL

- face, all models except timber king

4шт.

5

154655A1

O-RING

- shaft seal, all models except timber king

4шт.

6

159396A1

WHEEL SHAFT

SHAFT - idler wheel, all models except timber king

2шт.

7

151152A1

LOCKING RING

RING - retaining (wire clip), all models except timber king

4шт.

8

150821A1

PLUG

- port, all models except timber king

4шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

All models except timber king Hex, M16 x 50, 10.9

4шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special, all models except timber king

4шт.

152176A1

FRONT IDLER

WHEEL ASSEMBLY - idler, Includes: Ref. 1 - 10

2шт.

1

152179A1

FRONT IDLER

WHEEL - idler, timber king models

2шт.

2

151469A1

BUSHING

- Idler wheel, Timber King models

4шт.

3

151819A1

HUB

- idler support, timber king models

4шт.

4

150706A1

SEAL

- face, includes two rings and two seals, timber king models

4шт.

5

154679A1

O-RING

- shaft seal, timber king models

4шт.

6

151465A1

WHEEL SHAFT

SHAFT - idler wheel, timber king models

2шт.

7

151386A1

COLLAR

RING - snap (wire clip), timber king models

4шт.

8

150821A1

PLUG

- port, timber king models

4шт.
