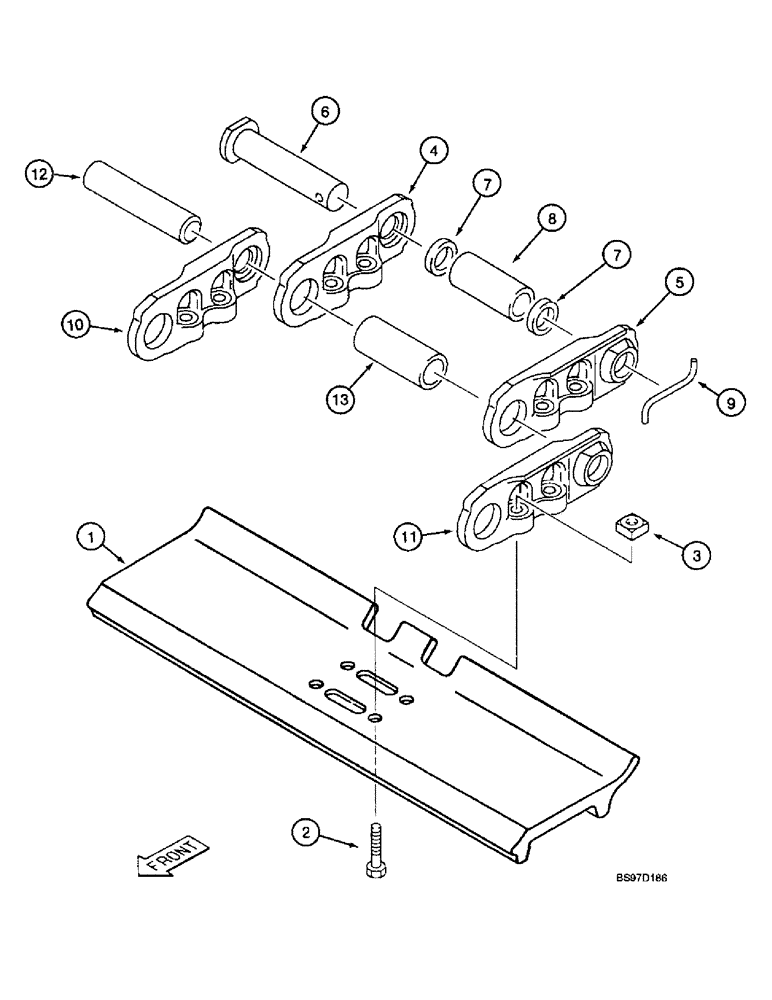

Запчасти Case 9040B (5-08) - TRACK CHAIN AND SHOES, TIMBER KING MODELS (11) - TRACKS/STEERING

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - track, Includes: Ref. 1 - 13

2шт.

1

164204A1

TRACK SHOE

SHOE - track, two bar grouser, 700 mm (27-1/2 inch) wide

100шт.

2

151985A1

BOLT,Spher Hex, M20 x 65mm

BOLT - special

400шт.

3

151767A1

NUT

- special

400шт.

151979A1

TRACK CHAIN

CHAIN ASSEMBLY - track, without track shoes, Includes: Ref. 4 - 13

2шт.

4

151998A1

LINK

- master, right-hand

2шт.

5

152003A1

LINK

- master, left-hand

2шт.

6

152062A1

HEADED PIN,44mm OD x 247.5mm L

PIN - master link

2шт.

7

150048A1

SPACER

- bushing

4шт.

8

151037A1

BUSHING

- master pin

2шт.

9

151064A1

LINCH PIN

PIN - lock, for master link pin

2шт.

10

151989A1

TRACK LINK

LINK - track, standard right-hand

98шт.

11

151993A1

LINK

- track, standard left-hand

98шт.

12

158529A1

PIN

- link, standard track chain link

98шт.

13

150955A1

RING

BUSHING - track, standard track chain link

98шт.

For info. on new sealed and greased track chain parts for 700 mm shoe applications see installation diagram 364069A1 (for 9040B TK machines only).

1шт.
