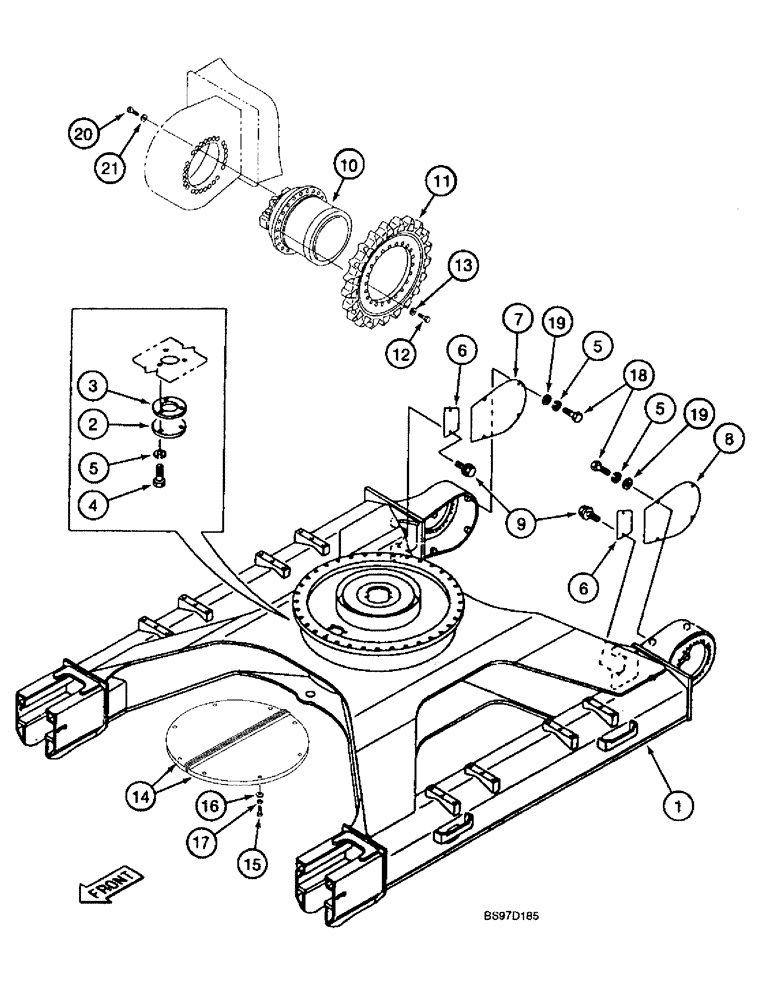

Запчасти Case 9040B (5-04) - TRACK FRAME AND DRIVE SPROCKET, TIMBER KING MODELS (11) - TRACKS/STEERING

1

164193A1

FRAME - track and undercarriage

1шт.

2

158929A1

LID

COVER - access, grease fill, turntable gear

1шт.

3

158930A1

CORK SEAL

GASKET - access cover

1шт.

4

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

3шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

13шт.

6

160691A1

COVER

- assess, hydraulic lines to track drive motor

2шт.

7

151803A1

ADHESIVE STRIP

COVER - access, track drive motor, right-hand

1шт.

8

151805A1

COVER

- access, track drive motor, left-hand

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

18шт.

10

163850A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, see parts list figure 6-2

2шт.

11

151758A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

12

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 65 mm, class 10.9

48шт.

13

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

48шт.

14

159683A1

COVER

- access, clean out, turntable gear

2шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

16

150811A1

WASHER

- flat, special, 12 mm

8шт.

17

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

18

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

10шт.

19

150811A1

WASHER

- flat, special, 12 mm

10шт.

20

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 70 mm, class 10.9

36шт.

21

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

36шт.
