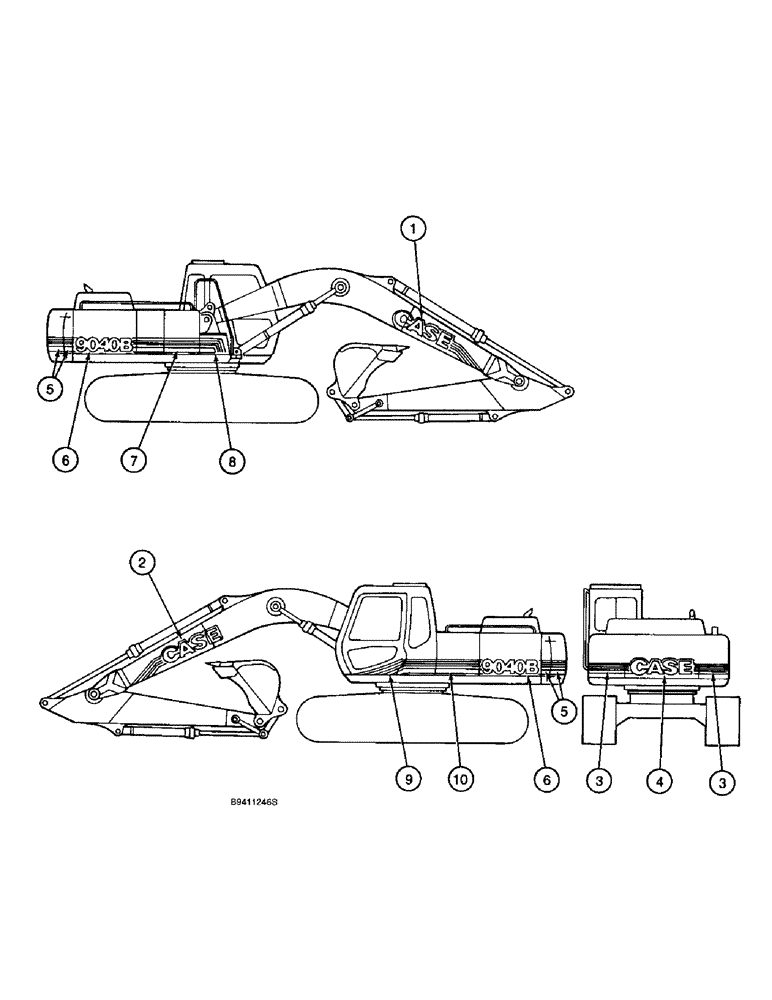

Запчасти Case 9040B (9-142) - DECALS, MODEL IDENTIFICATION AND STRIPING (09) - CHASSIS

1

162493A1

DECAL

- Case, on boom, right-hand

1шт.

2

162492A1

DECAL

- Case, on boom, left-hand

1шт.

3

162938A1

DECAL

- stripes, right-hand and left-hand rear corner and right-hand side on fuel tank, 620 mm (24-13/32 inch)

2шт.

4

162491A1

DECAL

- Case, rear, center

1шт.

5

162941A1

ADHESIVE

DECAL - stripes, right-hand and left-hand, corners, 100 mm (3-13/16 inch)

2шт.

6

162942A1

DECAL

- 9040B and stripes, right-hand and left-hand

2шт.

7

162943A1

DECAL

- stripes, right-hand, front, 1300 mm (51-3/8 inch)

1шт.

8

162958A1

DECAL

- stripes, right-hand, front

1шт.

9

162945A1

DECAL

- stripes, left-hand, front

1шт.

10

162944A1

DECAL

- stripes, right-hand side, 900 mm (35-11/64 inch)

1шт.
