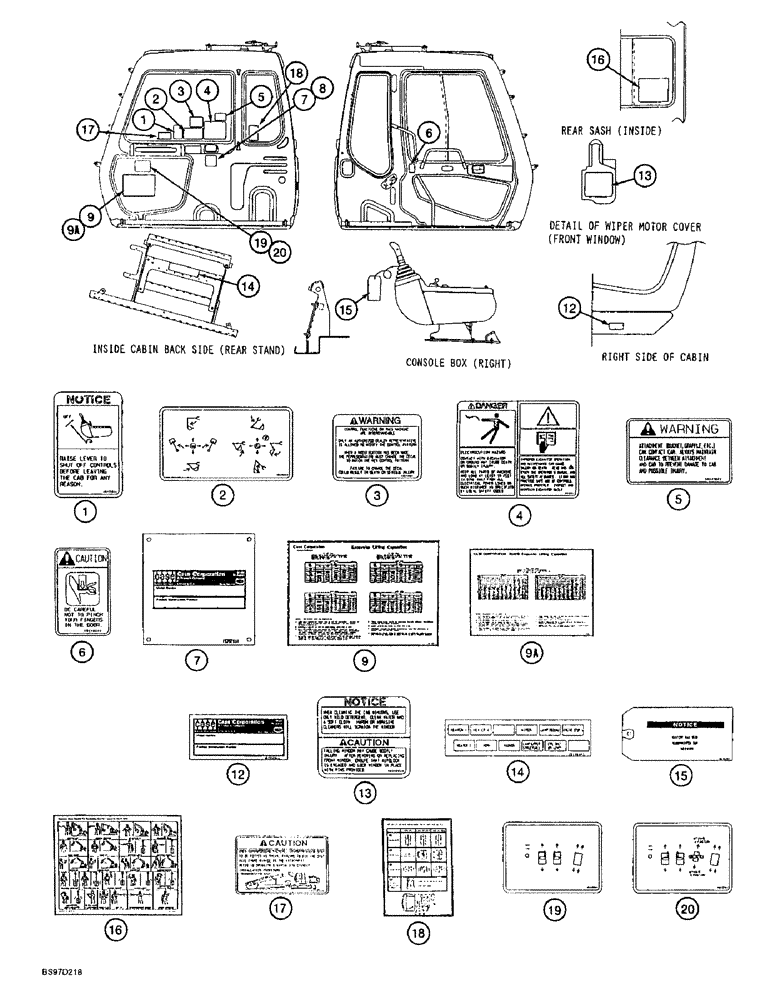

Запчасти Case 9040B (9-138) - DECALS - ENGLISH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS

1

161732A1

DECAL

- Notice, raise lever to shut off controls

1шт.

2

161459A1

DECAL

- control pattern

1шт.

3

162140A1

WARNING DECAL

DECAL - Warning, control functions on this machine are interchangeable

1шт.

4

161469A1

DECAL

- Danger, electrocution hazard

1шт.

5

161470A1

DECAL

- Warning, attachment can contact cab

1шт.

6

161461A1

DECAL

- Caution, be careful not to pinch your fingers

1шт.

7

153928A1

DECAL

PLATE - Product Identification Number, no longer used

1шт.

8

151586A1

RIVET

- blind, name plate, no longer used

4шт.

9

165154A1

DECAL

- excavator lifting capacities, replaces 161471A1, decal, for all models except long reach (25 ft. 11 inch arm) models

1шт.

9a

163835A1

DECAL

- excavator lifting capacities, for long reach (25 ft. 11 inch arm) models

1шт.

12

157995A1

DECAL

PLATE - Product Identification Number, no longer used

1шт.

13

161460A1

DECAL

- Notice, when cleaning the windows/Caution, falling window may cause

1шт.

14

161464A1

DECAL

- right-hand control console

1шт.

15

151937A1

ADHESIVE STRIP

TAG - maintenance

1шт.

16

162163A1

DECAL

- hand signal chart

1шт.

17

162988A1

ADHESIVE

DECAL - Caution, when transporting machine, for long reach (25 ft. 11 inch arm) models

1шт.

18

164781A1

DECAL

- auxiliary hydraulics

1шт.

19

161468A1

DECAL

- diagram, operating controls, operating controls

1шт.

20

162187A1

DECAL

- diagram, operating controls, operating controls

1шт.

All "B" series Excavators offer a John Deere conversion parts kit p/n: 165849A1 (except 9007B uses p/n: 167145A1). The decal for control pattern is p/n: 190282A1, includes the decal and instruction sheet.

1шт.
