(9-132) - TOOLS

Запчасти Case 9040B (9-132) - TOOLS (09) - CHASSIS

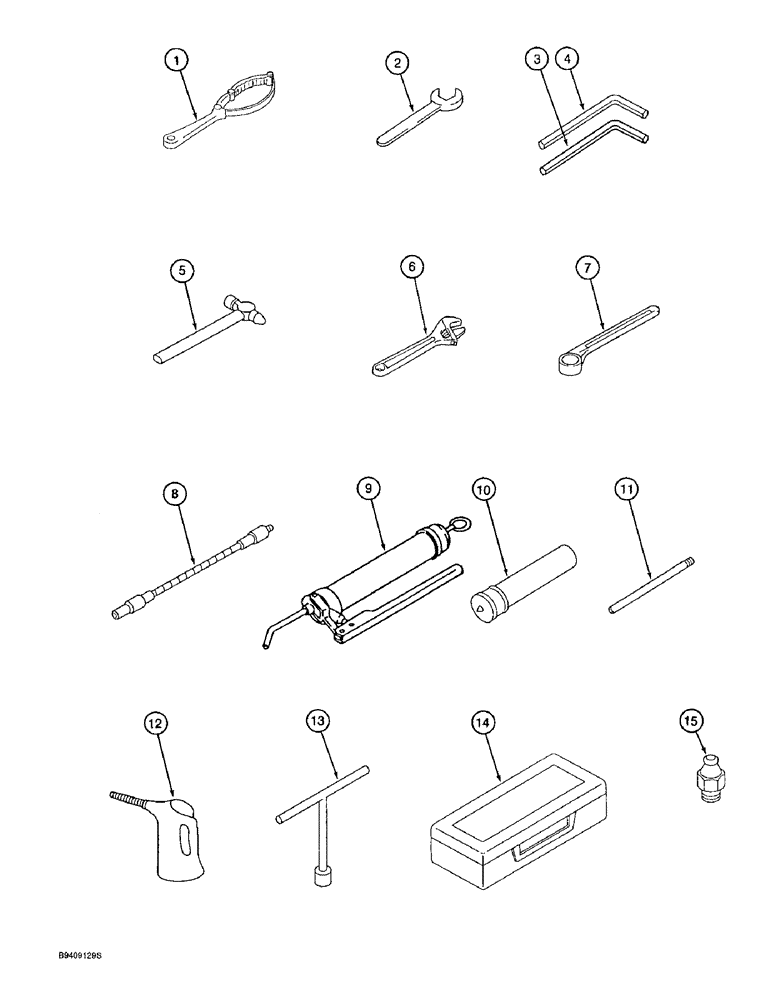

Схема запчастей Case 9040B - (9-132) - TOOLS (09) - CHASSIS
11
14
3
8
15
2
10
12
5
13
7
1
4
6
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150196A1

SPECIAL WRENCH

WRENCH - filter

1шт.

2

153609A1

TOOL

WRENCH - open end, 30 mm

1шт.

3

159389A1

SPECIAL WRENCH

WRENCH - Allen type

1шт.

4

153614A1

SPECIAL WRENCH

WRENCH - Allen type, 10 mm

1шт.

5

153617A1

HAMMER

- 1 pound

1шт.

6

153620A1

SPECIAL WRENCH

WRENCH - adjustable

1шт.

7

150778A1

TOOL

WRENCH - closed end

1шт.

151676A1

GREASE GUN

GUN - grease, Includes: Ref. 8 - 11

1шт.

8

150324A1

HOSE

Grease Gun

1шт.

9

150320A1

GREASE GUN

GUN - grease

1шт.

10

150309A1

CARTRIDGE

- grease

1шт.

11

151401A1

EXTENSION

NOZZLE - grease gun

1шт.

12

152333A1

CONTAINER

- oil, with spout

1шт.

13

152352A1

SPECIAL WRENCH

WRENCH - T-handle, 10 mm

1шт.

14

152357A1

BOX, TOOL

BOX - tool

1шт.

15

153630A1

LUBE NIPPLE

FITTING - grease, straight

5шт.
