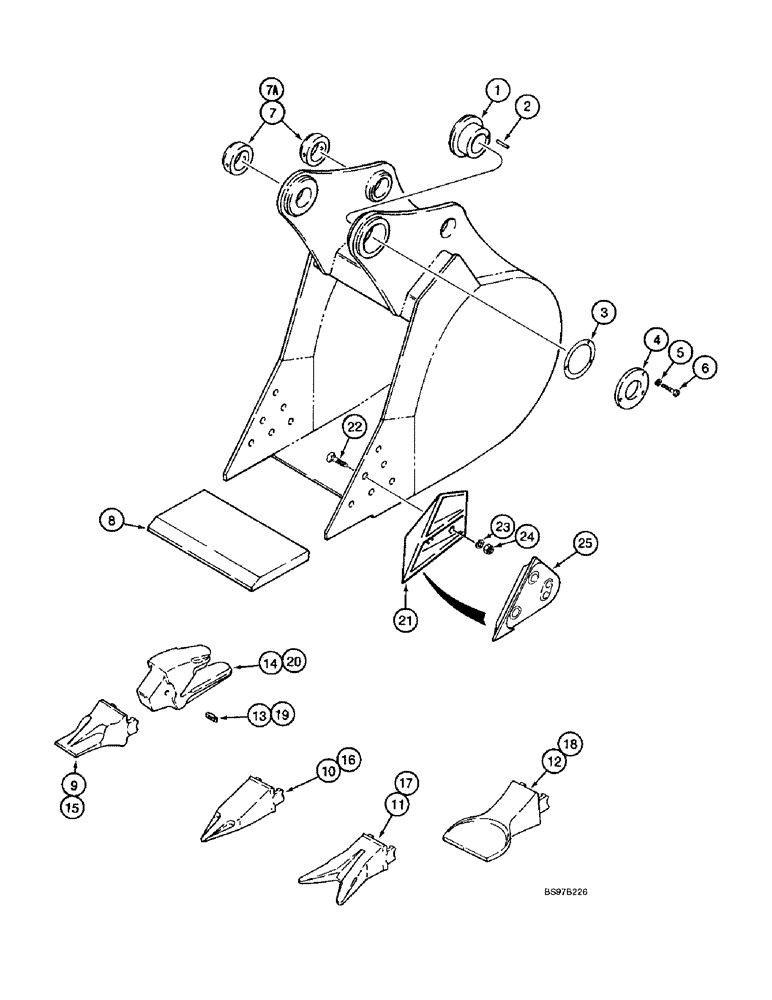

Запчасти Case 9040B (9-124) - MCF BUCKETS, GENERAL PURPOSE AND HEAVY DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.92 cu. yd, bucket assembly, general purpose

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.18 cu. yd, bucket assembly, general purpose

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.44 cu. yd, bucket assembly, general purpose

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.70 cu. yd, bucket assembly, general purpose

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 7 teeth, 1.96 cu. yd, bucket assembly, general purpose

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1524 mm (60 inch), with 7 teeth, 2.22 cu. yd, bucket assembly, general purpose

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.92 cu. yd, bucket assembly, heavy duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.18 cu. yd, bucket assembly, heavy duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.44 cu. yd, bucket assembly, heavy duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.70 cu. yd, bucket assembly, heavy duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 7 teeth, 1.96 cu. yd, bucket assembly, heavy duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1524 mm (60 inch), with 7 teeth, 2.22 cu. yd, bucket assy, heavy duty, Includes: Ref. 1 - 25

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

254077A1

BUSHING

- adjustable, bucket assembly, heavy duty

1шт.

2

233822A1

PIN

- dowel, special, bucket assembly, heavy duty

1шт.

3

254078A1

SHIM

- adjustable bushing, bucket assembly, heavy duty

6шт.

4

254079A1

PLATE

- cover, adjustable bushing, bucket assembly, heavy duty

1шт.

5

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm, Bucket assembly, Heavy duty

4шт.

6

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

Bucket assembly, heavy duty Hex, M16 x 50, 8.8

4шт.

7

254080A1

BUSHING

- non-adjustable, with locking collar, used with general purpose buckets, bucket assembly, heavy duty

2шт.

7a

254081A1

SLEEVE

BUSHING - non-adjustable, with locking collar, used with heavy duty buckets, bucket assy, heavy duty

2шт.

8

257031A1

EDGE

- cutting, center, 762 mm (30 inch) bucket, center cutting edges, general purpose

1шт.

8

257032A1

EDGE

- cutting, center, 914 mm (36 inch) bucket, center cutting edges, general purpose

1шт.

8

257033A1

EDGE

- cutting, center, 1067 mm (42 inch) bucket, center cutting edges, general purpose

1шт.

8

257034A1

EDGE

- cutting, center, 1219 mm (48 inch) bucket, center cutting edges, general purpose

1шт.

8

257035A1

EDGE - cutting, center, 1372 mm (54 inch) bucket, center cutting edges, general purpose

1шт.

8

257036A1

EDGE - cutting, center, 1524 mm (60 inch) bucket, center cutting edges, general purpose

1шт.

8

257037A1

EDGE, CUTTING

EDGE - cutting, center, 762 mm (30 inch) bucket, center cutting edges, heavy duty

1шт.

8

257038A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, center cutting edges, heavy duty

1шт.

8

257039A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, center cutting edges, heavy duty

1шт.

8

257040A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket, center cutting edges, heavy duty

1шт.

8

257041A1

EDGE, CUTTING

EDGE - cutting, center, 1372 mm (54 inch) bucket, center cutting edges, heavy duty

1шт.

8

257042A1

EDGE, CUTTING

EDGE - cutting, center, 1524 mm (60 inch) bucket, center cutting edges, heavy duty

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - continued, from figure 9-124 - center cutting edges-heavy duty

1шт.

9

233798A1

TOOTH

- standard point, adapter, general purpose buckets

1шт.

10

233796A1

TOOTH

- tiger point, adapter, general purpose buckets

1шт.

11

241818A1

TOOTH

- twin tiger point, adapter, general purpose buckets

1шт.

12

241819A1

TOOTH

- spade point, 178 mm (7 inch) wide, adapter, general purpose buckets

1шт.

13

233799A1

BUCKET TOOTH KEY

PIN - tooth to shank, adapter, general purpose buckets

1шт.

14

233797A1

ADAPTER

SHANK - tooth, adapter, general purpose buckets

1шт.

15

254093A1

TOOTH

- standard point, adapter, heavy duty buckets

1шт.

16

254094A1

BUCKET TOOTH

TOOTH - tiger point, adapter, heavy duty buckets

1шт.

17

254096A1

BUCKET TOOTH

TOOTH - twin tiger point, adapter, heavy duty buckets

1шт.

18

254097A1

TOOTH

- spade point, 203 mm (8 inch) wide, adapter, heavy duty buckets

1шт.

19

254098A1

BUCKET TOOTH KEY

PIN - tooth to shank, 25.7 (1) x 17.8 (11/16) x 94.7 mm (3-3/4 inch), adapter, heavy duty buckets

1шт.

20

254091A1

ADAPTER

SHANK - tooth, adapter, heavy duty buckets

1шт.

21

241820A1

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side, 38.1 mm (1-1/2 inch) thick, side cutting edges and wear shroud

1шт.

21

242797A1

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side, 38.1 mm (1-1/2 inch) thick, side cutting edges and wear shroud

1шт.

21

244960A1

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side, 50.8 mm (2 inch) thick, side cutting edges and wear shroud

1шт.

21

244958A1

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side, 50.8 mm (2 inch) thick, side cutting edges and wear shroud

1шт.

22

320-21456

CARRIAGE BOLT,#3, 7/8" - 9 x 3 1/2", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3-1/2 inch, grade 8, side cutting edges and wear shroud

6шт.

23

392-21088

LOCK WASHER,7/8"

side cutting edges and wear shroud 7/8"

6шт.

24

329-1014

NUT,7/8"-9, G8

Side cutting edges and wear shroud 7/8"-9, G8

6шт.

25

244962A1

BLADE

SHROUD - wear, bucket, side cutting edges and wear shroud

2шт.
