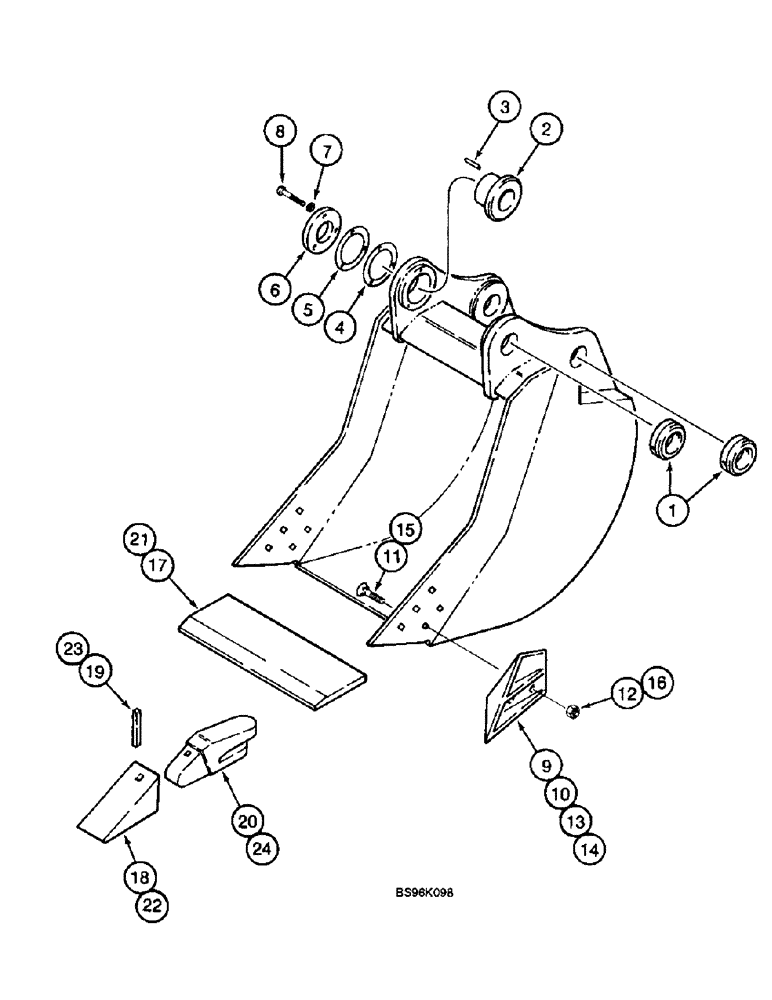

Запчасти Case 9040B (9-118) - H & H BUCKETS, GENERAL PURPOSE AND HEAVY DUTY - STANDARD OR HIGH CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 0.92 cu. yd, bucket assembly, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 5 teeth, 1.15 cu. yd, bucket assembly, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.38 cu. yd, bucket assembly, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 6 teeth, 1.62 cu. yd, bucket assembly, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 7 teeth, 1.84 cu. yd, bucket assembly, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 1.10 cu. yd, bucket assembly, general purpose, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 5 teeth, 1.50 cu. yd, bucket assembly, general purpose, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.70 cu. yd, bucket assembly, general purpose, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 0.92 cu. yd, bucket assembly, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 1.15 cu. yd, bucket assembly, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.38 cu. yd, bucket assembly, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 5 teeth, 1.50 cu. yd, bucket assembly, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 6 teeth, 1.72 cu. yd, bucket assembly, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 1.10 cu. yd, bucket assembly, heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 1.50 cu. yd, bucket assembly, heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.56 cu. yd, bucket assembly, heavy duty, high capacity, Includes: Ref. 1 - 8

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125671A1

BUSHING

- bucket, with locking collar, bucket assembly, heavy duty, high capacity

2шт.

2

125667A1

BUSHING

- bucket, adjustable, bucket assembly, heavy duty, high capacity, Includes: Ref. 3

1шт.

3

125664A1

DOWEL

PIN - dowel, special, bucket assembly, heavy duty, high capacity

2шт.

4

125668A1

SHIM

- plate mounting, bucket assembly, heavy duty, high capacity

1шт.

5

125669A1

SHIM

- plate mounting, bucket assembly, heavy duty, high capacity

1шт.

6

125670A1

RETAINER

PLATE - bushing, bucket assembly, heavy duty, high capacity

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bucket assembly, Heavy duty, High capacity 5/8"

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Bucket assembly, heavy duty, high capacity Hex, 5/8"-11 x 2", G8

3шт.

112780A1

EDGE, CUTTING

KIT - side cutting edge, 4 inch, bucket assembly, heavy duty, high capacity, Includes: Ref. 9 - 12

1шт.

9

125930A1

CUTTER

EDGE - side cutting, left-hand, 102 mm (4 inch), bucket assembly, heavy duty, high capacity

1шт.

10

125932A1

CUTTER

EDGE - side cutting, right-hand, 102 mm (4 inch), bucket assembly, heavy duty, high capacity

1шт.

11

320-21648

CARRIAGE BOLT,#3, 1" - 8 x 3", Gr 8

BOLT - plow, #3 head, 1 NC x 3 inch, grade 8, bucket assembly, heavy duty, high capacity

10шт.

12

232-41316

NUT,1"-8, GC

NUT, LOCK, , Bucket assembly, heavy duty, high capacity 1"-8, GC

10шт.

128170A1

HALF BLADE

KIT - edge, side cutting, 5 inch, bucket assembly, heavy duty, high capacity, Includes: Ref. 13 - 16

1шт.

13

125934A1

EDGE, CUTTING

EDGE - side cutting, left-hand, 127 mm (5 inch), bucket assembly, heavy duty, high capacity

1шт.

14

125936A1

EDGE, CUTTING

EDGE - side cutting, right-hand, 127 mm (5 inch), bucket assembly, heavy duty, high capacity

1шт.

15

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

BOLT - plow, #3 head, 1 NC x 3-1/2 inch, grade 8, bucket assembly, heavy duty, high capacity

10шт.

16

232-41316

NUT,1"-8, GC

NUT, LOCK, , Bucket assembly, heavy duty, high capacity 1"-8, GC

10шт.

17

125720A1

EDGE, CUTTING

EDGE - cutting, center, 762 mm (30 inch) bucket, cutting edges, general purpose

1шт.

17

125721A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, cutting edges, general purpose

1шт.

17

125722A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, cutting edges, general purpose

1шт.

17

125723A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket, cutting edges, general purpose

1шт.

17

125724A1

EDGE - cutting, center, 1372 mm (54 inch) bucket, cutting edges, general purpose

1шт.

18

122674A1

TOOTH

- standard point, cutting edges, general purpose

1шт.

See Figures 9-128 and 9-130 for point, pin and shank options.

1шт.

19

122675A1

FASTENER

PIN - flex, point to shank, cutting edges, general purpose

1шт.

See Figures 9-128 and 9-130 for point, pin and shank options.

1шт.

20

122676A1

BUCKET TOOTH SHANK

SHANK - tooth, 1-1/2 inch, cutting edges, general purpose

1шт.

See Figures 9-128 and 9-130 for point, pin and shank options.

1шт.

21

125720A1

EDGE, CUTTING

EDGE - cutting, center, 762 mm (30 inch) bucket, cutting edges, heavy duty

1шт.

21

125721A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, cutting edges, heavy duty

1шт.

21

125722A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, cutting edges, heavy duty

1шт.

21

125723A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket, cutting edges, heavy duty

1шт.

21

125724A1

EDGE - cutting, center, 1372 mm (54 inch) bucket, cutting edges, heavy duty

1шт.

22

122671A1

TOOTH

- standard point, cutting edges, heavy duty

1шт.

See Figures 9-128 and 9-130 for point, pin and shank options.

1шт.

23

122672A1

FASTENER

PIN - flex, tooth to shank, cutting edges, heavy duty

1шт.

See Figures 9-128 and 9-130 for point, pin and shank options.

1шт.

24

122673A1

BUCKET TOOTH SHANK

- tooth, 2 inch, cutting edges, heavy duty

1шт.

See Figures 9-128 and 9-130 for point, pin and shank options.

1шт.
