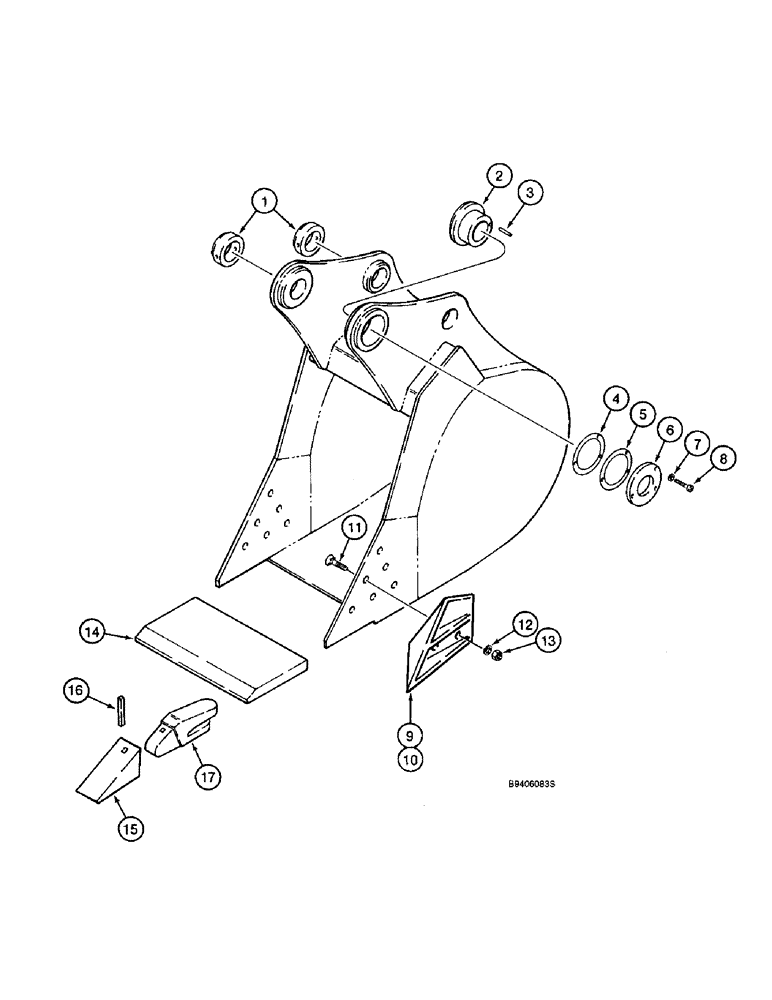

Запчасти Case 9040B (9-114) - CENTRAL FABRICATORS BUCKETS, SEVERE DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY - 762 mm (30 inch), with 3 teeth, 0.95 cu. yd., Includes: Ref. 1 - 14

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 914 mm (36 inch), with 4 teeth, 1.16 cu. yd., Includes: Ref. 1 - 14

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 1067 mm (42 inch), with 5 teeth, 1.38 cu. yd., Includes: Ref. 1 - 14

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122688A1

BUSHING

- bucket, with locking collar

2шт.

2

122684A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened

1шт.

4

122685A1

SHIM

- plate mounting, .039 inch thick

1шт.

5

122686A1

SHIM

- plate mounting, .02 inch thick

1шт.

6

122687A1

RETAINER

PLATE - bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, grade 8

6шт.

12

392-21088

LOCK WASHER,7/8"

7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

6шт.

14

125021A1

EDGE, CUTTING

EDGE - cutting, center, 762 mm (30 inch) bucket, severe duty

1шт.

14

125022A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, severe duty

1шт.

14

125023A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, severe duty

1шт.

15

122671A1

TOOTH

- standard point, cutting edge, severe duty

1шт.

See Figures 9-128 and 9-130 for point, pin and shank options.

1шт.

16

122672A1

FASTENER

PIN - flex, tooth to shank, cutting edge, severe duty

1шт.

See Figures 9-128 and 9-130 for point, pin and shank options.

1шт.

17

122673A1

BUCKET TOOTH SHANK

- tooth, 2 inch, cutting edge, severe duty

1шт.

See Figures 9-128 and 9-130 for point, pin and shank options.

1шт.
