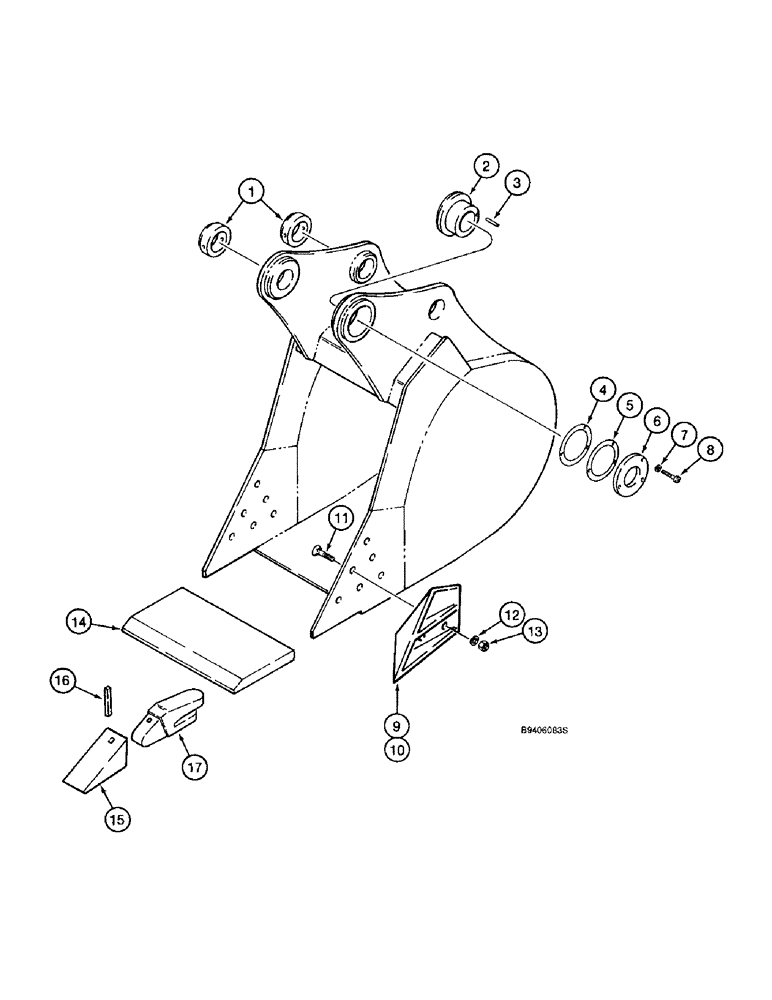

Запчасти Case 9040B (9-112) - CNTRL FBRCT0RS BCKTS,GEN PURP,STD CAP,LNG RCH(2511"ARM) (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.50 cu. yd, assembly, general purpose, standard capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.64 cu. yd, assembly, general purpose, standard capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5teeth, 0.78 cu. yd, assembly, general purpose, standard capacity, Includes: Ref. 1 - 13

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122700A1

RING

BUSHING - bucket, with locking collar, assembly, general purpose, standard capacity

2шт.

2

122696A1

BUSHING

- bucket, adjustable, assembly, general purpose, standard capacity, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, bucket assembly, general purpose, standard capacity

1шт.

4

122697A1

SHIM

- plate mounting, 0.039 inch thick, bucket assembly, general purpose, standard capacity

1шт.

5

122698A1

SHIM

- plate mounting, 0.02 inch thick, bucket assembly, general purpose, standard capacity

1шт.

6

122699A1

RETAINER

PLATE - bushing, bucket assembly, general purpose, standard capacity

1шт.

7

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm, Bucket assembly, general purpose, standard capacity

3шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9, bucket assembly, general purpose, standard capacity

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch, bucket assembly, general purpose, standard capacity, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side, bucket assembly, general purpose, standard capacity

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side, bucket assembly, general purpose, standard capacity

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, grade 8, bucket assembly, general purpose, standard capacity

6шт.

12

392-21088

LOCK WASHER,7/8"

bucket assembly, general purpose, standard capacity 7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

Bucket assembly, general purpose, standard capacity 7/8"-9, G8

6шт.

14

125015A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 610 mm (24 inch) bucket, standard capacity

1шт.

14

125016A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 762 mm (30 inch) bucket, standard capacity

1шт.

125017A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 914 mm (36 inch) bucket, standard capacity

1шт.

15

122665A1

TOOTH

- standard point, cutting edge, standard capacity

1шт.

16

N14173

PIN,12.7mm OD x 76.2mm L

- flex, point, cutting edge, standard capacity

1шт.

17

122667A1

BUCKET TOOTH SHANK

SHANK - tooth, cutting edge, standard capacity

1шт.
