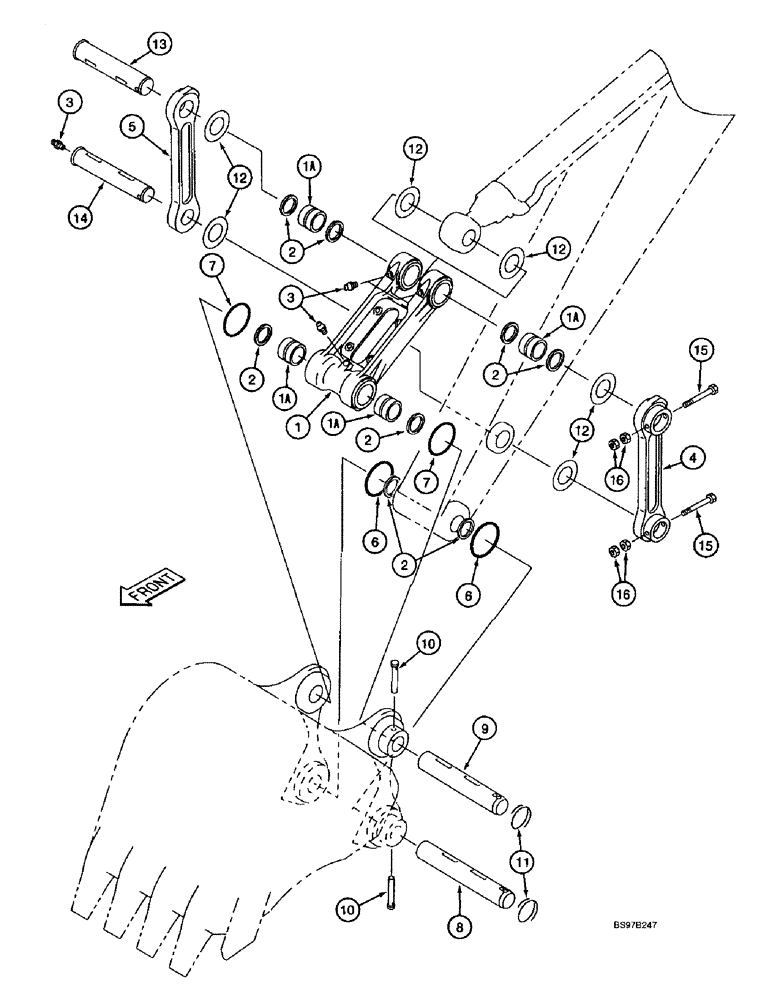

Запчасти Case 9040B (9-106) - ARM LINKAGE, LONG REACH (25 FT. 11 INCH) ARM ONLY (09) - CHASSIS

1

164439A1

POWER ARM

LINK ASSEMBLY - bucket, Includes: Ref. 2

1шт.

1a

160724A1

BUSHING,65mm ID x 80mm OD x 65mm L

- steel, special

4шт.

2

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

- dust

6шт.

3

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

4

163852A1

LINKAGE YOKE

LINK - arm, left-hand

1шт.

5

163851A1

LINKAGE YOKE

LINK - arm, right-hand

1шт.

6

160402A1

O-RING

- grease seal

2шт.

7

153687A1

O-RING,95mm ID x 7mm OD

- grease

2шт.

8

153704A1

PIN

- attaching, Serial Range: bucket-boom

1шт.

9

153705A1

PIN

- attaching, Serial Range: bucket-link

1шт.

10

153703A1

HEADED PIN,16mm OD x 102mm L

PIN - clevis, bucket pins

2шт.

11

153639A1

RING

- wire

2шт.

12

152661A1

SHIM,66mm ID x 120mm OD x 1.2mm Thk

- .05 inch thick, link arms

6шт.

13

160725A1

PIN,65mm OD x 368mm L

- attaching, special, bucket link to cylinder and link arms

1шт.

14

160726A1

PIN,65mm OD x 368mm L

- attaching, special, link, Serial Range: arms-arm

1шт.

15

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

2шт.

16

829-13416

NUT,M16 x 1.5, Cl 10

- hex, 16 mm - 1.5, class 10

4шт.
