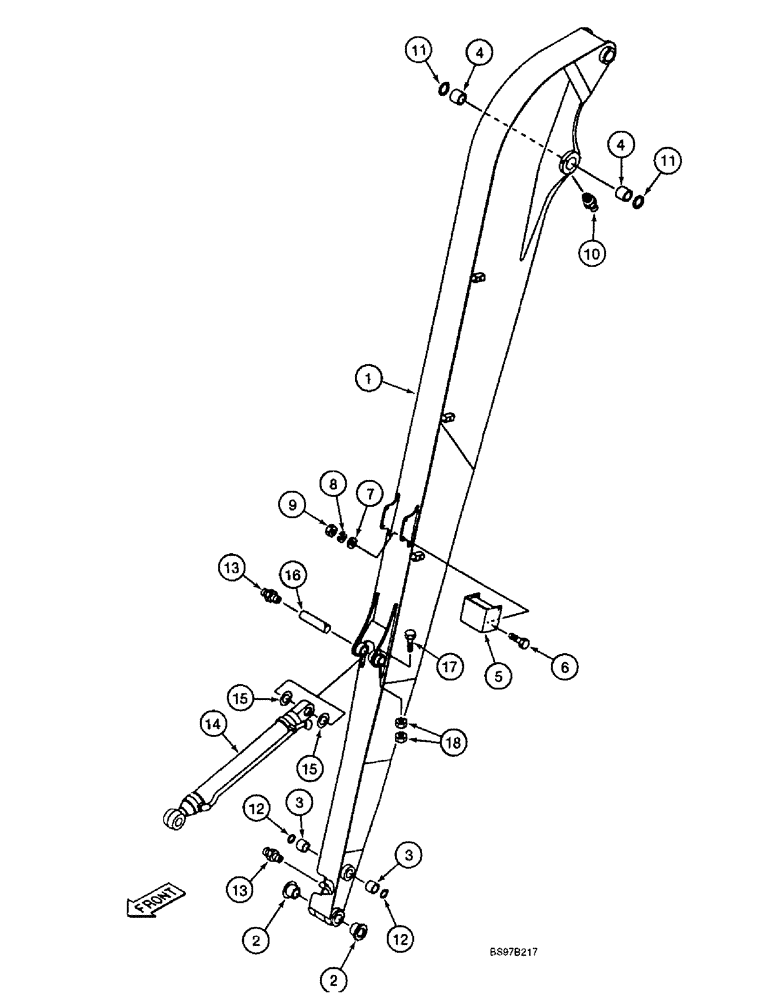

Запчасти Case 9040B (9-102) - ARM AND CYLINDER, LONG REACH 7.9 M (25 FT. 11 INCH) ARM (09) - CHASSIS

1

165326A1

DIPPER

ARM - 7.9 M (25 ft 11 inch) long, with bushings, replaces 164421A1, Includes: Ref. 2 - 4

1шт.

2

160723A1

RING,65mm ID x 133mm OD x 75mm L

BUSHING - special, Serial Range: arm-bucket

2шт.

3

150128A1

BUSHING,65mm ID x 80mm OD x 50mm L

- steel, Serial Range: arm-link

2шт.

4

159448A1

BUSHING,100mm ID x 115mm OD x 100mm L

- boom

2шт.

5

164395A1

COVER

- retaining

1шт.

6

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

9

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

4шт.

10

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

1шт.

11

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

- dust

2шт.

12

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

- dust

2шт.

13

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

14

160752A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 95 (3-3/4) ID x 924 mm (36-3/8 inch) stroke, bucket, see parts list figure 8-183A

1шт.

15

160734A1

SHIM

- plate

2шт.

16

162773A1

PIN

- attaching, bucket cylinder

1шт.

17

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

1шт.

18

829-13416

NUT,M16 x 1.5, Cl 10

- hex, 16 mm - 1.5, class 10

2шт.
