(9-096) - BOOM LUBRICATION LINES, LONG REACH (25 FT. 11 INCH ARM) MODELS ONLY

Запчасти Case 9040B (9-096) - BOOM LUBRICATION LINES, LONG REACH (25 FT. 11 INCH ARM) MODELS ONLY (09) - CHASSIS

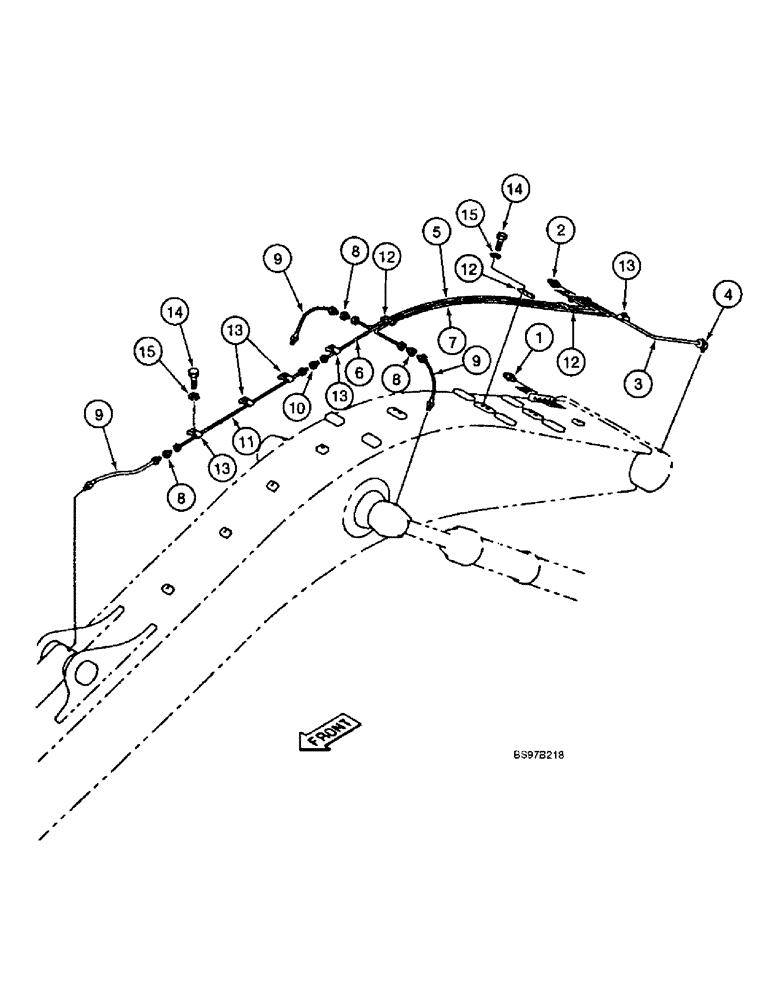

Схема запчастей Case 9040B - (9-096) - BOOM LUBRICATION LINES, LONG REACH (25 FT. 11 INCH ARM) MODELS ONLY (09) - CHASSIS
15
12
15
1
8
12
9
12
2
11
6
5
7
14
10
9
8
8
3
13
4
13
13
13
14
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

2

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

4шт.

3

160468A1

TUBE ASSY.,521.5, 229.9 mm Length

TUBE - grease

1шт.

4

152627A1

ELBOW

- 90 degree, special

1шт.

5

158649A1

TUBE

- grease

1шт.

6

162858A1

TUBE

- grease

1шт.

7

159467A1

TUBE

- grease

1шт.

8

152032A1

UNION

CONNECTOR - straight

3шт.

9

152776A1

HOSE,560.00 mm

560.00 mm

3шт.

10

153694A1

UNION

CONNECTOR - straight, special

1шт.

11

162859A1

TUBE

- grease

1шт.

12

151497A1

CLAMP

- lubrication line, triple type

3шт.

13

151504A1

CLAMP

- lubrication line, single type

5шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

11шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

11шт.
