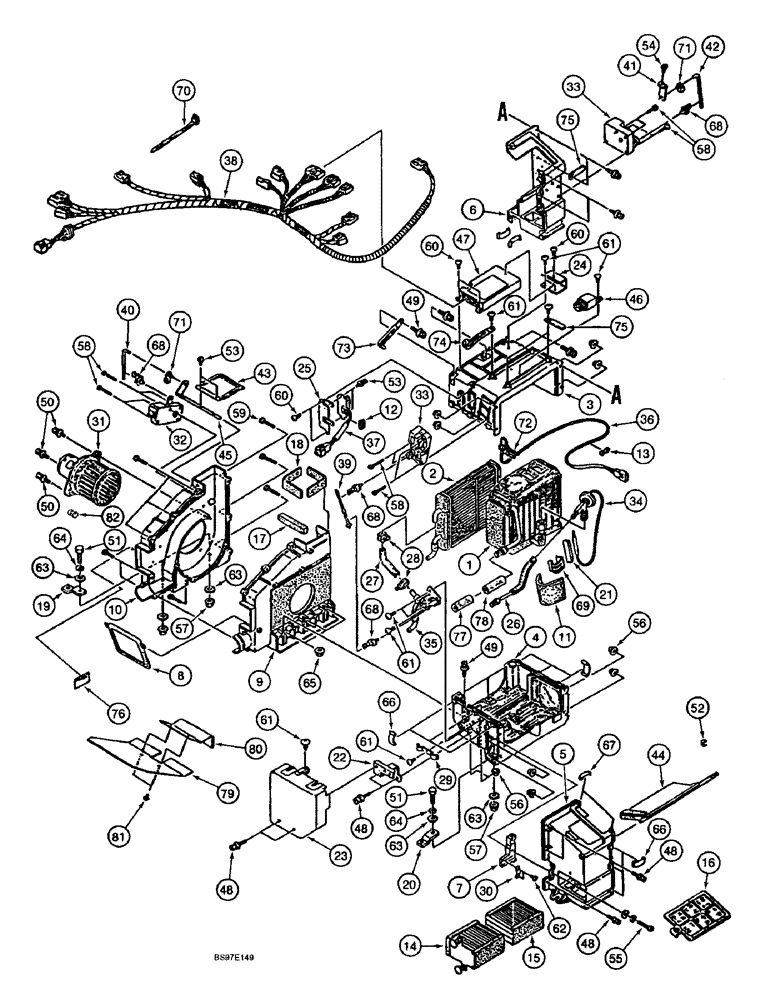

Запчасти Case 9040B (9-087A) - AIR CONDITIONER ASSEMBLY AND MOUNTING (09) - CHASSIS

162048A1

AIR CONDITIONER

ASSEMBLY - cab (manufacturers part number TUA-R372S), if used, Includes: Ref. 1 - 82

1шт.

163861A1

AIR CONDITIONER

ASSEMBLY - cab (manufacturers part number TUA-R710S), if used, Includes: Ref. 1 - 82

1шт.

164732A1

AIR CONDITIONER

ASSEMBLY - cab (manufacturers part number TUA-R711S), if used, Includes: Ref. 1 - 82

1шт.

1

163175A1

EVAPORATOR

- air conditioning

1шт.

2

163176A1

HEATER

CORE - heater

1шт.

3

163177A1

HOOD

COVER - evaporator, upper

1шт.

4

163178A1

COVER

- evaporator, lower

1шт.

5

163179A1

HOOD

COVER - air intake, front

1шт.

6

163180A1

HOOD

COVER - air intake, rear

1шт.

7

163181A1

HOOD

HOLDER - tube

1шт.

8

163182A1

COVER

- defrost

1шт.

9

163183A1

HOUSING

- blower motor, inner

1шт.

10

163223A1

HOUSING

- blower motor, outer

1шт.

11

163224A1

INSULATOR

PAD - insulation

1шт.

12

163225A1

GROMMET

- rubber

1шт.

13

163226A1

GROMMET

- rubber

1шт.

14

163184A1

ELEMENT

FILTER - air, outer, cab

1шт.

15

163185A1

ELEMENT

FILTER - air, inner, cab

1шт.

16

163186A1

FILTER

- recirculation, cab

1шт.

17

163169A1

PACKING

PAD - foam

1шт.

18

163170A1

GASKET

- housing, blower motor

2шт.

19

163227A1

BRACKET

- mounting, housing

2шт.

20

163228A1

BRACKET

- mounting, lower evaporator cover

1шт.

21

163187A1

HOLDER

- thermocouple

1шт.

22

163229A1

BRACKET

- mounting, tube cover

1шт.

23

163230A1

COVER

- tube

1шт.

24

163231A1

BRACKET

- mounting, controller

1шт.

25

163232A1

BRACKET

- mounting, resistor and harness, used with 162048A1and 163861A1

1шт.

25

165083A1

BRACKET

- mounting, resistor and harness, used with 164732A1

1шт.

26

163188A1

TUBE ASSY.

TUBE - suction

1шт.

27

163171A1

HEATER HOSE

1шт.

28

163220A1

MOUNTING CLIP

CLAMP - adjustable, hose

2шт.

29

163221A1

COLLAR

CLAMP - tube

1шт.

30

163222A1

BRACKET

CLAMP - tube

1шт.

31

163189A1

MOTOR, ELECTRIC

MOTOR - blower, cab

1шт.

32

163190A1

ACTUATOR

- damper, blower motor housing

1шт.

33

163191A1

ACTUATOR

- damper, one located on rear intake cover and one located on upper evaporator cover

2шт.

34

163174A1

VALVE

- expansion

1шт.

35

163192A1

VALVE

- water

1шт.

36

163233A1

ELECTRICAL WIRE

CABLE - thermistor

1шт.

37

163234A1

RESISTOR

- cab, used with 162048A1 and 163861A1

1шт.

37

165084A1

RESISTOR

- cab, used with 164732A1

1шт.

38

163193A1

HARNESS

- main, cab

1шт.

39

163194A1

ROD

- actuator, water valve

1шт.

40

163244A1

ROD

- actuator, damper

1шт.

41

163240A1

LEVER

- damper

1шт.

42

163241A1

ROD

- actuator, damper

1шт.

43

163195A1

VENT

DAMPER - blower motor

1шт.

44

163196A1

VENT

DAMPER - air intake

1шт.

45

163242A1

SHAFT

- damper

1шт.

46

163243A1

RELAY

- cab

1шт.

47

163245A1

CONTROL UNIT

BOX - control

1шт.

48

163197A1

BOLT,Sems

BOLT - hex socket, special

11шт.

49

163198A1

BOLT,Sems

BOLT - hex socket, special

6шт.

50

163199A1

BOLT

BOLT - hex socket, special

3шт.

51

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 25 mm, class 12.9

3шт.

52

163200A1

RING, LOCKING

RING - retaining

1шт.

53

163201A1

SCREW

- special

4шт.

54

163202A1

SCREW

- special

1шт.

55

163203A1

SCREW

- special

1шт.

56

163204A1

FLANGE NUT

- hex flange, special

10шт.

57

163205A1

FLANGE NUT

- hex flange, special

3шт.

58

163206A1

SELF-TAP SCREW

- self-tapping, special, used with 162048A1

12шт.

58

165813A1

SCREW

- self-tapping, special, used with 163861A1 and 164732A1

12шт.

59

163207A1

SELF-TAP SCREW

- self-tapping, special, used with 162048A1

9шт.

59

165814A1

SCREW

- self-tapping, special, used with 163861A1 and 164732A1

9шт.

60

163208A1

SELF-TAP SCREW

- self-tapping, special, used with 162048A1

5шт.

60

165812A1

SCREW

- self-tapping, special, used with 163861A1 and 164732A1

5шт.

61

163209A1

SELF-TAP SCREW

- self-tapping, special, used with 162048A1

11шт.

61

165815A1

SELF-TAP SCREW

- self-tapping, special, used with 163861A1 and 164732A1

11шт.

62

163210A1

SELF-TAP SCREW

- self-tapping, special, used with 162048A1

2шт.

62

165816A1

SCREW

- self-tapping, special, used with 163861A1 and 164732A1

2шт.

64

892-11010

LOCK WASHER,M10

3шт.

65

163211A1

FLANGE NUT

- hex flange, special

3шт.

66

163212A1

CLAMP

- cover

11шт.

67

163213A1

CLAMP

- damper

2шт.

68

163214A1

CLAMP

- rod

4шт.

69

163235A1

CLASP

BRACKET - thermocouple

1шт.

70

163215A1

MOUNTING CLIP

STRAP - tie

1шт.

71

163236A1

HOLDER

RETAINER - actuator rod

2шт.

72

163237A1

HOLDER

RETAINER - thermocouple

1шт.

73

163216A1

CLAMP

- wire harness

1шт.

74

163217A1

MOUNTING CLIP

CLAMP - wire harness

1шт.

75

163218A1

CLAMP

- cover

3шт.

76

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

77

163172A1

INSULATOR

INSULATION - tube

1шт.

78

163173A1

INSULATOR

INSULATION - tube

1шт.

79

163238A1

DEFLECTOR

LOUVER - main

1шт.

80

163239A1

LARGE PLATE

PLATE - louver

1шт.

81

163219A1

BOLT

BOLT - hex head, special

2шт.

82

165817A1

GROMMET

- rubber, used with 163861A1 and 164732A1

1шт.

63

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

6шт.
