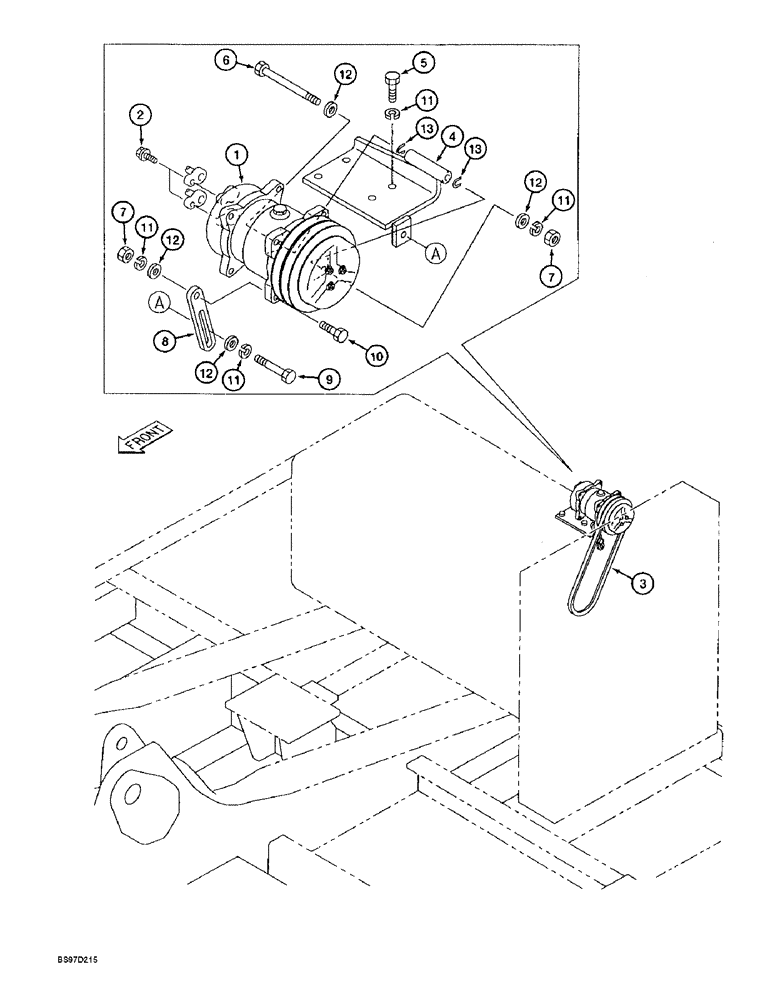

Запчасти Case 9040B (9-084) - AIR CONDITIONER COMPRESSOR MOUNTING (09) - CHASSIS

1

164730A1

COMPRESSOR

- air conditioner, replaces 162925A1

1шт.

2

162457A1

SPECIAL BOLT,Spcl

BOLT - special

2шт.

3

162926A1

V-BELT,12.50 mm W x 1118.00 mm L

1шт.

4

162865A1

BRACKET

- compressor mounting

1шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

8шт.

6

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

- hex, 10 - 1.5 x 130 mm, class 10.9

1шт.

8

162879A1

BRACE

- compressor adjusting

1шт.

10

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

1шт.

11

892-11010

LOCK WASHER,M10

4шт.

13

164620A1

SHIM

- U-shaped, 0.3 mm thick

2шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.
