Запчасти Case 9040B (9-068) - CAB WINDOWS AND SEALS (09) - CHASSIS

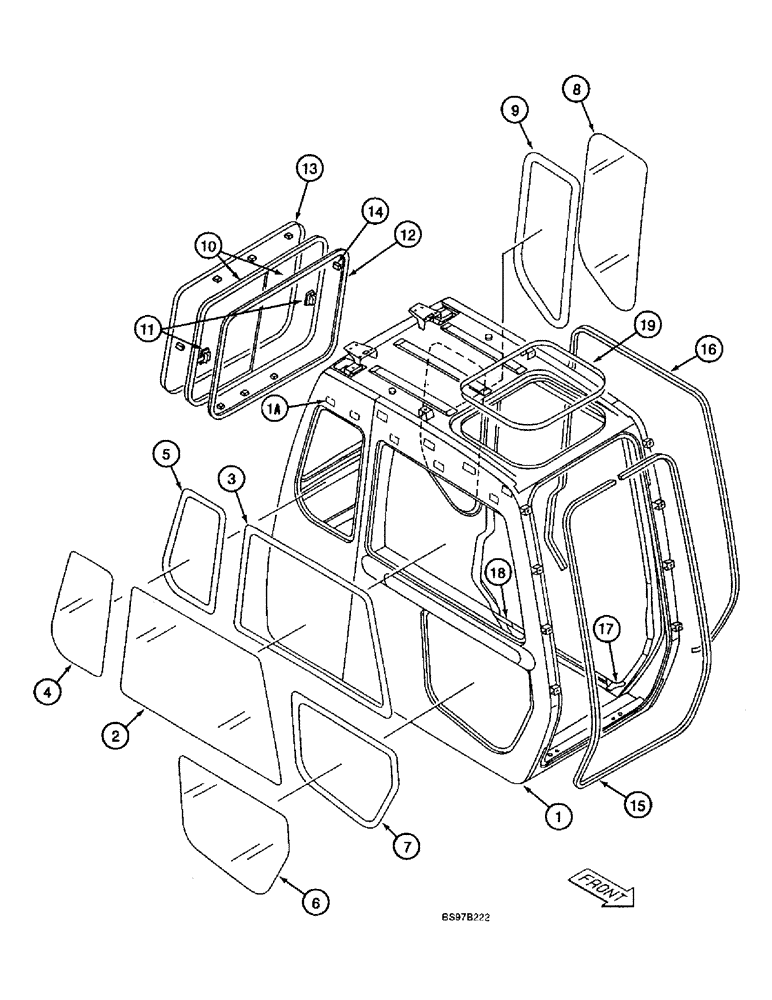

Схема запчастей Case 9040B - (9-068) - CAB WINDOWS AND SEALS (09) - CHASSIS
13
17
6
14
1a
7
15
11
1
18
8
18
10
5
12
19
9
2
4
3

Артикул

Название

Примечание

Количество

164948A1

CAB

ASSEMBLY - operator's, replaces 161802A1, cab assembly, includes all parts on figures 9-68 thru 9-80, Includes: Ref. 1 - 19

1шт.

1

164949A1

CAB

- operator's, replaces 162169A1, body assembly, Includes: Ref. 1A - 19

1шт.

1a

164959A1

NUT

- special

19шт.

2

162175A1

GLASS

- tempered, right-hand, upper, center

1шт.

3

161325A1

SEALING STRIP

STRIP - weather

1шт.

4

162177A1

GLASS

- tempered, right-hand, upper, rear

1шт.

5

161326A1

SEAL, GLASS

STRIP - weather

1шт.

6

162176A1

GLASS

- tempered, right-hand, lower, front

1шт.

7

161327A1

SEAL, GLASS

STRIP - weather

1шт.

8

162179A1

GLASS

- tempered, left-hand, upper, rear

1шт.

9

161328A1

SEAL, GLASS

STRIP - weather

1шт.

162168A1

WINDOW ASSY

SASH ASSEMBLY - rear window, Includes: Ref. 10 and 11

1шт.

10

162178A1

GLASS

WINDOW - plastic

2шт.

11

162829A1

LOCK

- window, rear windows

2шт.

12

161329A1

SEAL

- cushion, window

1шт.

13

161330A1

RUBBER BLOCK

TRIM - special, window

1шт.

14

159543A1

SPACER

- sash

8шт.

15

161331A1

SEAL

SEAL - rubber, front window

1шт.

16

161332A1

DOOR SEAL

SEAL - rubber, door

1шт.

17

161333A1

CAP

- end, front

1шт.

18

161334A1

CAP

- end, rear

1шт.

19

161335A1

SEAL

SEAL - rubber, roof

1шт.

Выбрано товаров: 22
