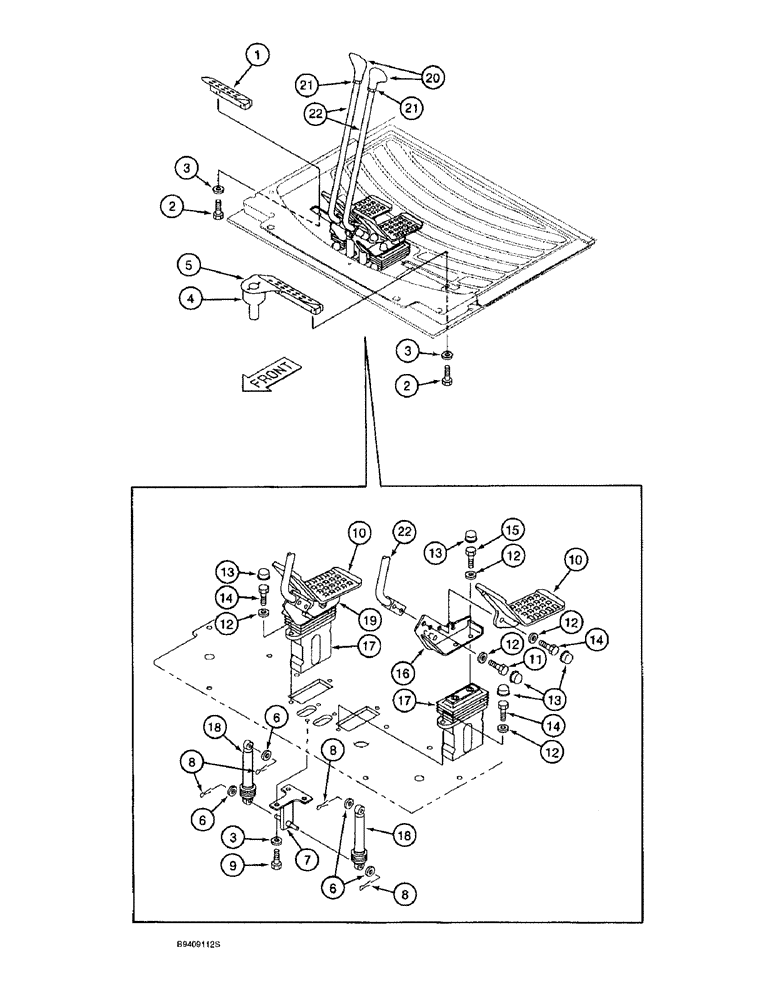

Запчасти Case 9040B (9-060) - TRACK DRIVE CONTROLS, PEDALS AND LEVERS, PRIOR TO P.I.N. DAC04#2001 (09) - CHASSIS
17
8
2
5
16
2
14
15
8
14
11
13
10
1
12
6
6
10
12
12
19
21
3
4
8
3
14
21
16
7
12
9
22
17
3
6
13
22
12
13
20
18
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
2
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 25 mm, class 10.9
4шт.
9
BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 16 mm, class 10.9
3шт.
11
150555A1
BOLT,High Strength, Hex, M10 x 30mm
BOLT - hex, 10 - 1.5 x 30 mm, class 10.9
4шт.
14
150552A1
BOLT,High Strength, Hex, M10 x 25mm
BOLT - hex, 10 - 1.5 x 25 mm, class 10.9
10шт.
15
150548A1
BOLT,High Strength, Hex, M10 x 20mm
BOLT - hex, 10 - 1.5 x 20 mm, class 10.9
6шт.
17
159257A1
CONTROL BLOCK
VALVE ASSEMBLY - remote control, see parts list figure 8-102
3шт.
