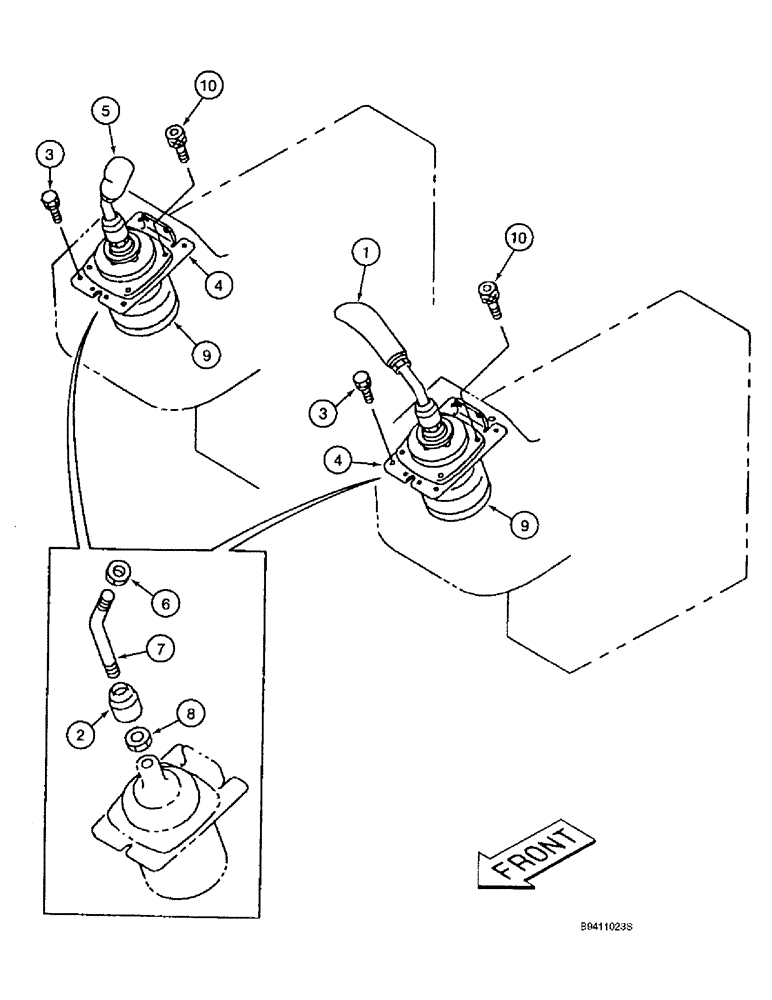

Запчасти Case 9040B (9-034) - REMOTE CONTROL VALVE ASSEMBLIES AND MOUNTING (09) - CHASSIS

1

159270A1

KNOB

- left-hand, with horn button, left hand

1шт.

2

151302A1

CAP

BOOT - dust protection

2шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

4шт.

4

159268A1

SUPPORT

BRACKET - mounting

2шт.

5

159486A1

KNOB

- right hand

1шт.

#5 - PER GLEN RICHMOND - SERVICE - 159486A1 KNOB INCLUDES TWO SWITCHES - FRONT IS POWER BOOST AND TOP IS IDLE

1шт.

6

159487A1

NUT

- hex, special

2шт.

7

159269A1

LEVER

- control

2шт.

8

151154A1

JAM NUT

- hex

2шт.

9

159700A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, see parts list figure 8-130

2шт.

10

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 25 mm, class 12.9

8шт.
