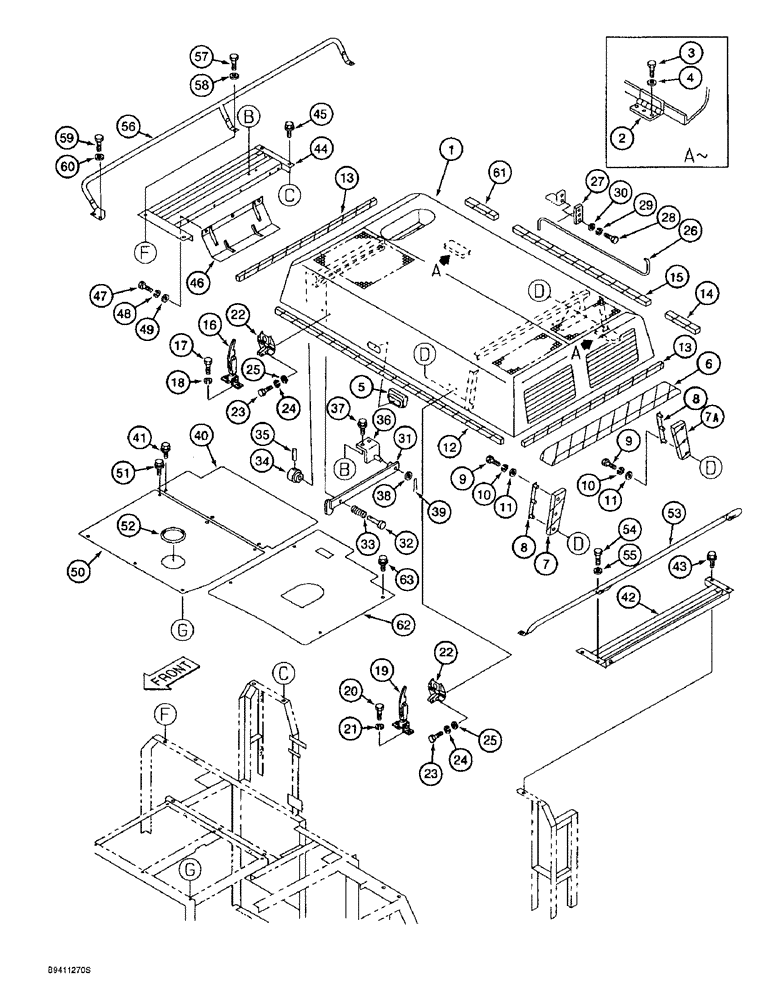

Запчасти Case 9040B (9-026) - UPPER STRUCTURE, HOOD, COVERS AND INSULATION (09) - CHASSIS

160346A1

HOOD ASSY.

HOOD ASSEMBLY - engine, Includes: Ref. 1 and 2, Serial Range: -DAC04#2001

1шт.

164286A1

SHEET

HOOD ASSEMBLY - engine, Includes: Ref. 1 and 2, Start Serial: DAC04#2001

1шт.

1

NSS

NOT SOLD SEPARAT

HOOD - engine

1шт.

2

152819A1

HINGE

- hood

2шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

6шт.

4

150811A1

WASHER

- flat, special, 12 mm

6шт.

5

150484A1

HANDLE

- recessed, hood assembly

1шт.

6

159344A1

NOISE PROTECTION

SEAL - cushion

1шт.

7

159136A1

SEAL

- cushion, Serial Range: -DAC04#2001

1шт.

7

165070A1

SEAL

- cushion, Start Serial: DAC04#2001

1шт.

7a

159137A1

SEAL

- cushion

1шт.

8

159123A1

RING

RETAINER - seal

2шт.

9

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, 8 - 1.25 x 45 mm, class 10.9

6шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

12

159131A1

RUBBER BLOCK

CUSHION - sponge rubber

1шт.

13

159130A1

RUBBER BLOCK

CUSHION - sponge rubber

2шт.

14

159133A1

RUBBER BLOCK

CUSHION - sponge rubber

1шт.

15

159134A1

ADHESIVE STRIP

CUSHION - sponge rubber

1шт.

16

152423A1

LATCH

CATCH - hood assembly, right-hand

1шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

19

150790A1

LATCH

CATCH - hood assembly, left-hand

1шт.

20

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

21

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

22

150785A1

STOP LOCK

LATCH - door assembly

2шт.

23

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

26

159125A1

SPRING

- torsion-type, hood assembly

1шт.

27

159126A1

BRACKET

- torsion spring

1шт.

28

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

31

159128A1

STAY

SUPPORT - hood assembly

1шт.

32

159127A1

HEADED PIN

PIN - clevis

1шт.

33

159877A1

SPRING

- compression

1шт.

34

159129A1

SPACER

COLLAR - special

1шт.

35

738-5332

PIN, ROLL

PIN - roll, 3 x 32 mm, collar

1шт.

36

159124A1

BRACKET

- hood support

1шт.

37

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

38

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

39

160762A1

COTTER PIN

CLIP - hair pin

1шт.

40

159103A1

COVER

- upper structure, top

1шт.

41

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

3шт.

42

160350A1

FRAME

COVER - upper structure, left-hand, front, Serial Range: -DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

42

164285A1

FRAME

COVER - upper structure, left-hand, front, Start Serial: DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

43

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

44

160351A1

FRAME

COVER - upper structure, right-hand, rear

1шт.

45

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

46

159092A1

COVER

- upper structure, filler, right-hand, rear

1шт.

47

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

3шт.

48

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

50

159112A1

COVER

- upper structure, center, front

1шт.

51

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

6шт.

52

152804A1

GROMMET

- rubber

1шт.

53

159121A1

STAY

RAIL - hand, upper structure, filler, right-hand, center

1шт.

54

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

3шт.

55

150811A1

WASHER

- flat, special, 12 mm

3шт.

56

159122A1

STAY

RAIL - hand, upper structure, right-hand

1шт.

57

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

58

150811A1

WASHER

- flat, special, 12 mm

2шт.

59

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

2шт.

60

150811A1

WASHER

- flat, special, 12 mm

2шт.

61

159132A1

RUBBER BLOCK

CUSHION - sponge rubber

1шт.

62

159111A1

COVER

- upper structure, center, left-hand, Serial Range: -DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

62

164288A1

COVER

- upper structure, center, left-hand, Start Serial: DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

63

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

5шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

6шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

49

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.
