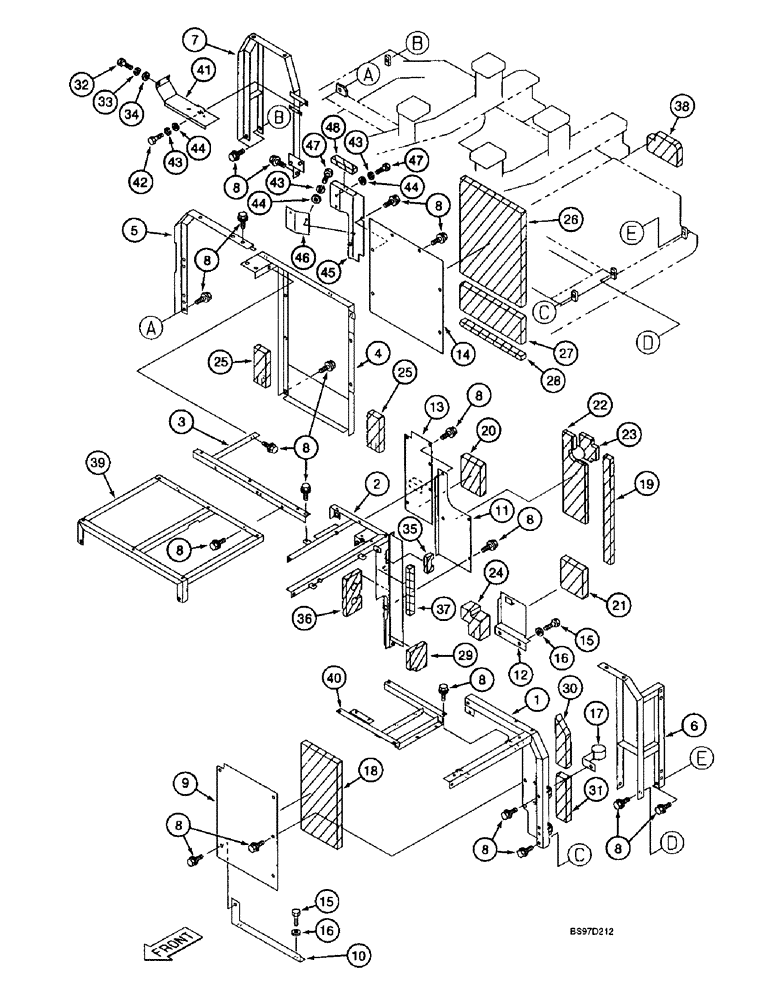

Запчасти Case 9040B (9-022) - UPPER STRUCTURE, FRAMES, COVERS AND INSULATION, P.I.N. DAC04#2001 AND AFTER (09) - CHASSIS

1

160758A1

FRAME

- upper structure, left-hand

1шт.

2

164290A1

FRAME

- upper structure, left-hand

1шт.

3

159864A1

FRAME

- upper structure, center

1шт.

4

164303A1

FRAME

- upper structure, center

1шт.

5

159855A1

FRAME

- upper structure, right-hand

1шт.

6

160624A1

FRAME

- upper structure, left-hand

1шт.

7

160759A1

FRAME

- upper structure, right-hand

1шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

69шт.

9

164289A1

COVER

- center, left-hand

1шт.

10

159108A1

COVER

FRAME - center, left-hand

1шт.

11

159106A1

COVER

- center, left-hand

1шт.

12

159107A1

COVER

- center, left-hand

1шт.

13

164287A1

COVER

- center, left-hand

1шт.

14

164291A1

COVER

- center, special

1шт.

15

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

9шт.

16

150811A1

WASHER

- flat, special, 12 mm

18шт.

17

159871A1

HOLDER

- special

1шт.

18

159165A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

19

159158A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

20

164293A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

21

159157A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

22

159156A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

23

159151A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

24

159142A1

SEAL

- cushion

1шт.

25

159153A1

NOISE PROTECTION

INSULATION - acoustic

2шт.

26

164292A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

27

159155A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

28

159154A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

29

165474A1

SEAL

- cushion

1шт.

30

159166A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

31

159145A1

RUBBER BLOCK

INSULATION - acoustic

1шт.

32

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

15шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

27шт.

35

165472A1

SEAL

- cushion

1шт.

36

165473A1

SEAL

- cushion

1шт.

37

165471A1

SEAL

- cushion

1шт.

38

159143A1

SEAL

- cushion

1шт.

39

159861A1

FRAME

- upper structure, center

1шт.

40

160354A1

FRAME

- upper structure, left-hand

1шт.

41

159093A1

COVER

- right-hand

1шт.

42

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

1шт.

43

892-11010

LOCK WASHER,M10

3шт.

45

164301A1

COVER

- center, right-hand

1шт.

46

164302A1

COVER

- center, right-hand

1шт.

47

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

48

165476A1

SEAL

- cushion

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

23шт.

44

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

5шт.
