Запчасти Case 9040B (9-018) - COUNTERWEIGHT, LONG REACH (25 FT. 11 INCH ARM) MODELS (09) - CHASSIS

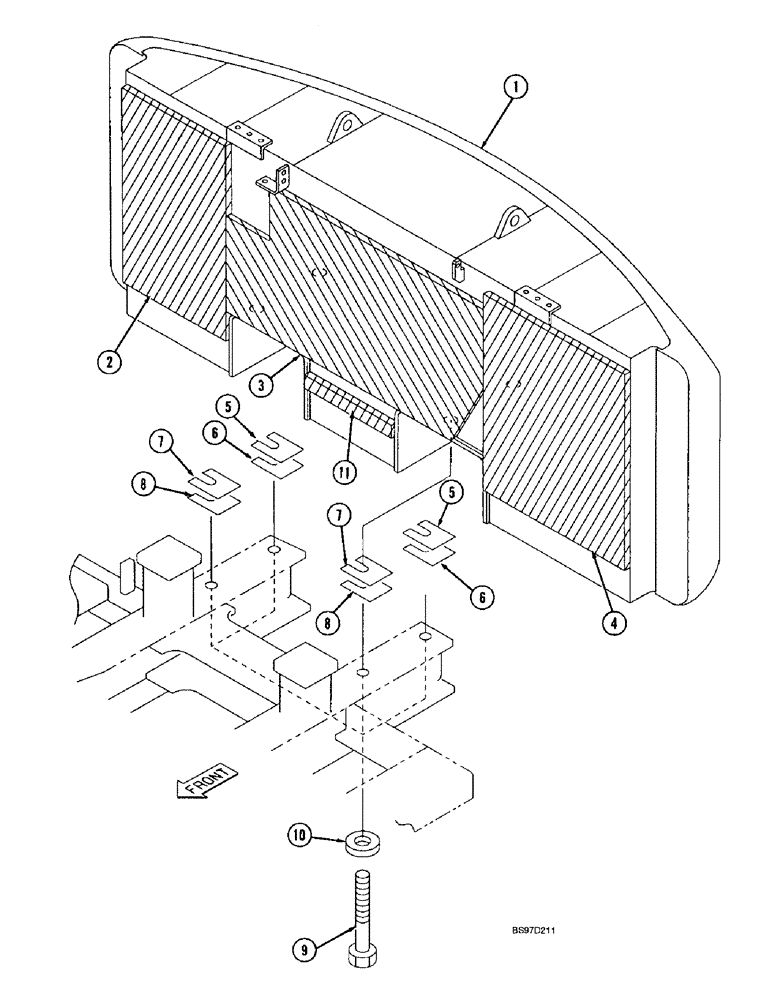

Схема запчастей Case 9040B - (9-018) - COUNTERWEIGHT, LONG REACH (25 FT. 11 INCH ARM) MODELS (09) - CHASSIS
9
4
8
8
2
6
7
5
1
6
3
10
5
11
7

Артикул

Название

Примечание

Количество

1

164409A1

WEIGHT PACKAGE

COUNTERWEIGHT - 6550 kgs (14443 lbs)

1шт.

2

158939A1

NOISE PROTECTION

INSULATION - acoustic, right-hand

1шт.

3

164410A1

NOISE PROTECTION

INSULATION - acoustic, upper center

1шт.

4

158940A1

NOISE PROTECTION

INSULATION - acoustic, left-hand

1шт.

5

158933A1

SHIM

- plate, 0.8 mm (0.03 inch) thick

2шт.

6

158934A1

SHIM

- plate, 1.2 mm (0.05 inch) thick

2шт.

7

158935A1

ADJUSTING PLATE

SHIM - plate, 2.3 mm (0.09 inch) thick

2шт.

8

158936A1

ADJUSTING PLATE

SHIM - plate, 4.5 mm (0.18 inch) thick

2шт.

9

159427A1

BOLT,Spcl, Hex, M30 x 290mm

BOLT - special

4шт.

10

163858A1

WASHER

- high strength, replaces 157545A1, washer

4шт.

11

158941A1

NOISE PROTECTION

INSULATION - acoustic, lower center

1шт.

Выбрано товаров: 11
