(9-014) - TURNTABLE ACCESS COVERS, P.I.N. DAC04#2001 AND AFTER

Запчасти Case 9040B (9-014) - TURNTABLE ACCESS COVERS, P.I.N. DAC04#2001 AND AFTER (09) - CHASSIS

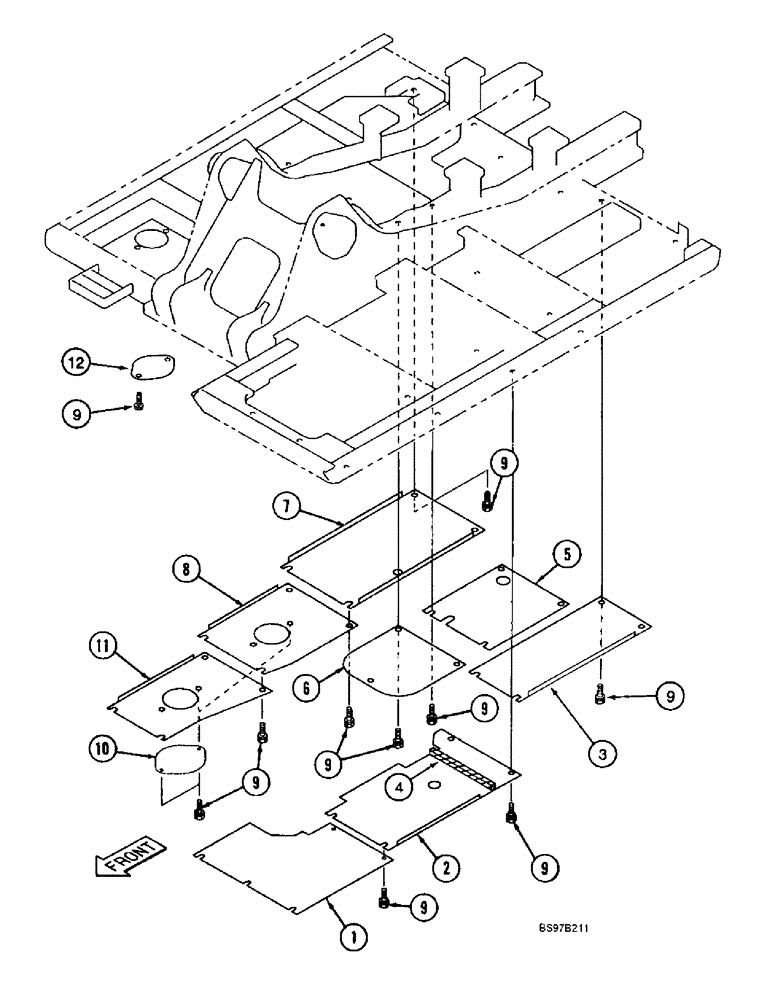

Схема запчастей Case 9040B - (9-014) - TURNTABLE ACCESS COVERS, P.I.N. DAC04#2001 AND AFTER (09) - CHASSIS
7
2
9
9
1
11
9
3
9
10
5
6
9
9
12
9
9
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

165395A1

COVER

GUARD - turntable

1шт.

2

158943A1

COVER

GUARD - turntable

1шт.

3

164298A1

COVER

GUARD - turntable

1шт.

4

164300A1

SEAL

- turntable guard

1шт.

5

160622A1

COVER

GUARD - turntable

1шт.

6

158946A1

COVER

GUARD - turntable

1шт.

7

158947A1

COVER

GUARD - turntable

1шт.

8

159774A1

COVER

GUARD - turntable

1шт.

9

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

BOLT - special

32шт.

10

158950A1

COVER

- access

2шт.

11

158949A1

COVER

GUARD - turntable

1шт.

12

164297A1

COVER

- access

1шт.
