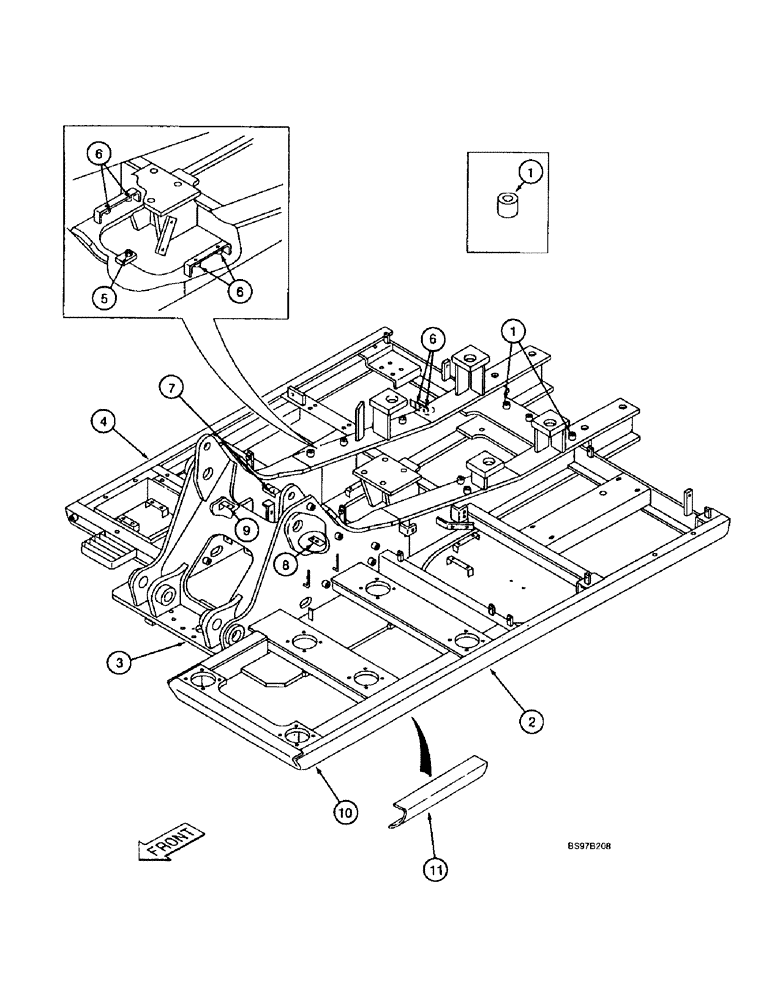

Запчасти Case 9040B (9-006) - TURNTABLE, PRIOR TO P.I.N. DAC04#2001 (09) - CHASSIS

1

158811A1

BOSS

- special

40шт.

2

161020A1

PLATFORM

- turntable, left-hand, no longer available, order Ref. 10, 161018A1 frame

1шт.

3

160341A1

FRAME

PLATFORM - boom mounting, no longer available, order Ref. 10, 161018A1 frame

1шт.

4

161019A1

PLATFORM

- turntable, right-hand, no longer available, order Ref. 10, 161018A1 frame

1шт.

5

158918A1

SPECIAL NUT

- special

1шт.

6

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

6шт.

7

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

3шт.

8

162866A1

BAR

- base, machines with load holding control devices

1шт.

9

164904A1

BAR

- base, machines with load holding control devices, replaces 162867A1

1шт.

10

161018A1

FRAME ASSY

FRAME - revolving, complete

1шт.

11

159752A1

ANGLE BAR

GUARD - formed angle iron, frame repair

1шт.

Use repair guard on turntable sides. Guard is long enough to repair any side of the turntable. Cut and use the required length for the damaged side.

1шт.
