Запчасти Case 9040B (8-186) - SWING MOTOR ASSEMBLY (08) - HYDRAULICS

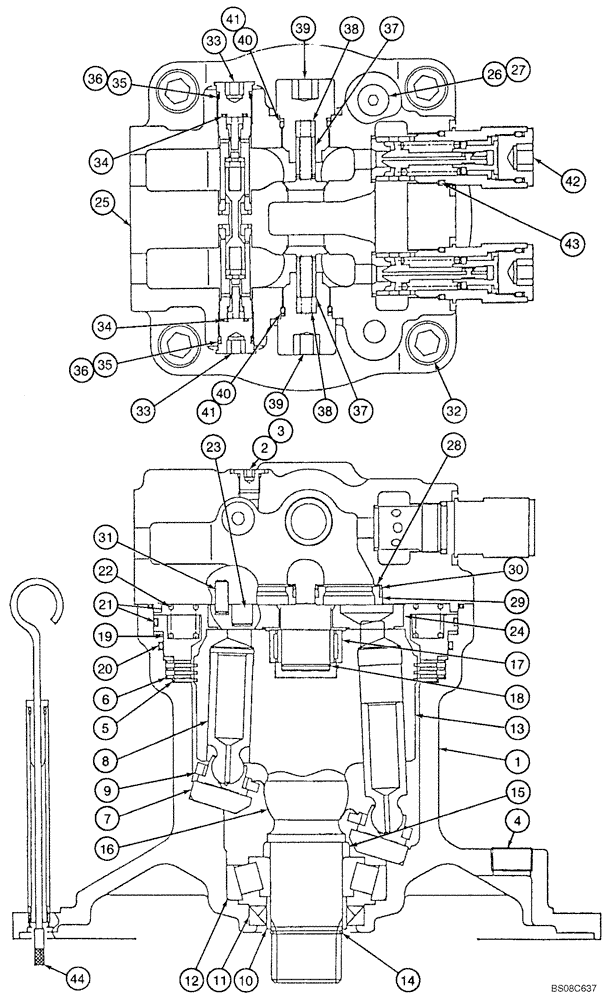

Схема запчастей Case 9040B - (8-186) - SWING MOTOR ASSEMBLY (08) - HYDRAULICS
20
1
7
40
9
15
2
8
37
40
43
31
10
35
5
33
19
34
14
38
34
41
12
4
44
33
30
32
28
22
13
39
36
6
42
36
27
41
29
18
3
37
39
38
23
26
24
21
16
11
25
35

Артикул

Название

Примечание

Количество

160151A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, without reduction gear, for all except long reach models, replaced by 165594A1 for service, Includes: Ref. 1 - 44

1шт.

165594A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, without reduction gear, for all except Long Reach models, replaces 160151A1, Includes: Ref. 1 - 44

1шт.

165622A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, without reduction gear, Long Reach models, Includes: Ref. 1 - 44

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - motor, Includes: Ref. 2 - 4

1шт.

2

160306A1

CAP

PLUG - port

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

4

160081A1

PLUG

- hex socket, special

1шт.

5

155619A1

PLATE

- friction

3шт.

6

155618A1

PLATE

- brake

3шт.

7

155616A1

PLATE

- cam

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

9

155617A1

PLATE

- return

1шт.

10

155620A1

SPACER

RING - wear

1шт.

11

155106A1

OIL SEAL

- oil

1шт.

12

156133A1

TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W

- roller

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY - cylinder and shaft, (no serviceable parts)

1шт.

14

155613A1

RING, LOCKING

RING - lock

1шт.

15

155615A1

COLLAR

- shaft, 160151A1 motor

1шт.

15

165643A1

COLLAR

- shaft, 165594A1 or 165622A1 motor

1шт.

16

156080A1

SPRING

- cylinder block, cylinder block

1шт.

17

156134A1

NEEDLE BEARING,Needle, 30mm ID x 45mm OD x 20mm W

- needle, 160151A1 motor

1шт.

17

165647A1

NEEDLE BEARING

BEARING - needle, 165594A1 or 165622A1 motor

1шт.

18

155614A1

RING, LOCKING

RING - retaining

1шт.

19

160206A1

PISTON

- brake mechanism

1шт.

20

155198A1

O-RING

- small, Serial Range: piston-housing

1шт.

21

155199A1

O-RING

- large, Serial Range: piston-housing

2шт.

22

156082A1

SPRING

- brake, brake

18шт.

23

160205A1

PISTON

- valve

2шт.

24

160327A1

LARGE PLATE

PLATE - port

1шт.

25

NSS

NOT SOLD SEPARAT

COVER - swing motor housing, Includes: Ref. 26 - 31

1шт.

26

160306A1

CAP

PLUG - port

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

2шт.

28

160268A1

SPRING

- cylinder

4шт.

29

160045A1

BUSHING

- plate

4шт.

30

160204A1

RING

- Teflon

4шт.

31

160101A1

COTTER PIN

PIN - dowel

2шт.

32

863-16060

HEX SOC SCREW,M16 x 60mm, Cl 12.9

SCREW, Hex Soc Hd, M16 x 60, 12.9

4шт.

33

160149A1

BY-PASS VALVE

VALVE - bypass

2шт.

34

154471A1

O-RING

- valve end seal

2шт.

35

154487A1

O-RING

- plug

2шт.

36

153970A1

BACK-UP RING

RING - backup

2шт.

37

155944A1

PLUNGER

- check valve

2шт.

38

156079A1

SPRING

- compression, check valve

2шт.

39

156305A1

CAP

PLUG - port, check valve

2шт.

40

154515A1

O-RING

- plug

2шт.

41

153991A1

BACK-UP RING

RING - backup

2шт.

42

160150A1

VALVE

- relief

2шт.

Part of Shim Kit, P/N 155990A1

1шт.

43

154515A1

O-RING

- valve

2шт.

44

160638A1

GAUGE

DIPSTICK - lube, swing motor

1шт.

155990A1

SHIM KIT

KIT - shim, for relief valve, Ref. 42

1шт.

Выбрано товаров: 51
