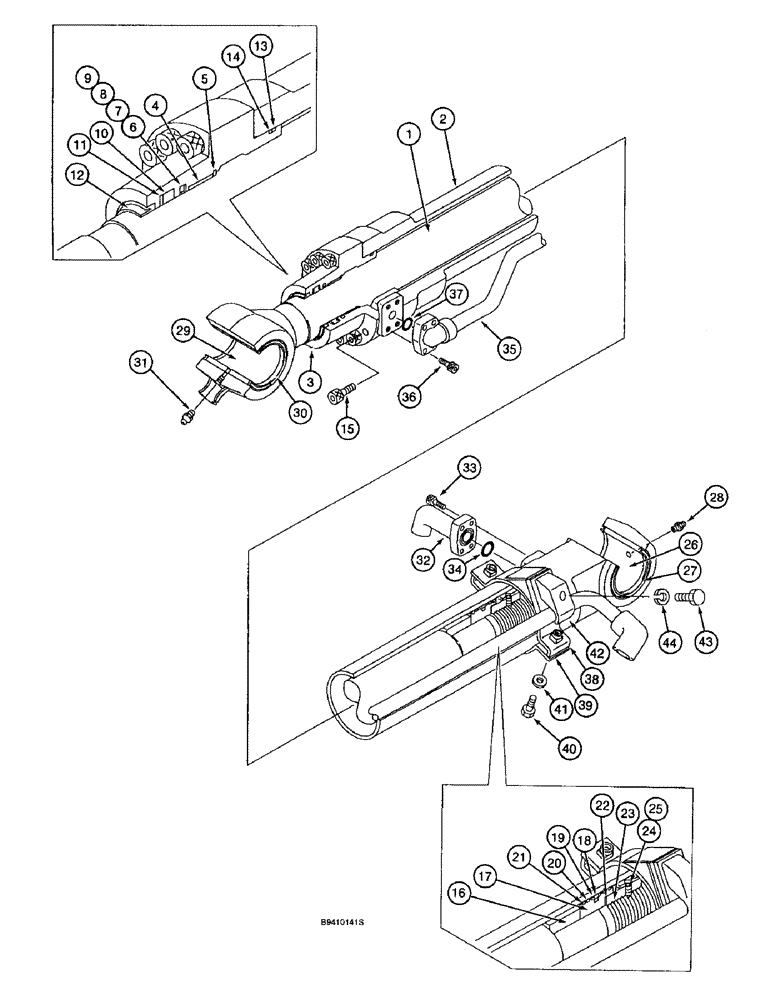

Запчасти Case 9040B (8-180) - BUCKET CYLINDER, MODELS WITHOUT LONG REACH (08) - HYDRAULICS

159452A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 135 (5-5/16) ID x 1073 mm (42-1/4 inch) stroke, bucket, Includes: Ref. 1 - 44

1шт.

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - cylinder, component parts not serviced separately

1шт.

2

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY - hydraulic, component parts not serviced separately

1шт.

3

160173A1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

160050A1

BUSHING

- gland

1шт.

5

155713A1

RING, SNAP

RING - retaining

1шт.

6

160123A1

BACK-UP RING

RING ASSEMBLY - buffer

1шт.

7

160015A1

BACK-UP RING

RING - slide

1шт.

8

159991A1

BACK-UP RING

RING - backup

1шт.

9

160020A1

RING

- square

1шт.

10

155145A1

RING,90mm ID x 105mm OD x 9mm Thk

SEAL - U-cup

1шт.

11

155249A1

BACK-UP RING

RING - backup

1шт.

12

161877A1

BACK-UP RING

WIPER - piston rod

1шт.

13

154777A1

O-RING

- seal

1шт.

14

159994A1

BACK-UP RING

RING - backup

1шт.

15

160299A1

BOLT,Hex Skt Hd

BOLT - hex, special

12шт.

16

160122A1

RING

- cushion

1шт.

17

160217A1

JACK PISTON

PISTON - cylinder

1шт.

18

159961A1

SEALING RING

SEAL - piston

1шт.

19

159995A1

BACK-UP RING

RING - backup

2шт.

20

160019A1

RING

- wear

2шт.

21

160016A1

RING

- wear

2шт.

22

155722A1

SHIM

WASHER - flat, special

1шт.

23

156220A1

NUT

- special

1шт.

24

156223A1

SET SCREW

SCREW - set

1шт.

25

155977A1

BALL

- steel

1шт.

26

160051A1

BUSHING

- mounting pin, cylinder end

1шт.

27

160483A1

BACK-UP RING

WIPER - pin, cylinder end

2шт.

28

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

29

160052A1

BUSHING

- mounting pin, rod end

1шт.

30

162962A1

WIPER SEAL

WIPER - pin, rod end

2шт.

31

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

32

155516A1

TUBE

TUBE - hydraulic, cylinder end

1шт.

33

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

34

154528A1

O-RING

- tube

1шт.

35

160089A1

HYD TUBE

TUBE - hydraulic, rod end

1шт.

36

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

37

154528A1

O-RING

- tube

1шт.

38

160337A1

MOUNTING CLIP

CLAMP - band

1шт.

39

160339A1

MOUNTING CLIP

CLAMP - band

1шт.

40

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

41

156227A1

WASHER

- lock, special

2шт.

42

155717A1

COLLAR

CLAMP - tube, special

1шт.

43

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

44

112312A1

LOCK WASHER

- lock, 12 mm

1шт.

160229A1

SEAL KIT

KIT - seal replacement, contains Refs. 6 -14, and 18 -22, in the quantities specified

1шт.

160230A1

SEAL KIT

KIT - gland replacement, contains Refs. 3 -5, in the quantities specified

1шт.

160361A1

PIPE SET

KIT - rod replacement, contains Refs. 1 and 29, in the quantities specified

1шт.

160361A1 IS ACTUALLY THE CYL TUBE KIT.

1шт.

160362A1

SET OF PARTS

KIT - cylinder replacement, contains Refs. 2 and 29, in the quantities specified

1шт.

160362A1 IS ACTUALLY THE CYL ROD KIT.

1шт.
