Запчасти Case 9040B (8-179C) - LOAD HOLDING OPTION, ARM CYLINDER HOLDING VALVE ASSEMBLY, MODELS WITH LONG REACH (08) - HYDRAULICS

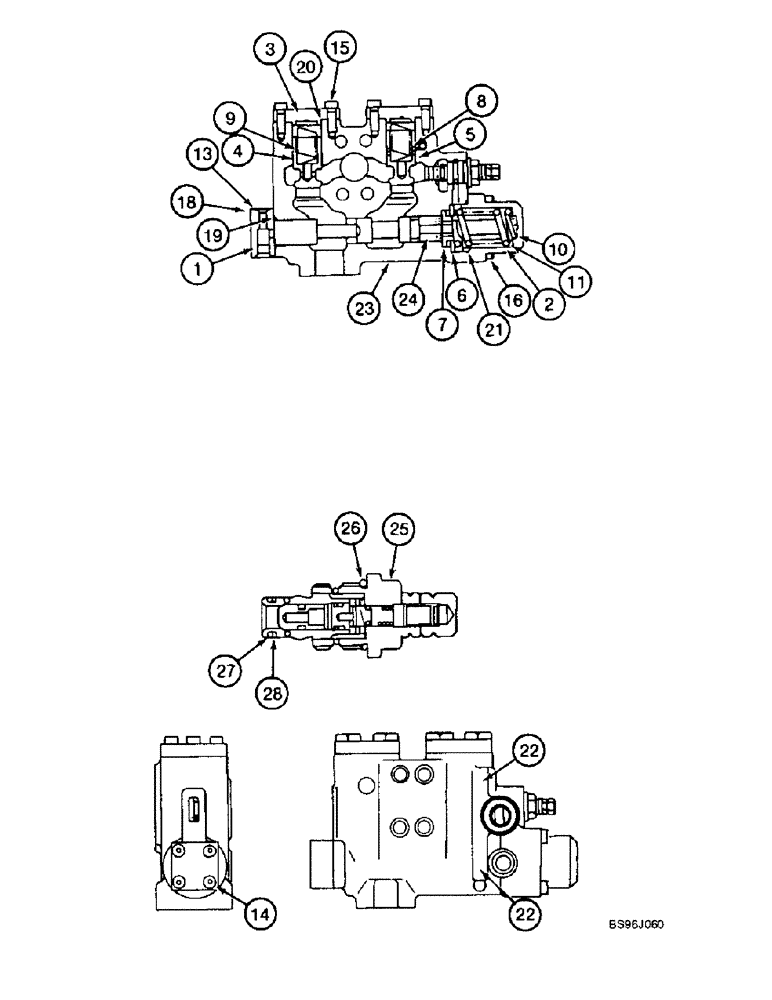

Схема запчастей Case 9040B - (8-179C) - LOAD HOLDING OPTION, ARM CYLINDER HOLDING VALVE ASSEMBLY, MODELS WITH LONG REACH (08) - HYDRAULICS
3
5
25
20
4
1
2
23
16
24
14
8
11
19
21
26
22
9
27
7
10
6
18
26
15
22
13

Артикул

Название

Примечание

Количество

164126A1

SAFETY VALVE

VALVE ASSEMBLY - holding, arm cylinder, Includes: Ref. 1 - 28

1шт.

1

164985A1

COVER

- spool end

1шт.

2

164986A1

COVER

- spool, spring end

1шт.

3

164987A1

COVER

- spring and plunger

2шт.

4

164988A1

PLUNGER

- valve

1шт.

5

164989A1

PLUNGER

- valve

1шт.

6

164990A1

SPACER

- spring tension

1шт.

7

164991A1

HOLDER

GUIDE - spring

1шт.

8

164992A1

SPRING

- plunger return

1шт.

9

164993A1

SPRING

- plunger return

1шт.

10

164994A1

SPRING

- spool return, inner

1шт.

11

164995A1

SPRING

- spool return, outer

1шт.

13

155510A1

PLUG

- port

1шт.

14

861-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 35 mm, class 12.9

4шт.

15

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

12шт.

16

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

4шт.

18

154455A1

O-RING

- plug

1шт.

19

154549A1

O-RING

- spool end cover

1шт.

20

154569A1

O-RING

- spring and plunger cover

2шт.

21

154657A1

O-RING

- spring cover

1шт.

22

163873A1

PLUG

- port

6шт.

164996A1

VALVE, CONTROL

BODY AND SPOOL ASSEMBLY - arm holding valve, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

164997A1

VALVE

ASSEMBLY - relief, Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, less external seals

1шт.

26

154515A1

O-RING

- relief valve outer seal

1шт.

27

154475A1

O-RING

- relief valve inner seal

1шт.

28

153961A1

BACK-UP RING

RING - backup, relief valve inner seal

1шт.

Выбрано товаров: 29
