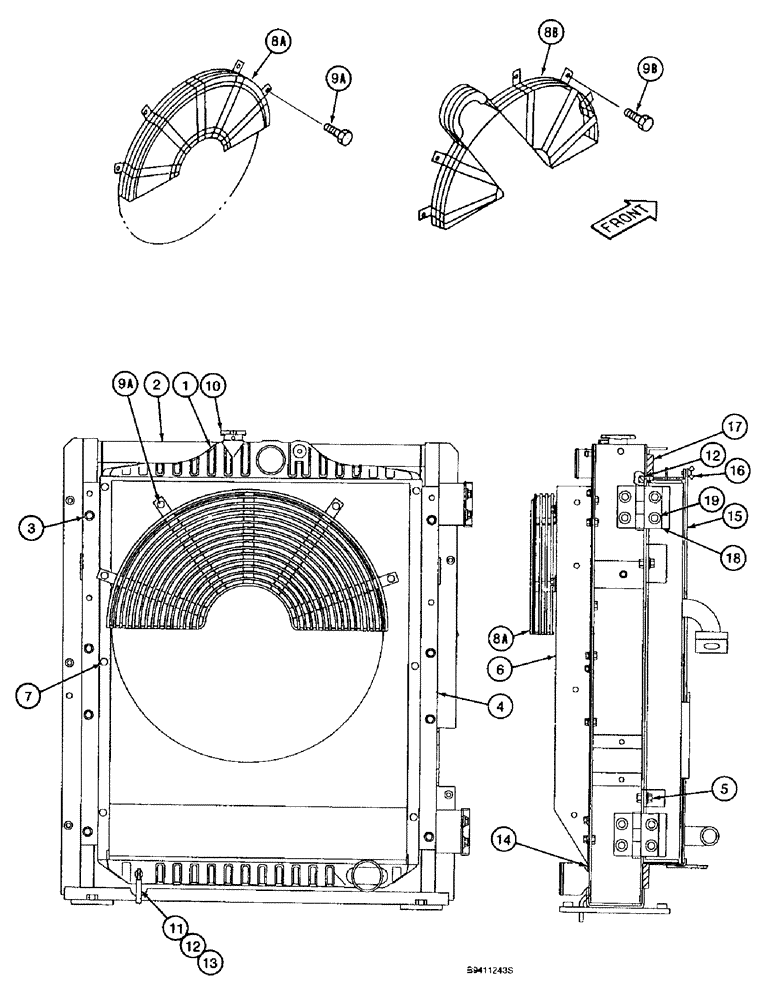

Запчасти Case 9040B (2-16) - RADIATOR ASSEMBLY, PRIOR TO P.I.N. DAC04#2001 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
159953A1
RADIATOR
ASSEMBLY - water and hydraulic oil cooling, Includes: Ref. 1 - 19
1шт.
1
160138A1
RADIATOR
CORE - radiator, engine cooling, Serial Range: -DAC04#2001
1шт.
2
160139A1
FRAME
- radiator, Serial Range: -DAC04#2001
1шт.
3
158870A1
BOLT
BOLT - special, with shakeproof washer, Serial Range: -DAC04#2001
8шт.
4
162904A1
COOLER, OIL
CORE - cooler, hydraulic oil, Serial Range: -DAC04#2001
1шт.
5
158869A1
BOLT
- special, Serial Range: -DAC04#2001
5шт.
6
162905A1
SHROUD
- radiator, Serial Range: -DAC04#2001
1шт.
7
156599A1
BOLT
BOLT - special, Serial Range: -DAC04#2001
6шт.
8a
158155A1
GUARD
- fan, machines without air conditioning, Serial Range: -DAC04#2001
1шт.
8b
162910A1
GUARD ASSY.
GUARD - fan, machines with air conditioning, Serial Range: -DAC04#2001
1шт.
9a
158870A1
BOLT
BOLT - special, with shakeproof washer, guard mounting, Serial Range: -DAC04#2001
4шт.
9b
162120A1
BOLT,Sems, Hex, M10 x 20mm, Spcl
BOLT - special, guard mounting, Serial Range: -DAC04#2001
7шт.
10
156601A1
PLUG
CAP - radiator, Serial Range: -DAC04#2001
1шт.
11
156602A1
COCK
VALVE - drain, Serial Range: -DAC04#2001
1шт.
12
160321A1
PACKING
PAD - insulation, Serial Range: -DAC04#2001
2шт.
13
156603A1
HOSE
- radiator drain, Serial Range: -DAC04#2001
1шт.
14
160322A1
PACKING
PAD - insulation, Serial Range: -DAC04#2001
2шт.
15
151399A1
PROTECTOR
SCREEN - radiator, Serial Range: -DAC04#2001
1шт.
16
156606A1
BOLT,Wing, M6
BOLT - wing type, special, screen attaching, Serial Range: -DAC04#2001
2шт.
17
160323A1
PACKING
PAD - insulation, Serial Range: -DAC04#2001
4шт.
18
156419A1
HINGE
- radiator, Serial Range: -DAC04#2001
2шт.
19
158869A1
BOLT
- special, hinges, Serial Range: -DAC04#2001
8шт.
NSS
NOT SOLD SEPARAT
RADIATOR ASSEMBLY - water and hydraulic oil cooling, Includes: Ref. 1 - 19
1шт.
1
160138A1
RADIATOR
CORE - radiator, engine cooling, Start Serial: DAC04#2001
1шт.
2
160139A1
FRAME
- radiator, Start Serial: DAC04#2001
1шт.
3
158870A1
BOLT
BOLT - special, with shakeproof washer, Start Serial: DAC04#2001
8шт.
4
162904A1
COOLER, OIL
CORE - cooler, hydraulic oil, Start Serial: DAC04#2001
1шт.
5
158869A1
BOLT
- special, Start Serial: DAC04#2001
5шт.
6
165654A1
SHROUD
- radiator, Start Serial: DAC04#2001
1шт.
7
156599A1
BOLT
BOLT - special, P.I.N. DAC0401132, DAC0411001, DAC0421001 or DAC0431001 and after, P.I.N. DAC04#2001 and after
6шт.
8a
165066A1
GUARD ASSY.
GUARD - fan, machines without air conditioning, Start Serial: DAC04#2001
1шт.
8b
164278A1
GUARD ASSY.
GUARD - fan, machines with air conditioning, Start Serial: DAC04#2001
1шт.
9a
162120A1
BOLT,Sems, Hex, M10 x 20mm, Spcl
BOLT - special, guard mounting, Start Serial: DAC04#2001
4шт.
9b
162120A1
BOLT,Sems, Hex, M10 x 20mm, Spcl
BOLT - special, guard mounting, Start Serial: DAC04#2001
7шт.
10
156601A1
PLUG
CAP - radiator, Start Serial: DAC04#2001
1шт.
11
156602A1
COCK
VALVE - drain, Start Serial: DAC04#2001
1шт.
12
165641A1
PACKING
PAD - insulation, Start Serial: DAC04#2001
2шт.
13
156603A1
HOSE
- radiator drain, Start Serial: DAC04#2001
1шт.
14
160322A1
PACKING
PAD - insulation, Start Serial: DAC04#2001
2шт.
15
151399A1
PROTECTOR
SCREEN - radiator, Start Serial: DAC04#2001
1шт.
16
156606A1
BOLT,Wing, M6
BOLT - wing type, special, screen attaching, Start Serial: DAC04#2001
2шт.
17
160323A1
PACKING
PAD - insulation, Start Serial: DAC04#2001
4шт.
18
165653A1
HINGE
- radiator, Start Serial: DAC04#2001
2шт.
19
158869A1
BOLT
- special, hinges, Start Serial: DAC04#2001
8шт.
Выбрано товаров: 44
