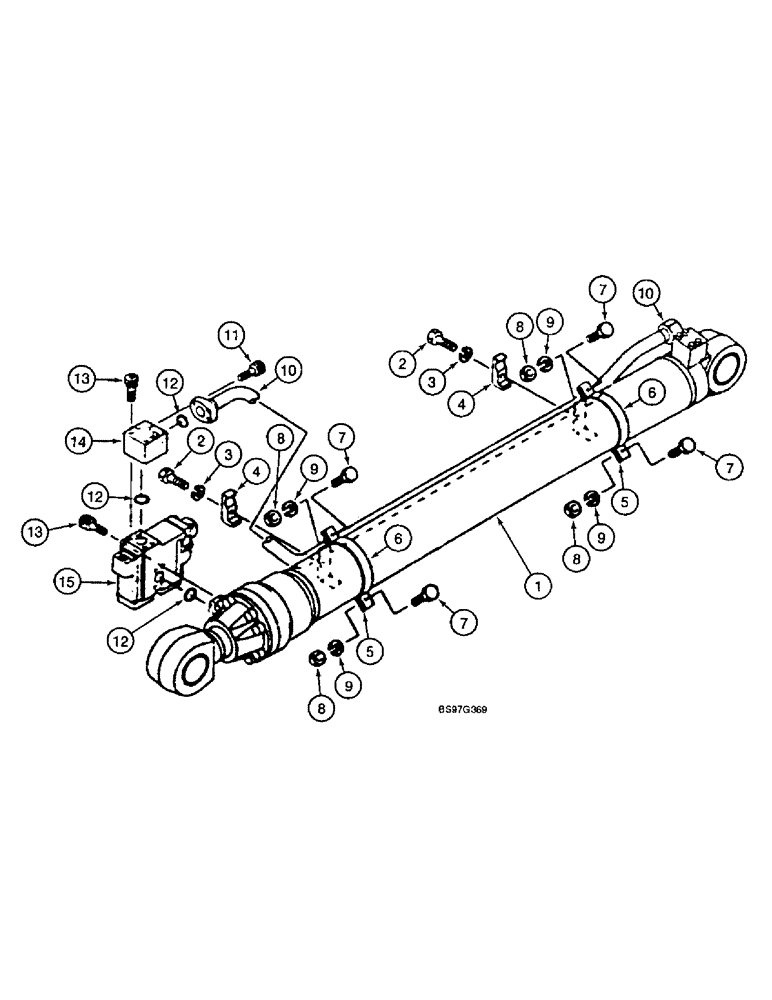

Запчасти Case 9040B (8-179A) - LOAD HOLDING OPTION, MODELS WITH LONG REACH, HOLDING VALVE AND TUBE AT ARM CYLINDER (08) - HYDRAULICS

1

165554A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1733 mm (68-1/4 inch) stroke, arm, used on models with Long Reach option, parts list figure 8-175A, this service replacement cylinder includes hydraulic tubes which are not required for this application

1шт.

2

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

3

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.

4

162035A1

CLAMP

- tube

2шт.

5

162033A1

CLAMP

- special, with tube bracket

2шт.

6

162034A1

CLAMP

- special, plain half

2шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

4шт.

9

892-11010

LOCK WASHER,M10

4шт.

10

162891A1

HYD TUBE,34.7 mm ID, 42.7 mm OD

TUBE - hydraulic, rod end (replaces 162032A1)

1шт.

11

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 40 mm, class 12.9

4шт.

12

154589A1

O-RING

- seal

3шт.

13

162030A1

BOLT,Hex Skt Hd

BOLT - hex socket head

8шт.

14

162031A1

MANIFOLD

- hydraulic

1шт.

15

164126A1

SAFETY VALVE

VALVE ASSEMBLY - holding, arm cylinder, parts list figure 8-179C

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
