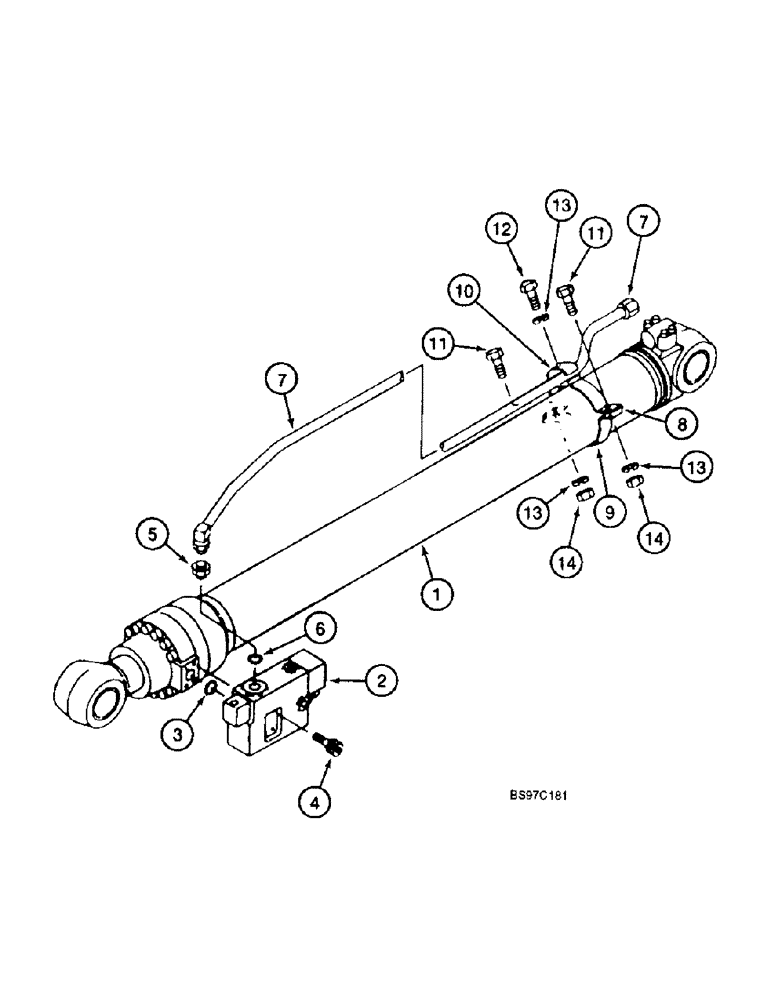

Запчасти Case 9040B (8-178) - LOAD HOLDING OPTION, MODELS WITHOUT LONG REACH, HOLDING VALVE AND TUBE AT ARM CYLINDER (08) - HYDRAULICS

1

162816A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 150 (5-15/16) ID x 1632 mm (64-1/4 inch) stroke, arm, used on models without Long Reach option, parts list figures 8-172 and 8-175A

1шт.

2

162843A1

VALVE

- cylinder, component information not available at time of printing

1шт.

3

154549A1

O-RING

- cover

1шт.

4

862-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 90 mm, class 12.9

4шт.

5

159387A1

ADAPTER

- straight, special, Includes: Ref. 6

1шт.

6

154523A1

O-RING

- adapter

1шт.

7

162825A1

HYD TUBE

TUBE - at cylinder tube, rod end

1шт.

8

162820A1

CLAMP

- special, with tube bracket

1шт.

9

162819A1

CLAMP

- special, plain half

1шт.

10

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

14

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

Bill of material for the no. 2 valve in the hard copy.mck7/98

1шт.
