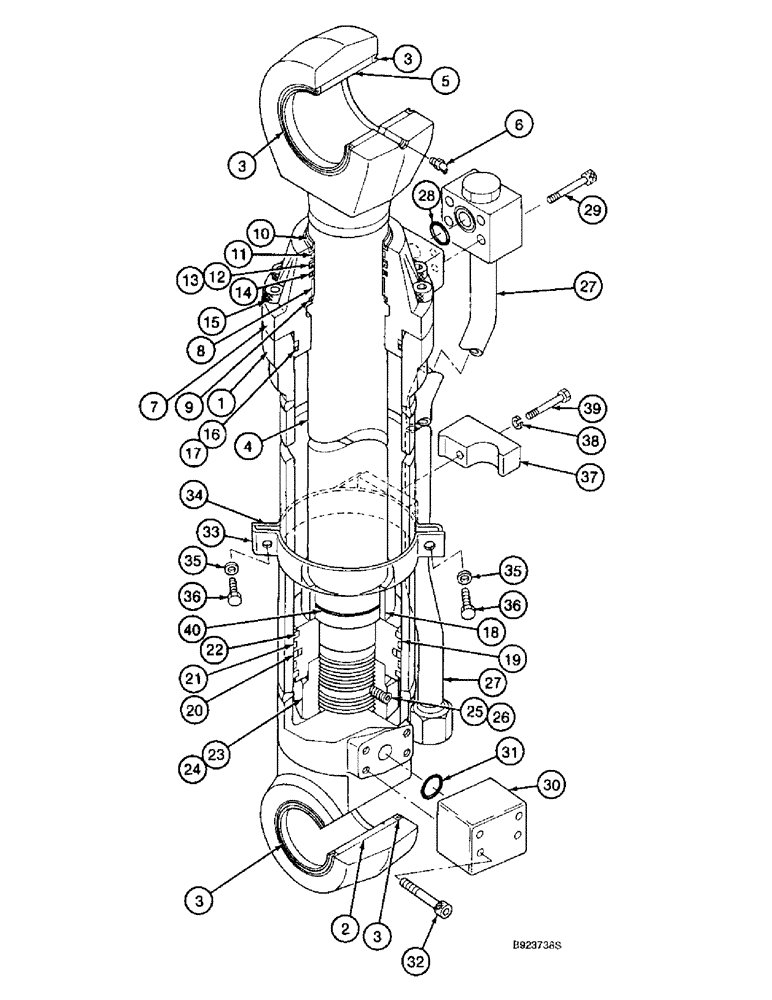

Запчасти Case 9040B (8-176) - ARM CYLINDER, LONG REACH MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

151155A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-1/4) ID x 1733 mm (68-1/4 inch) stroke, replaced by 165554A1 on figure 8-175A, Includes: Ref. 1 - 40

1шт.

155889A1

HYD TUBE

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

155427A1

BUSHING

- Tube

1шт.

3

164147A1

WIPER SEAL

WIPER - pin, rod and closed end, was 155152A1

4шт.

155887A1

PISTON ROD

ROD ASSEMBLY - cylinder, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

5

155427A1

BUSHING

- Rod

1шт.

6

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

155884A1

HYDRAULIC CYLINDER

GLAND ASSEMBLY - cylinder, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

8

155428A1

BUSHING

- Gland

1шт.

9

155704A1

RING, SNAP

RING SNAP - Retaining, Gland bushing

1шт.

10

155127A1

WIPER SEAL

WIPER - Piston rod

1шт.

Part of seal kit P/N 156002A1

1шт.

11

155339A1

RING

SEAL - piston rod

1шт.

Part of seal kit P/N 156002A1

1шт.

12

155237A1

BACK-UP RING

U-cup seal

1шт.

Part of seal kit P/N 156002A1

1шт.

13

155114A1

RING

Seal - U-cup, Piston rod

1шт.

Part of seal kit P/N 156002A1

1шт.

14

155153A1

SEALING RING

RING - buffer, piston rod

1шт.

Part of seal kit P/N 156002A1

1шт.

15

156232A1

BOLT,Hex Skt

Hex socket, Special

8шт.

16

155242A1

BACK-UP RING

Gland seal

1шт.

Part of seal kit P/N 156002A1

1шт.

17

154812A1

O-RING,149.6mm ID x 5.7mm Width

SEAL - gland, to tube

1шт.

Part of seal kit P/N 156002A1

1шт.

18

155734A1

RING

Cushion

1шт.

19

155982A1

JACK PISTON

PISTON - cylinder

1шт.

20

155344A1

SEALING RING

SEAL - piston

1шт.

Part of seal kit P/N 156002A1

1шт.

21

155340A1

RING

Wear, Piston, Inner

2шт.

Part of seal kit P/N 156002A1

1шт.

22

155341A1

RING

Wear, Piston, Outer

2шт.

Part of seal kit P/N 156002A1

1шт.

23

155733A1

SHIM

Washer - Special

1шт.

Part of seal kit P/N 156002A1

1шт.

24

156230A1

NUT

- Piston retaining

1шт.

25

155981A1

BALL

- Steel, Nut locking

1шт.

26

156228A1

SET SCREW

Special

1шт.

27

155537A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, gland end

1шт.

28

154579A1

O-RING

- hydraulic tube

1шт.

29

156231A1

BOLT

BOLT - hex socket, special

4шт.

30

155542A1

JOINT

BLOCK - coupling, hydraulic line

1шт.

31

154543A1

O-RING

, Serial Range: --tube

1шт.

32

863-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 90 mm, class 12.9

4шт.

33

156390A1

BAND

CLAMP - band, plain half

1шт.

34

156393A1

CLAMP

- band, tube support half

1шт.

35

156227A1

WASHER

- lock, special

2шт.

36

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9, plated

2шт.

37

155736A1

HALF-FLANGE

CLAMP - tube

1шт.

38

153623A1

SPRING WASHER

WASHER - lock, special

1шт.

39

153910A1

BOLT,High Strength, Hex, M14 x 80mm

BOLT - hex, special

1шт.

40

155346A1

SEALING RING

O-RING - rod to cushion bearing

1шт.

156002A1

SEAL KIT

KIT - seal, Includes: Refs. 10 - 14, 16, 17 and 20 - 23

1шт.
