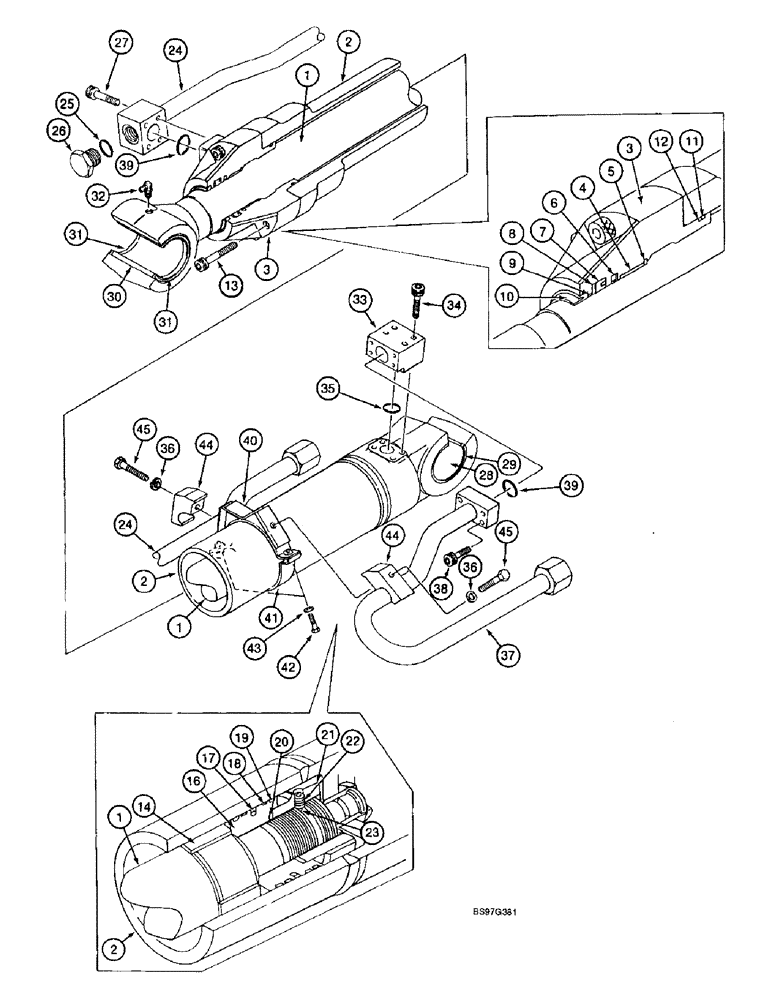

Запчасти Case 9040B (8-175A) - ARM CYLINDER, LONG REACH MODELS (08) - HYDRAULICS

165554A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1733 mm (68-1/4 inch) stroke, arm, this service replacement cylinder includes hydraulic tubes which are not required in this application, Includes: Ref. 1 - 45

1шт.

1

165560A1

PISTON ROD

ROD - cylinder, includes Ref. 30

1шт.

2

162745A1

HYD CYL SLEEVE

Includes Ref 28

1шт.

162742A1

CYLINDER END CAP

Gland Assy, Kit, Includes Refs 3, 4 and 5

1шт.

3

155884A1

HYDRAULIC CYLINDER

GLAND ASSEMBLY - cylinder

1шт.

4

155428A1

BUSHING

- Gland

1шт.

5

155704A1

RING, SNAP

RING SNAP - Retaining

1шт.

6

162697A1

RING

Buffer

1шт.

Part of repair kit P/N 165559A1

1шт.

7

155114A1

RING

Seal - U-cup

1шт.

Part of repair kit P/N 165559A1

1шт.

8

155237A1

BACK-UP RING

1шт.

Part of repair kit P/N 165559A1

1шт.

9

162708A1

RING

- Slide

1шт.

Part of repair kit P/N 165559A1

1шт.

10

155127A1

WIPER SEAL

WIPER - Piston rod

1шт.

Part of repair kit P/N 165559A1

1шт.

11

154812A1

O-RING,149.6mm ID x 5.7mm Width

SEAL - gland

1шт.

Part of repair kit P/N 165559A1

1шт.

12

155242A1

BACK-UP RING

1шт.

Part of repair kit P/N 165559A1

1шт.

13

863-24080

HEX SOC SCREW,M24 x 80mm, Cl 12.9

BOLT - hex socket, 24 - 3.0 x 80 mm, class 12.9

8шт.

14

165555A1

CUSHION

RING - cushion

1шт.

16

165562A1

JACK PISTON

PISTON - cylinder

1шт.

17

162706A1

SEALING RING

Piston

1шт.

Part of repair kit P/N 165559A1

1шт.

18

155340A1

RING

Wear

2шт.

Part of repair kit P/N 165559A1

1шт.

19

155341A1

RING

Wear

2шт.

Part of repair kit P/N 165559A1

1шт.

20

165556A1

WASHER

SHIM - special

1шт.

Part of repair kit P/N 165559A1

1шт.

21

165557A1

NUT

- piston retaining

1шт.

22

165558A1

SCREW

- set

1шт.

23

155981A1

BALL

- Steel

1шт.

24

155537A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, includes plug and O-ring, Includes: Ref. 25 and 26

1шт.

25

154539A1

O-RING

- plug

1шт.

Part of repair kit P/N 165559A1

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - port, hydraulic tube

1шт.

27

156231A1

BOLT

BOLT - hex socket

4шт.

28

155427A1

BUSHING

- Tube, closed end

1шт.

29

164147A1

WIPER SEAL

WIPER - pin, closed end

2шт.

30

155427A1

BUSHING

- Rod eye

1шт.

31

164147A1

WIPER SEAL

WIPER - pin, rod end

2шт.

32

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

33

155542A1

JOINT

BLOCK - coupling, closed end

1шт.

34

862-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 90 mm, class 12.9

4шт.

35

154543A1

O-RING

- Elbow

1шт.

36

892-16014

LOCK WASHER,M14, Hvy

- lock, 14 mm

2шт.

37

164565A1

HYD TUBE

TUBE - hydraulic cylinder, closed end, if used

1шт.

38

164569A1

BOLT

BOLT - hex socket, special

4шт.

39

154579A1

O-RING

- hydraulic tube to cylinder tube

2шт.

40

165106A1

CLAMP

- band, half with two tube mounting flats, if used

1шт.

40

156393A1

CLAMP

- band, half with one tube mounting flat, if used, not shown

1шт.

41

156390A1

BAND

CLAMP - band, plain half

1шт.

42

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

43

156227A1

WASHER

- lock, special

2шт.

44

155736A1

HALF-FLANGE

CLAMP - tube

1шт.

45

153910A1

BOLT,High Strength, Hex, M14 x 80mm

BOLT - hex, special

2шт.

165559A1

SEAL KIT

KIT - repair, Includes: Refs. 6 - 12, 17 - 20 and 25

1шт.
