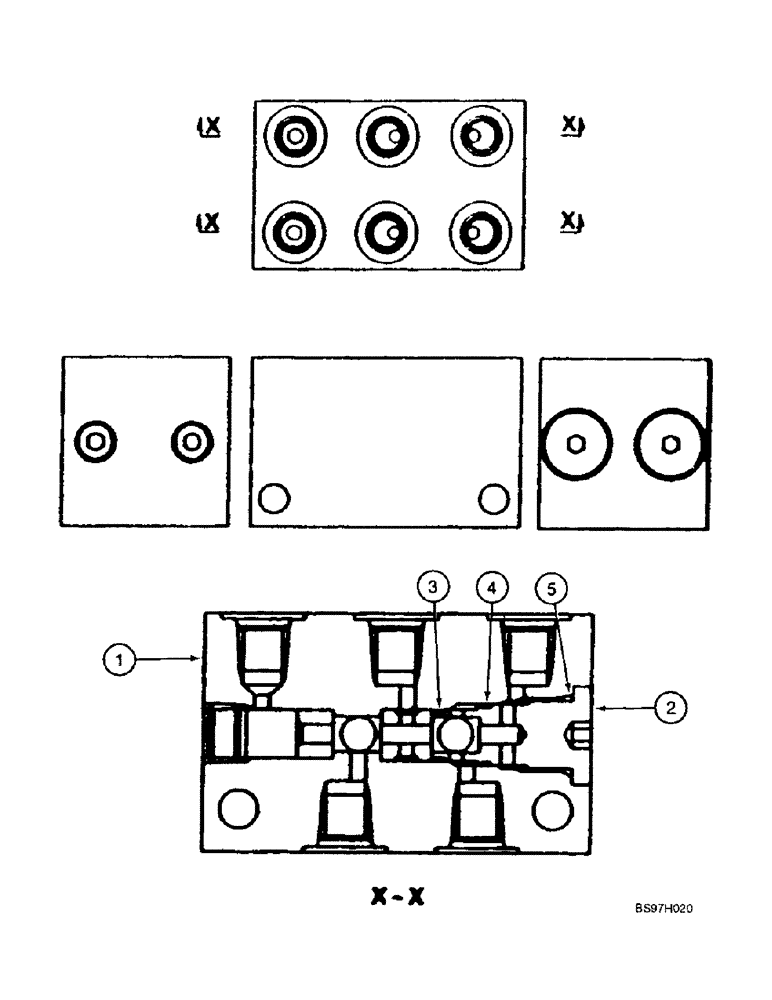

Запчасти Case 9040B (8-161A) - SHUTTLE VALVE ASSEMBLY (08) - HYDRAULICS

KHJ17130

VALVE SECTION

VALVE ASSEMBLY - shuttle, Includes: Ref. 1 - 5; Replaces 160355A1

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - valve, special

2шт.

3

154446A1

O-RING

- plug, inner

2шт.

4

154474A1

O-RING

- plug, center

2шт.

5

154486A1

O-RING

- plug, outer

2шт.
