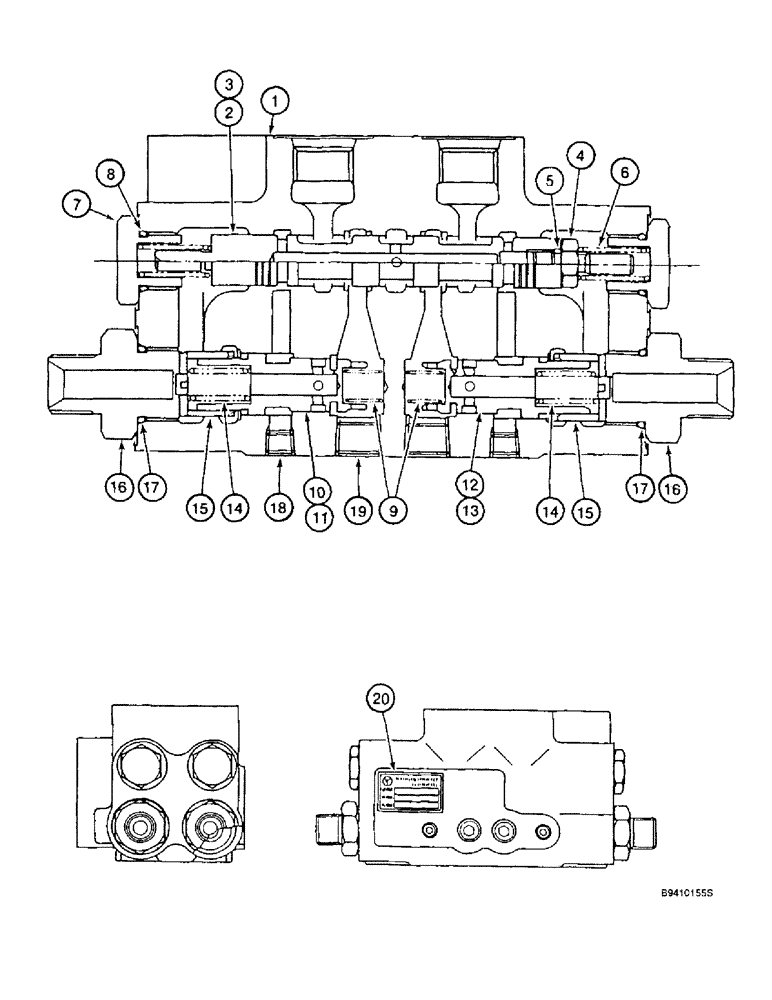

Запчасти Case 9040B (8-160) - CUSHION VALVE ASSEMBLY (08) - HYDRAULICS

159225A1

VALVE

ASSEMBLY - cushion, for standard models without load hold, Includes: Ref. 1 - 20

1шт.

162841A1

VALVE

ASSEMBLY - cushion, for models with load hold option, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

160072A1

SCREW

GUIDE - spring

2шт.

5

154446A1

O-RING

- guide

2шт.

6

160256A1

SPRING

- compression

4шт.

7

160073A1

PLUG

- valve cavity

4шт.

8

154474A1

O-RING

- plug

4шт.

9

160257A1

SPRING

- compression, inner

4шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - cushioning

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - cushioning

1шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - cushioning

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - cushioning

1шт.

14

160258A1

SPRING

- compression, outer

4шт.

15

160092A1

COLLAR

- spool

4шт.

16

160074A1

PLUG

ADAPTER - straight

4шт.

17

154486A1

O-RING

- plug

4шт.

18

155479A1

PLUG

- port

11шт.

19

151026A1

PLUG

- port

8шт.

20

NSS

NOT SOLD SEPARAT

PLATE - identification

1шт.
