(8-156) - PILOT CONTROL SOLENOID VALVE, P.I.N. DAC04#2001 AND AFTER

Запчасти Case 9040B (8-156) - PILOT CONTROL SOLENOID VALVE, P.I.N. DAC04#2001 AND AFTER (08) - HYDRAULICS

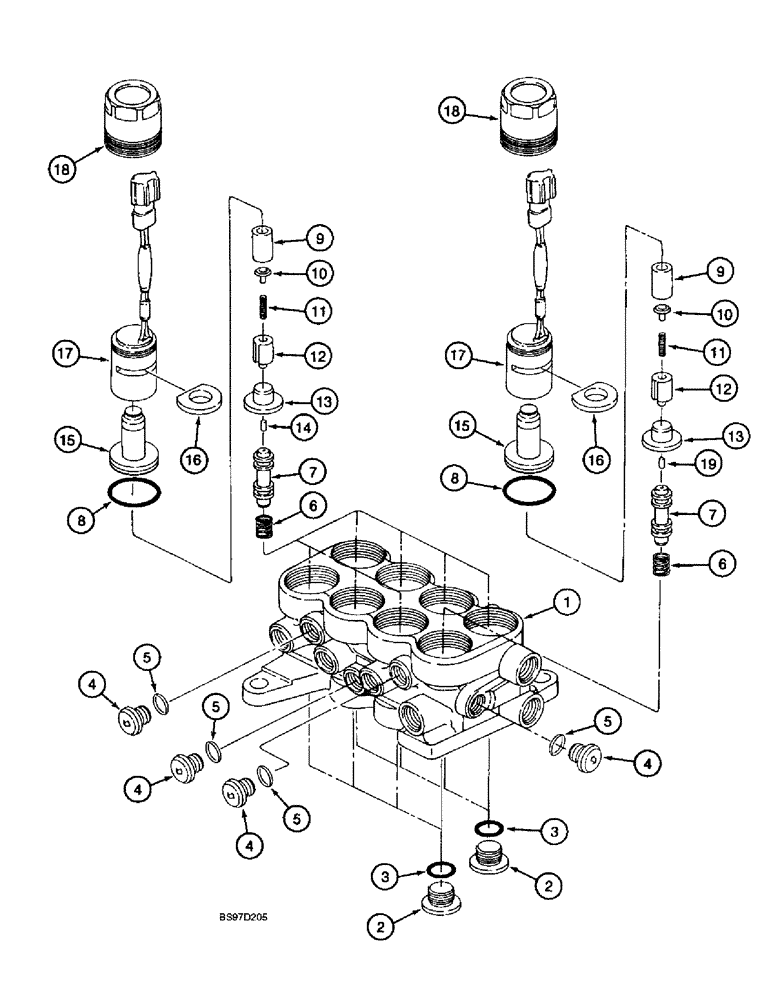

Схема запчастей Case 9040B - (8-156) - PILOT CONTROL SOLENOID VALVE, P.I.N. DAC04#2001 AND AFTER (08) - HYDRAULICS
6
11
13
8
8
6
4
12
9
3
14
5
4
4
16
17
1
7
8
3
1
5
2
12
10
19
11
17
2
16
15
4
5
13
10
6
15
18
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

165454A1

VALVE

ASSEMBLY - solenoid, Includes: Ref. 1 - 19, Start Serial: DAC04#2001

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

165769A1

PLUG

- port, Includes: Ref. 3

8шт.

3

154475A1

O-RING

- plug

1шт.

4

165770A1

PLUG

- port, Includes: Ref. 5

4шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

6

165771A1

SPRING

PLUG - port

8шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - valve

8шт.

8

159975A1

O-RING

- housing

8шт.

9

160068A1

SPACER

PIPE - special

8шт.

10

160246A1

SPRING SEAT

SEAT - spring

8шт.

11

160248A1

SPRING

- plunger

8шт.

12

160193A1

PLUNGER

- valve

8шт.

13

160194A1

STOP

- special, valve

8шт.

14

160024A1

ROD

- special, valve

7шт.

15

160302A1

PLUNGER

HOUSING - valve, inner

8шт.

16

160091A1

SPACER

- special, coil

8шт.

17

160137A1

COIL ASSY.

COIL - solenoid

8шт.

18

160067A1

SCREW

- special retaining

8шт.

19

160025A1

ROD

- special, valve

1шт.
