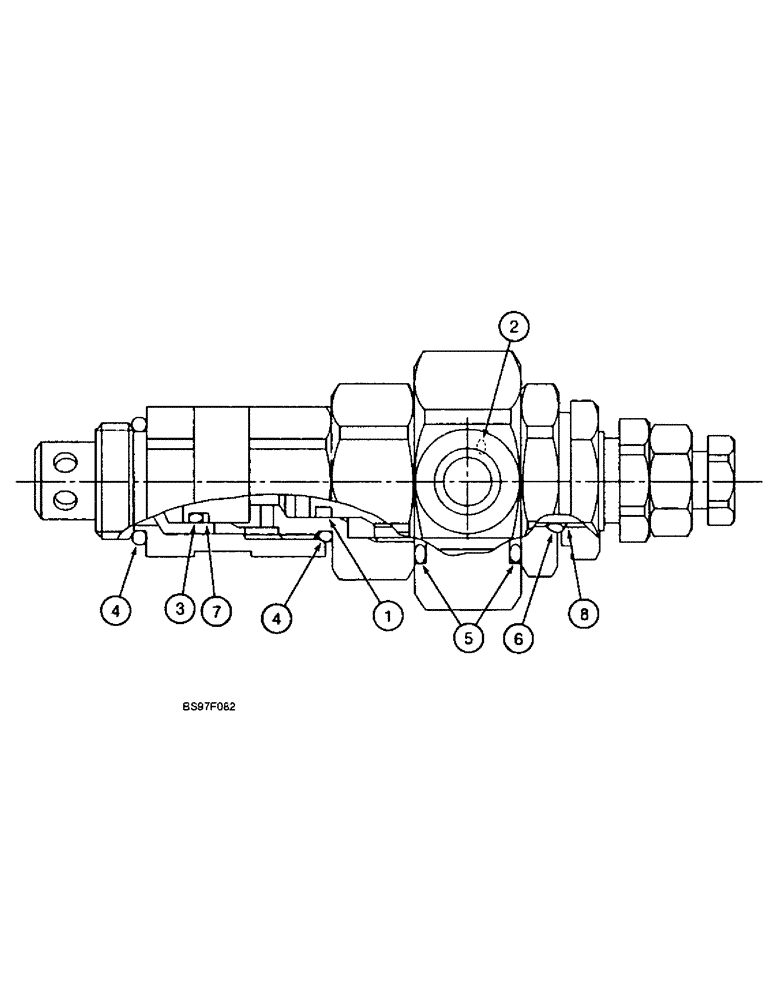

Запчасти Case 9040B (8-152) - HYDRAULIC CONTROL VALVE COMPONENTS, MAIN RELIEF VALVE COMPONENTS (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - control, see figure 8-136 for correct valve assembly and parts list figures 8-136 - 8-152 for components, Includes: Ref. 1 - 8

1шт.

160131A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, main, 162810A1 and 162911A1, Includes: Ref. 1 - 8

1шт.

165835A1

VALVE

ASSEMBLY - relief, main, 165062A1 and 165064A1, Includes: Ref. 1 - 8

1шт.

1

154470A1

O-RING

- valve

1шт.

2

154462A1

O-RING

- valve

1шт.

3

159982A1

O-RING

- valve

1шт.

4

155223A1

O-RING

- valve

2шт.

5

154538A1

O-RING

- valve

2шт.

6

155222A1

O-RING

- valve

1шт.

7

153964A1

BACK-UP RING

RING - backup, valve

1шт.

8

159985A1

BACK-UP RING

RING - backup, valve

1шт.
