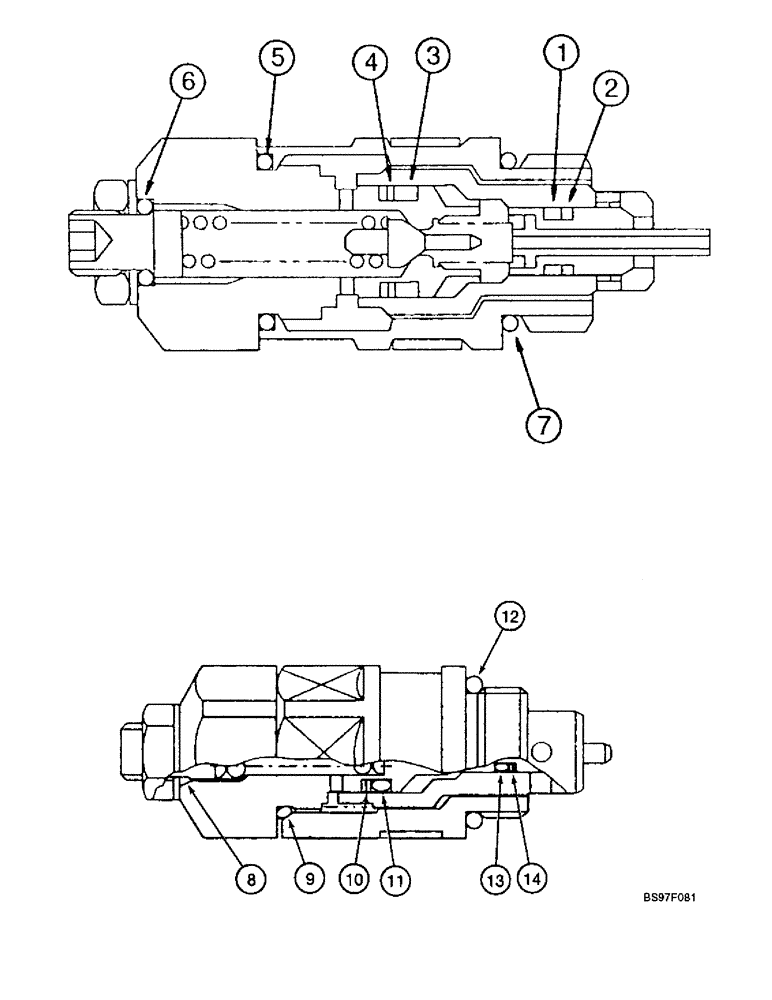

Запчасти Case 9040B (8-150) - HYDRAULIC CONTROL VALVE COMPONENTS, RELIEF VALVE COMPONENTS (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - control, see figure 8-136 for correct valve assembly and parts list figure 8-136 - 8-152 for components, Includes: Ref. 1 - 14

1шт.

155745A1

VALVE PRESSURE RELIE

VALVE - relief, 162810A1 and 162911A1, Includes: Ref. 1 - 7

1шт.

1

159977A1

O-RING

- valve

1шт.

2

159979A1

BACK-UP RING

RING - backup

2шт.

3

159976A1

O-RING

- valve

1шт.

4

159978A1

RING

- backup

2шт.

5

155223A1

O-RING

- valve

1шт.

6

154463A1

O-RING

- valve

1шт.

7

155223A1

O-RING

- valve

1шт.

164457A1

VALVE

ASSEMBLY - relief, 165062A1 and 165064A1, Includes: Ref. 8 - 14

1шт.

163380A1

VALVE

ASSEMBLY - relief, 165062A1 and 165064A1, Includes: Ref. 8 - 14

1шт.

8

154463A1

O-RING

- valve

1шт.

9

155223A1

O-RING

- valve

1шт.

10

164905A1

BACK-UP RING

RING - backup, valve

2шт.

11

164906A1

O-RING

- valve

1шт.

12

155223A1

O-RING

- valve

1шт.

13

163323A1

O-RING

- valve

1шт.

14

164575A1

BACK-UP RING

RING - backup, valve

2шт.
