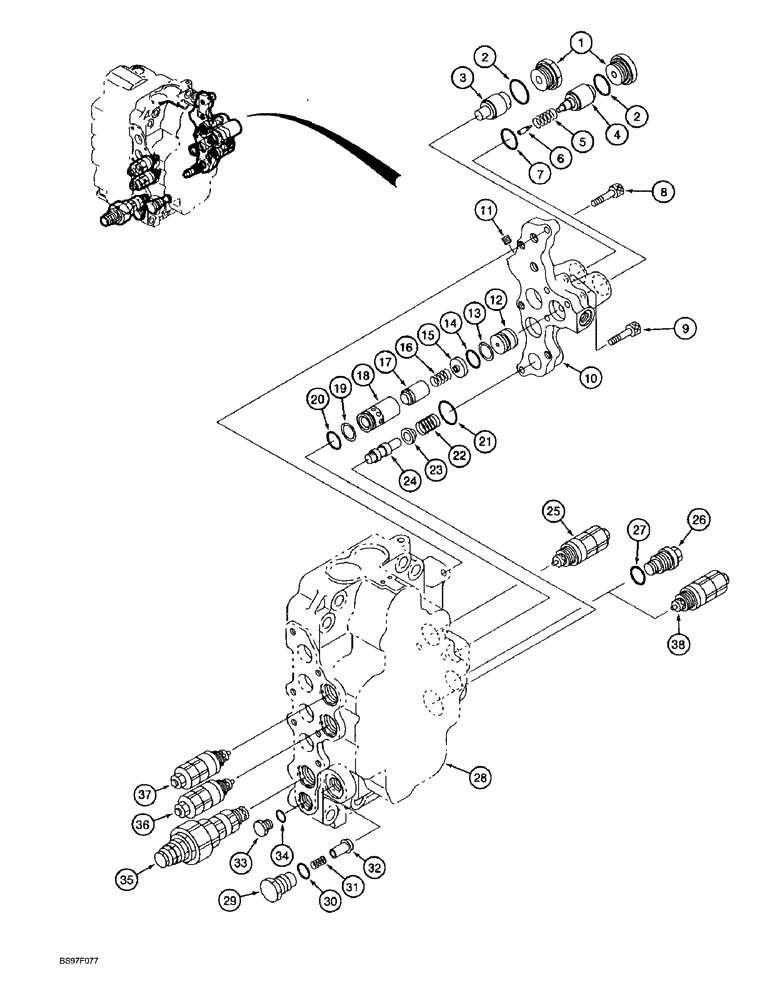

Запчасти Case 9040B (8-140) - HYDRAULIC CONTROL VALVE COMPONENTS, FOUR SPOOL VALVE SECTION, RELIEF AND CHECK VALVES (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - control, see figure 8-136 for correct valve assembly and parts list figures 8-136 - 8-152 for components, Includes: Ref. 1 - 38

1шт.

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 4 spool, parts list figures 8-138 - 8-140, Includes: Ref. 1 - 38

1шт.

1

160053A1

PLUG

- valve

2шт.

2

155225A1

O-RING

- plug

2шт.

3

160190A1

PISTON

- valve, boom speed restriction

1шт.

4

160191A1

PISTON

- valve, pilot control for boom anti-drift

1шт.

5

160239A1

SPRING

- valve

1шт.

6

160185A1

VALVE POPPET

POPPET - valve

1шт.

7

154547A1

O-RING

- plug, 165062A1 and 165064A1 valves

2шт.

7

154549A1

O-RING

- plug, 162810A1 and 162911A1 valves

2шт.

8

160287A1

BOLT,Hex Skt

BOLT - hex socket, special

5шт.

9

861-10085

HEX SOC SCREW,M10 x 85mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 85 mm, class 12.9

3шт.

10

160312A1

CAP

COVER - spool end

1шт.

11

151022A1

PLUG

- hex socket, special, 162810A1 and 162911A1 valves

1шт.

11

165832A1

PLUG

- hex socket, special, 165062A1 and 165064A1 valves

1шт.

12

160061A1

PLUG

- special

1шт.

13

153982A1

BACK-UP RING

RING - backup

1шт.

14

154502A1

O-RING

-, Serial Range: sleeve-housing

1шт.

15

160133A1

SPACER

- spring seat

1шт.

16

160240A1

SPRING

- poppet

1шт.

17

160184A1

VALVE POPPET

POPPET - valve, spool end

1шт.

18

160177A1

SLEEVE

- valve, boom anti-drift

1шт.

19

155094A1

O-RING

- plug

1шт.

20

154426A1

BACK-UP RING

RING - backup

1шт.

21

154547A1

O-RING

- cover, 165062A1 and 165064A1 valves

4шт.

21

154549A1

O-RING

- cover, 162810A1 and 162911A1 valves

4шт.

22

160238A1

SPRING

- return, piston return

1шт.

23

160175A1

SPRING SEAT

SEAT - spring

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - valve, for shifting boom 2 spool

1шт.

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 4 spool, parts list figures 8-138 - 8-140

1шт.

25

155745A1

VALVE PRESSURE RELIE

VALVE - relief, bucket closing, 162810A1 and 162911A1 valves, parts list figure 8-150

1шт.

25

164457A1

VALVE

ASSEMBLY - relief, bucket closing, 165062A1 and 165064A1 valves, parts list figure 8-150

1шт.

26

155438A1

PLUG

- relief port, 162810A1 valve

1шт.

26

165839A1

PLUG

ASSEMBLY - port, special, 165064A1 valve

1шт.

27

155223A1

O-RING

- 155438A1 or 165839A1 plug

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - control valve, four spool side

1шт.

29

155464A1

PLUG

- special

1шт.

30

155222A1

O-RING

- plug

1шт.

31

156026A1

SPRING

- compression

1шт.

32

155931A1

VALVE POPPET

VALVE - poppet, main relief isolation check

1шт.

33

157348A1

PLUG

- port

1шт.

34

154475A1

O-RING

- plug

1шт.

35

160131A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, main, 162810A1 and 162911A1 valves, parts list figure 8-152

1шт.

35

165835A1

VALVE

ASSEMBLY - relief, main, 165062A1 and 165064A1 valves, parts list figure 8-152

1шт.

36

155745A1

VALVE PRESSURE RELIE

VALVE - relief, boom lowering circuit relief, 162810A1 and 162911A1 valves, parts list figure 8-150

1шт.

36

163380A1

VALVE

ASSEMBLY - relief, boom lowering circuit relief, 165062A1 and 165064A1 valves, parts list figure 8-150

1шт.

37

155745A1

VALVE PRESSURE RELIE

VALVE - relief, bucket open circuit relief, 162810A1 and 162911A1 valves, parts list figure 8-150

1шт.

37

164457A1

VALVE

ASSEMBLY - relief, bucket open circuit relief, 165062A1 and 165064A1 valves, parts list figure 8-150

1шт.

38

155745A1

VALVE PRESSURE RELIE

VALVE - relief, 162911A1 valve, parts list figure 8-150

1шт.

38

164457A1

VALVE

ASSEMBLY - relief, 165062A1 valve, parts list figure 8-150

1шт.
