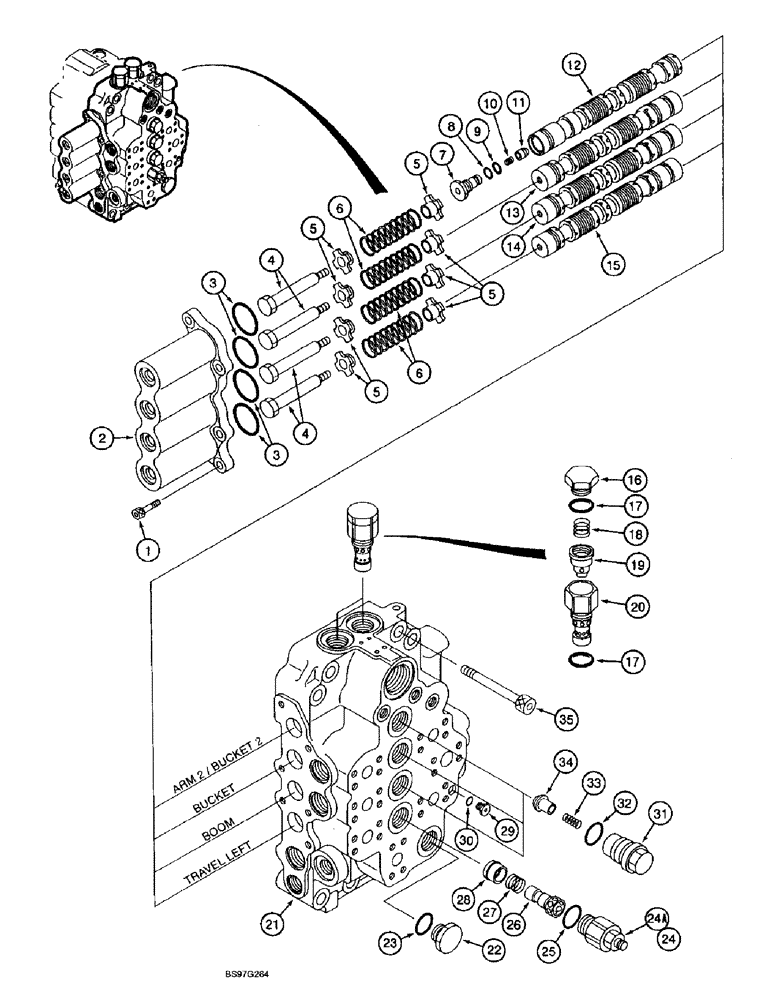

Запчасти Case 9040B (8-138) - HYDRAULIC CONTROL VALVE COMPONENTS, FOUR SPOOL VALVE SECTION, SPOOLS AND COVERS (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - control, see figure 8-136 for correct valve assembly and parts list figures 8-136 - 8-152 for components, Includes: Ref. 1 - 35

1шт.

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 4 spool, parts list figures 8-138 - 8-140, Includes: Ref. 1 - 34

1шт.

1

160287A1

BOLT,Hex Skt

BOLT - hex socket, special

6шт.

2

160313A1

CAP

COVER - spool end

1шт.

3

154567A1

O-RING

- seal

4шт.

4

156243A1

CAP

RETAINER - spring

4шт.

5

156019A1

SPRING SEAT

SEAT - spring

8шт.

6

160231A1

SPRING

- spool return, 162810A1 and 162911A1 valves

4шт.

6

165840A1

SPRING

- spool return, 165062A1 and 165064A1 valves

4шт.

7

160059A1

PLUG

RETAINER - spring and poppet

1шт.

8

154420A1

RING

- backup

1шт.

9

155087A1

O-RING

- retainer

1шт.

10

156026A1

SPRING

- compression

1шт.

11

160174A1

VALVE POPPET

POPPET - valve spool

1шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - valve, arm 1

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - valve, swing

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - valve, travel right

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - valve, boom 2

1шт.

165834A1

VALVE

ASSEMBLY - relief, 165062A1 and 165064A1, Includes: Ref. 16 - 20

2шт.

160132A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, 162810A1 and 162911A1, Includes: Ref. 16 - 20

2шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

17

155224A1

O-RING

- relief valve

2шт.

18

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - valve, four spool side

1шт.

22

160054A1

PLUG

- port

1шт.

23

154503A1

O-RING

- plug

1шт.

24

160134A1

VALVE, CHECK

VALVE ASSEMBLY - check, Includes: Ref. 24A and 25

1шт.

24a

155171A1

O-RING

- valve, internal

1шт.

25

155224A1

O-RING

-, Serial Range: valve-housing

1шт.

26

160179A1

SLEEVE

- valve

1шт.

27

160237A1

SPRING

- compression

1шт.

28

163387A1

VALVE POPPET

VALVE - poppet

1шт.

165837A1

PLUG

- port, with O-ring, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG - port, without O-ring

1шт.

30

154455A1

O-RING

- plug

1шт.

31

160064A1

PLUG

- valve

3шт.

32

155224A1

O-RING

- plug

3шт.

33

160243A1

SPRING

- compression, Includes: Ref. 34

3шт.

34

160189A1

WELL

PLUNGER - valve

3шт.

35

156169A1

BOLT

BOLT - hex socket

8шт.
