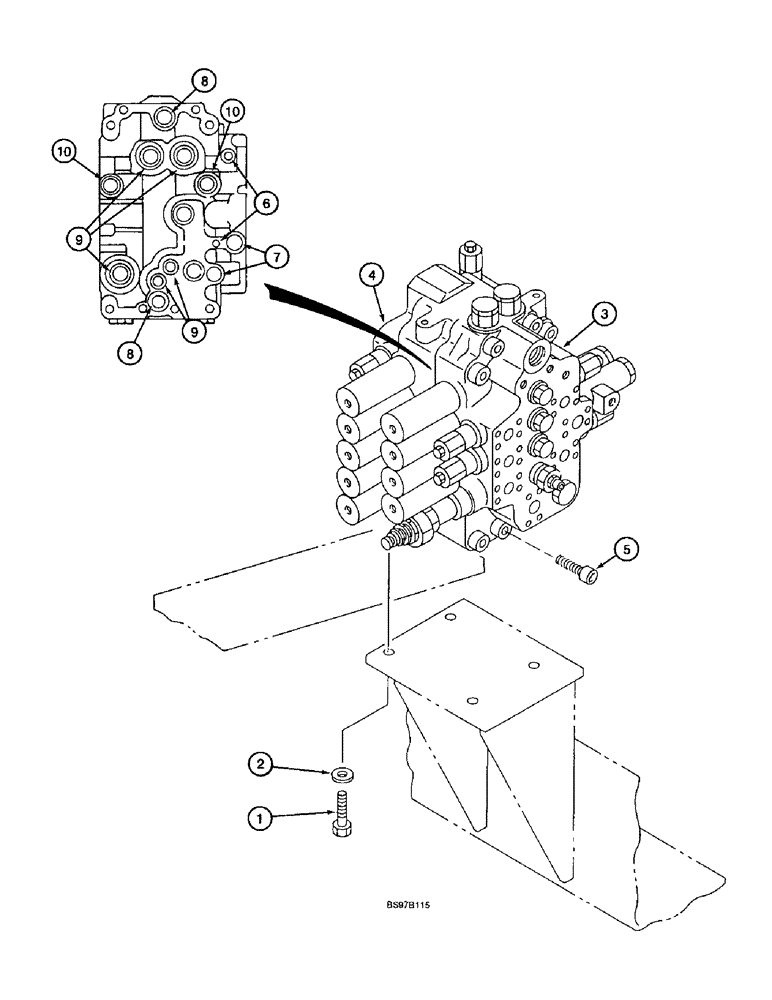

Запчасти Case 9040B (8-136) - CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

2

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

162911A1

VALVE

ASSEMBLY - control, standard models without load hold, parts list figures 8-136 - 8-152, replaced by 165062A1, Includes: Ref. 3 - 10

1шт.

165062A1

VALVE, CONTROL

VALVE ASSEMBLY - control, standard models without load hold, parts list figures 8-136 - 8-152, Includes: Ref. 3 - 10

1шт.

162810A1

VALVE

ASSEMBLY - control, standard models with load hold, parts list figures 8-136 - 8-152, replaced by 165064A1, Includes: Ref. 3 - 10

1шт.

165064A1

VALVE

ASSEMBLY - control, standard models with load hold, parts list figures 8-136 - 8-152, Includes: Ref. 3 - 10

1шт.

164411A1

VALVE, CONTROL

VALVE ASSEMBLY - control, Long Reach models without load hold, component information not available at time of printing, replaced by 165063A1, Includes: Ref. 3 - 10

1шт.

165063A1

VALVE

ASSEMBLY - control, Long Reach models without load hold, component information not available at time of printing, Includes: Ref. 3 - 10

1шт.

163262A1

VALVE, CONTROL

VALVE ASSEMBLY - control, Long Reach models with load hold, component information not available at time of printing, replaced by 165065A1, Includes: Ref. 3 - 10

1шт.

165065A1

VALVE

ASSEMBLY - control, Long Reach models with load hold, component information not available at time of printing, Includes: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 4 spool, control valve, parts list figures 8-138 thru 8-140

1шт.

4

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 5 spool, control valve, parts list figures 8-144 thru 8-148

1шт.

5

156169A1

BOLT

BOLT - hex socket

8шт.

6

155087A1

O-RING

- port, between sections

3шт.

7

154491A1

O-RING

- port, between sections

2шт.

8

154528A1

O-RING

- port, between sections

2шт.

9

159971A1

O-RING

- port, between sections

7шт.

10

159972A1

O-RING

- port, between sections

2шт.
