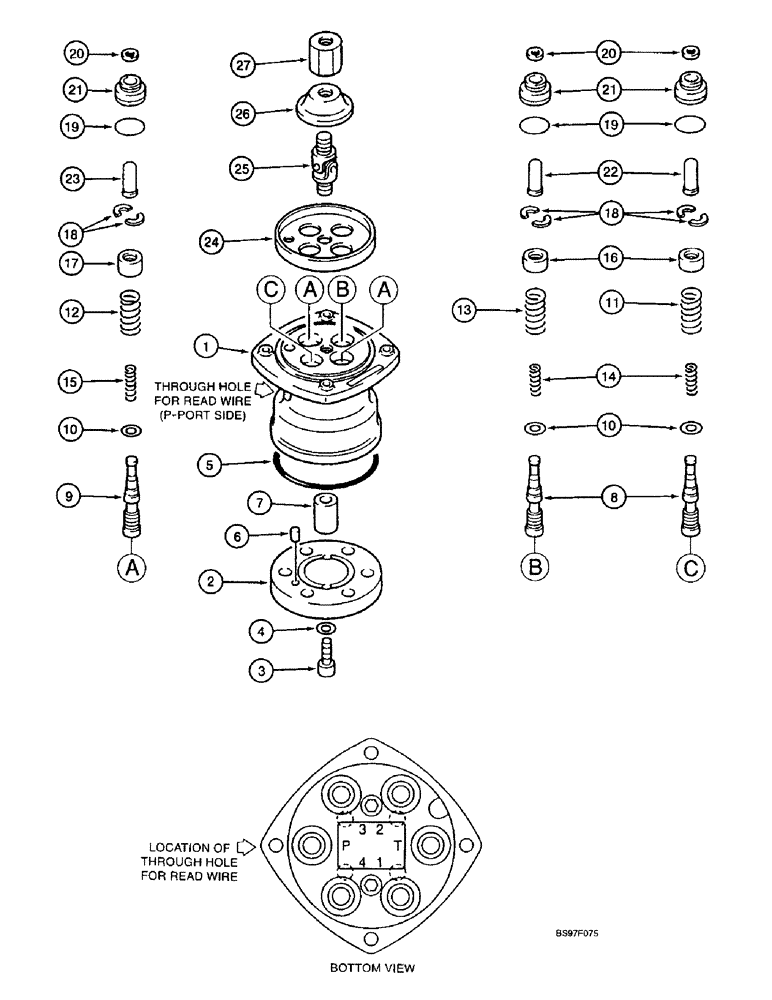

Запчасти Case 9040B (8-130) - MANUALLY-OPERATED CONTROL VALVE (08) - HYDRAULICS

159700A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

160310A1

COVER

PLATE - port

1шт.

3

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 30 mm, class 12.9

2шт.

4

156164A1

SEALING WASHER

WASHER - sealing

2шт.

Part of seal kit P/N 160218A1.

1шт.

5

155167A1

O-RING

- port, Serial Range: plate-housing

1шт.

Part of seal kit P/N 160218A1.

1шт.

6

738-1510

LOCK PIN,M5 x 10, Slotted

PIN - roll, 5 x 10 mm

1шт.

7

160036A1

BUSHING

- valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

10

160285A1

WASHER

- flat, special

4шт.

11

160252A1

SPRING

- valve

1шт.

12

160253A1

SPRING

- valve, outer (ports 2 and 4)

2шт.

13

160251A1

SPRING

- valve, outer (port 1)

1шт.

14

160254A1

SPRING

- valve, spool, inner (ports 1 and 3)

2шт.

15

160255A1

SPRING

- valve, spool, inner (ports 2 and 4)

2шт.

16

160234A1

SPRING SEAT

SEAT - spring (ports 1 and 3)

2шт.

17

160233A1

SPRING SEAT

SEAT - spring (ports 2 and 4)

2шт.

18

LA00056

WASHER

- flat, special; Replaces 160286A1

8шт.

19

154491A1

O-RING

- push rod guide, outer

4шт.

Part of seal kit P/N 160218A1.

1шт.

20

155292A1

SEAL

- push rod

4шт.

Part of seal kit P/N 160218A1.

1шт.

21

160070A1

PLUG

GUIDE - push rod

4шт.

22

160026A1

THREADED ROD

ROD - push (ports 1 and 3)

2шт.

23

160027A1

THREADED ROD

ROD - push (ports 2 and 4)

2шт.

24

160309A1

RETAINER

PLATE - push rod retaining

1шт.

25

155255A1

FLEXIBLE JOINT

PIVOT - remote control valve

1шт.

26

155577A1

PIVOTING ARM

ROCKER - remote control valve

1шт.

27

156165A1

NUT

- hex

1шт.

160218A1

SEAL KIT

KIT - seal, contains Refs. 4, 5, 19 and 20 in quantities shown

1шт.

When any one of the seal kit components must be replaced, it is recommended that all kit components be installed.

1шт.
