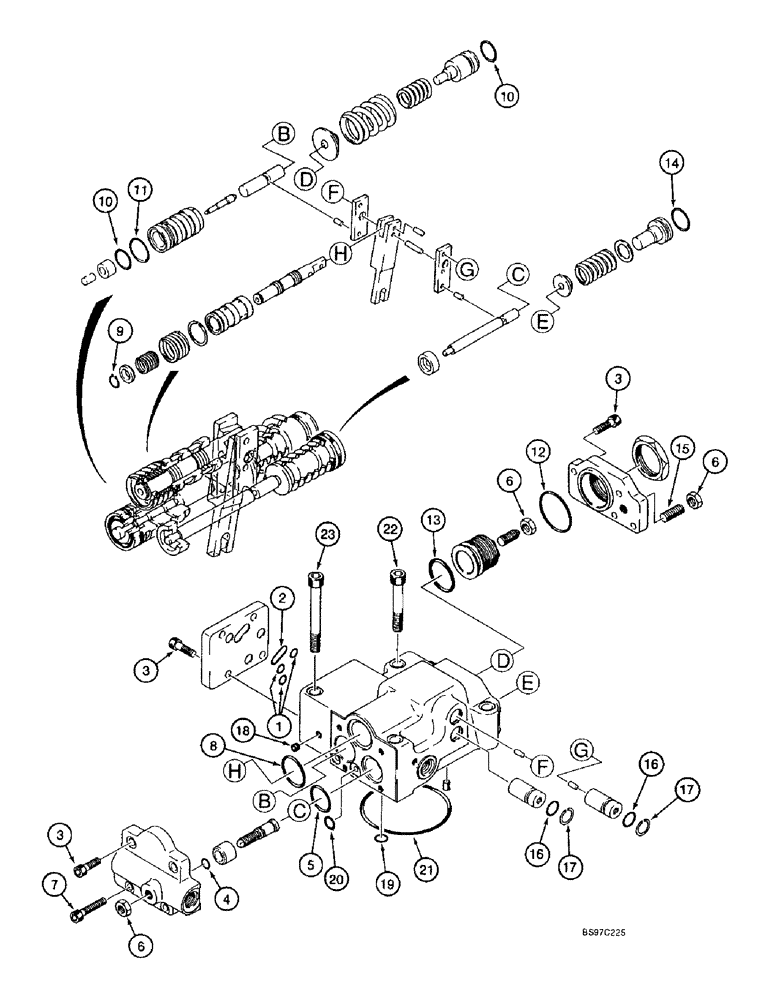

Запчасти Case 9040B (8-128) - 159954A1 OR 162220A1 HYDRAULIC PUMP, 160162A1 PUMP REGULATOR (08) - HYDRAULICS

160162A1

REGULATOR

- pump, Includes: Ref. 1 - 23

2шт.

1

154447A1

O-RING

- cover

3шт.

2

155063A1

O-RING

- cover

1шт.

3

861-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

- hex socket, 6 - 1.0 x 20 mm, class 12.9

10шт.

4

154451A1

O-RING

- plug

1шт.

5

154499A1

O-RING

- passage seal

1шт.

6

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

3шт.

7

862-6030

HEX SOC SCREW,M6 x 30mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 30 mm, class 12.9

2шт.

8

154509A1

O-RING

- cap seal

1шт.

9

800-1110

SNAP RING,M10, Ext

RING - external retaining, No. 10

1шт.

10

154483A1

O-RING

- valve seal

2шт.

11

154491A1

O-RING

- valve spool

1шт.

12

154515A1

O-RING

- plug

1шт.

13

154549A1

O-RING

- cap

1шт.

14

154487A1

O-RING

- plug

1шт.

15

157000A1

SET SCREW

- set, special

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

2шт.

17

800-2115

SNAP RING,M15, Int

RING - internal retaining, No. 15

2шт.

18

156972A1

PLUG

- port

5шт.

19

154455A1

O-RING

- passage seal

9шт.

20

154463A1

O-RING

- plug

1шт.

21

154681A1

O-RING

- housing

1шт.

22

863-8050

HEX SOC SCREW,M8 x 50mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 50 mm, class 12.9

2шт.

23

861-8070

HEX SOC SCREW,M8 x 70mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 70 mm, class 12.9

2шт.
