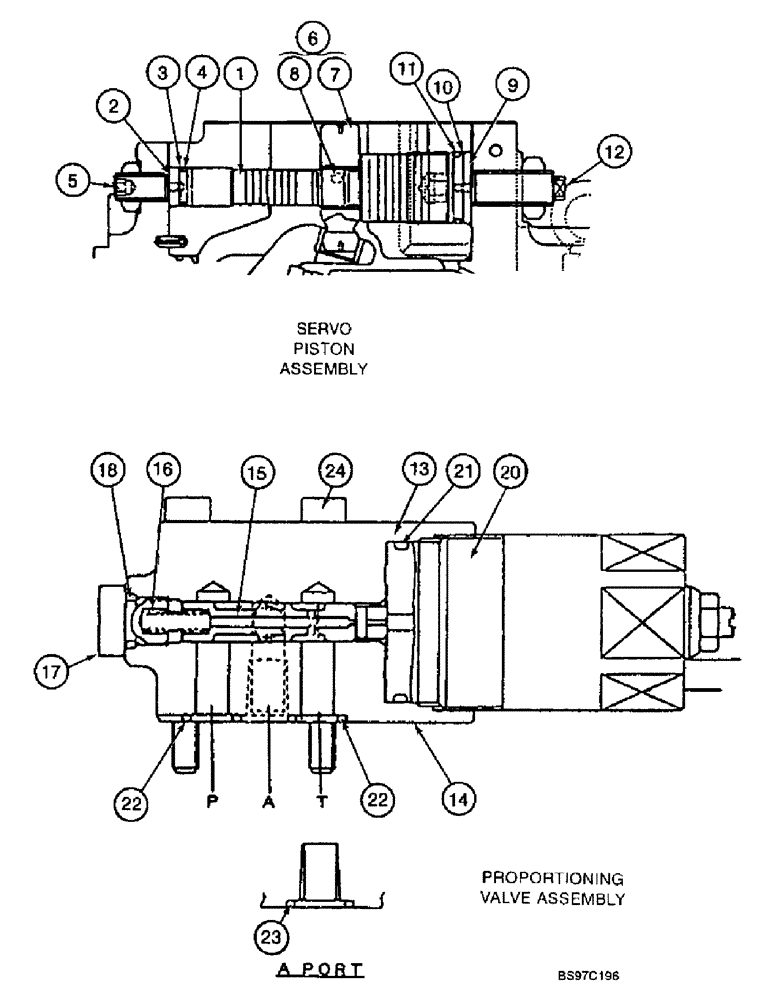

Запчасти Case 9040B (8-126) - 159954A1 HYD PUMP,STD MODELS PRIOR TO PIN DAC0401004 (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - servo, Includes: Ref. 1 - 12

1шт.

1

160212A1

PISTON

- servo, assembly

1шт.

2

160115A1

STOP

SEAL - shaft, servo piston assembly

1шт.

3

154549A1

O-RING

- shaft, servo piston assembly

1шт.

4

154017A1

BACK-UP RING

RING - backup, servo piston assembly

1шт.

5

160296A1

SET SCREW

- set, servo piston assembly

1шт.

6

160161A1

LEVER ASSY.

PIN ASSEMBLY - tilting, servo piston assembly, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - tilting, servo piston assembly

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - feedback, servo piston assembly

1шт.

9

160116A1

STOP

SEAL - shaft, servo piston assembly

1шт.

10

154487A1

O-RING

- shaft, servo piston assembly

1шт.

11

153970A1

BACK-UP RING

RING - backup, servo piston assembly

1шт.

12

160295A1

SET SCREW

- set, servo piston assembly

1шт.

160386A1

VALVE

ASSEMBLY - proportioning, Includes: Ref. 13 - 24

1шт.

13

160160A1

VALVE SECTION

BODY ASSEMBLY - proportioning valve, 160386A1 assembly, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - valve, proportioning, 160386A1 assembly

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - valve, proportioning, 160386A1 assembly

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - compression, proportioning valve, 160386A1 assembly

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - port, proportioning valve, 160386A1 assembly

1шт.

18

154455A1

O-RING

- port plug, 160386A1 proportioning valve assembly

1шт.

19

160082A1

PLUG

- port (not shown), 160386A1 proportioning valve assembly

1шт.

20

NSS

NOT SOLD SEPARAT

SOLENOID - proportioning valve, 160386A1 assembly

1шт.

21

O-RING - solenoid, 160386A1 proportioning valve assembly

1шт.

22

154455A1

O-RING

- passage, 160386A1 proportioning valve assembly

2шт.

23

154463A1

O-RING

- passage, 160386A1 proportioning valve assembly

1шт.

24

862-5050

HEX SOC SCREW,M5 x 50mm, Cl 12.9

BOLT - hex socket, 5 - 0.8 x 50 mm, class 12.9, 160386A1 proportioning valve assembly

4шт.
