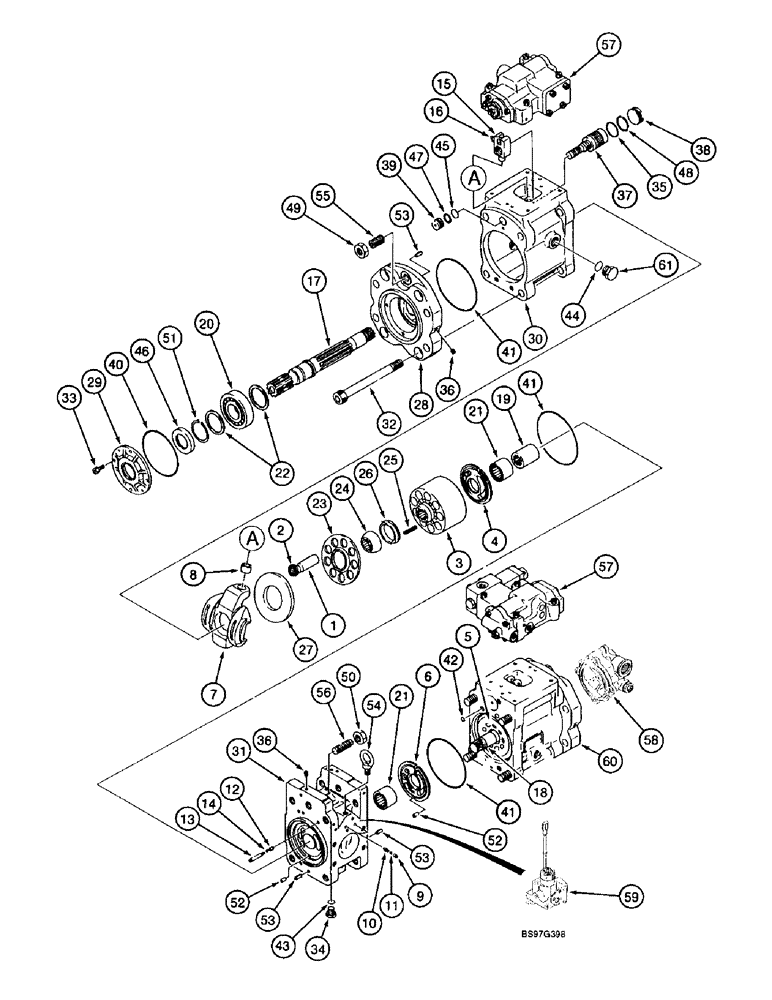

Запчасти Case 9040B (8-120) - 162220A1 HYD PUMP,STD MODELS PIN DAC0401004 & AFT,ALL SPECL APPLCTN., LONG REACH/TIMBER KING MODELS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
162220A1
PUMP, HYDRAULIC
PUMP - hydraulic, Includes: Ref. 1 - 61
1шт.
162220A1R
REMAN-HYD PUMP
9040B CASE CRAWLER EXCAVATOR, PUMP - hydraulic, PIN DAC0401004 (11/94-)
1шт.
162220A1C
CORE-HYDRAULIC PUMP
Return Number
1шт.
160154A1
PISTON
PISTON ASSEMBLY - pump, Includes: Ref. 1 and 2 contains 9 of each
1шт.
1
NSS
NOT SOLD SEPARAT
PISTON - pump
1шт.
2
NSS
NOT SOLD SEPARAT
SHOE - piston
1шт.
160155A1
VALVE SPRING
BLOCK ASSEMBLY - port plate and cylinder, right-hand, Includes: Ref. 3 and 4
1шт.
3
NSS
NOT SOLD SEPARAT
BLOCK - cylinder
1шт.
4
NSS
NOT SOLD SEPARAT
PLATE - valve, right-hand
1шт.
160156A1
VALVE SPRING
BLOCK ASSEMBLY - port plate and cylinder, left-hand, Includes: Ref. 5 and 6
1шт.
5
NSS
NOT SOLD SEPARAT
BLOCK - cylinder
1шт.
6
NSS
NOT SOLD SEPARAT
PLATE - valve, left-hand
1шт.
160157A1
PLATE, THRUST
PLATE ASSEMBLY - swash, Includes: Ref. 7 and 8
2шт.
7
NSS
NOT SOLD SEPARAT
PLATE - swash
1шт.
8
NSS
NOT SOLD SEPARAT
BUSHING - plate
1шт.
160158A1
VALVE
VALVE ASSEMBLY - check, Includes: Ref. 9 - 11
2шт.
9
NSS
NOT SOLD SEPARAT
SEAT - check valve
1шт.
10
NSS
NOT SOLD SEPARAT
BODY - check valve
1шт.
11
156966A1
BALL
BALL - steel
1шт.
160159A1
VALVE
VALVE ASSEMBLY - check, Includes: Ref. 12 - 14
2шт.
12
NSS
NOT SOLD SEPARAT
SEAT - check valve
1шт.
13
NSS
NOT SOLD SEPARAT
BODY - check valve
1шт.
14
156966A1
BALL
BALL - steel
1шт.
160161A1
LEVER ASSY.
PIN ASSEMBLY - tilting
2шт.
15
NSS
NOT SOLD SEPARAT
PIN - tilting
1шт.
16
NSS
NOT SOLD SEPARAT
PIN - feedback
1шт.
17
160033A1
DRIVE SHAFT
SHAFT - drive, front
1шт.
18
160034A1
DRIVE SHAFT
SHAFT - drive, rear
1шт.
19
160003A1
COUPLING
COUPLING - spline
1шт.
20
160279A1
BEARING, ROLLER, CYL,40 mm ID x 90 mm OD x 23 mm
BEARING ASSEMBLY - roller
2шт.
21
160280A1
NEEDLE BEARING,Needle, 35mm ID x 47mm OD x 30mm W
BEARING ASSEMBLY - needle
2шт.
22
156963A1
SPACER
SPACER - bearing
4шт.
23
156959A1
HOLDER
HOLDER - piston shoe
2шт.
24
156958A1
BUSHING
BUSHING - cylinder block
2шт.
25
156960A1
SPRING
SPRING - piston return
18шт.
26
160112A1
SPACER
SPACER - return spring
2шт.
27
160113A1
PLATE
PLATE - piston shoe
2шт.
28
160114A1
LARGE PLATE
PLATE, LARGE SUPPORT - swash plate
2шт.
29
160334A1
COVER
COVER - seal
1шт.
30
160305A1
HOUSING
HOUSING - pump
2шт.
31
160211A1
CHAIN (CE)
BLOCK - valve
1шт.
32
863-20210
HEX SOC SCREW,M20 x 210mm, Cl 12.9
BOLT - hex socket, 20 - 2.5 x 210 mm, class 12.9
8шт.
33
861-8020
HEX SOC SCREW,M8 x 20mm, Cl 12.9
SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9
4шт.
34
155496A1
PLUG
PLUG - port
3шт.
35
154549A1
O-RING
O-RING - servo piston
2шт.
36
156972A1
PLUG
PLUG - port
20шт.
37
160212A1
PISTON
PISTON - servo
2шт.
38
160115A1
STOP
SEAL - shaft
2шт.
39
160116A1
STOP
SEAL - shaft
2шт.
41
154805A1
O-RING
O-RING - housings and covers
4шт.
43
154467A1
O-RING,10.8mm ID x 2.4mm Width
O-RING - plug
3шт.
46
159959A1
OIL SEAL
SEAL - oil
1шт.
47
153970A1
BACK-UP RING
RING - backup
2шт.
48
154017A1
BACK-UP RING
RING - backup
2шт.
49
829-1316
NUT,M16, Cl 10
NUT - hex, 16 mm - 2.0, class 10
2шт.
50
829-1320
NUT,M20, Cl 10
NUT - hex, 20 mm - 2.5, class 10
2шт.
51
800-1140
SNAP RING,M40, Ext
SNAP RING, , Retaining M40, Ext
2шт.
52
156954A1
DOWEL
PIN - dowel
2шт.
53
160117A1
PIN, ROLL
PIN - roll
4шт.
54
163673A1
BOLT
BOLT - eye
2шт.
55
160295A1
SET SCREW
SCREW - set
2шт.
56
160296A1
SET SCREW
SCREW - set
2шт.
57
160162A1
REGULATOR
REGULATOR - pump, parts list figure 8-128
2шт.
58
163659A1
PUMP, HYDRAULIC
PUMP ASSEMBLY - pilot gear, parts list figure 8-124
1шт.
59
163523A1
VALVE
VALVE ASSEMBLY - proportioning, parts list figure 8-124
1шт.
60
160335A1
COVER
COVER - pump end
1шт.
61
155471A1
PLUG
PLUG - port
3шт.
Выбрано товаров: 71
