Запчасти Case 9040B (8-116) - 159954A1 HYDRAULIC PUMP, STANDARD MODELS PRIOR TO P.I.N. DAC0401004 (08) - HYDRAULICS

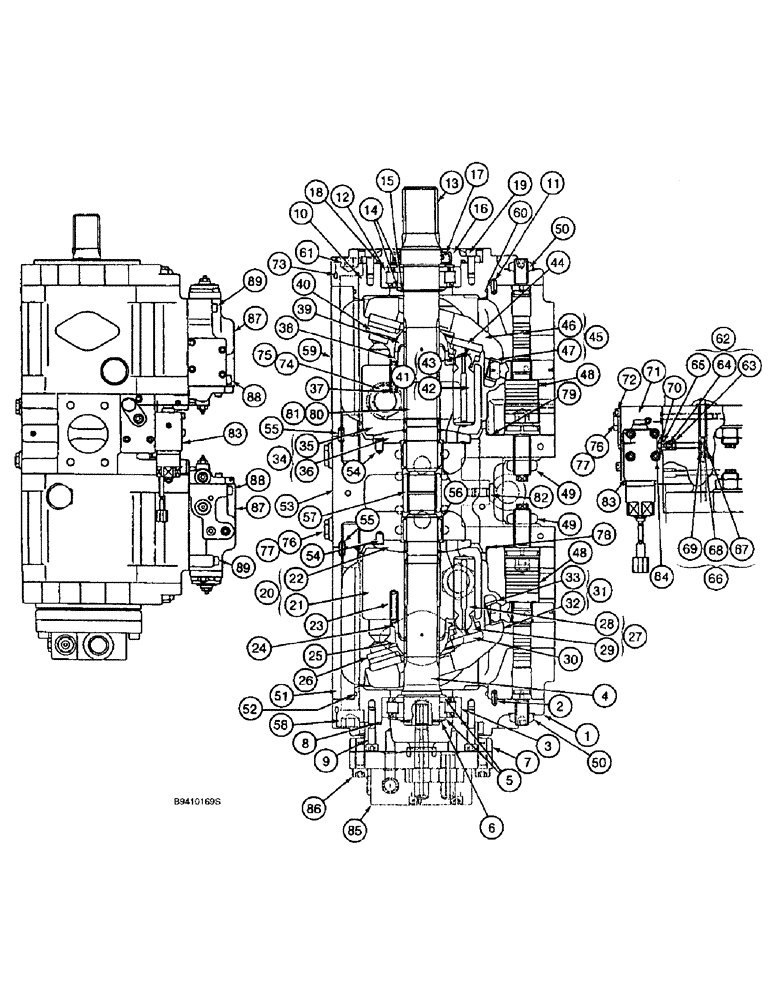

Схема запчастей Case 9040B - (8-116) - 159954A1 HYDRAULIC PUMP, STANDARD MODELS PRIOR TO P.I.N. DAC0401004 (08) - HYDRAULICS
50
6
26
61
4
23
67
48
76
49
21
11
89
77
37
33
69
54
38
74
57
50
81
36
49
88
42
18
19
89
68
46
78
2
34
14
9
30
79
76
17
35
15
87
84
56
83
22
3
47
80
88
53
77
41
59
75
44
58
55
28
24
10
64
54
13
63
73
72
25
27
1
39
65
43
83
29
71
45
5
86
51
16
55
48
60
85
87
52
32
70
31
7
40
12
82
20
8
66
62

Артикул

Название

Примечание

Количество

159954A1

PUMP, HYDRAULIC

PUMP - hydraulic, Includes: Ref. 1 - 89

1шт.

162220A1R

REMAN-HYD PUMP

9040B CASE CRAWLER EXCAVATOR, PUMP - hydraulic, P.I.N. DAC0401004 (11/94-), Reman for New PN 159954A1

1шт.

162220A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

160114A1

LARGE PLATE

SUPPORT - swash plate

1шт.

2

160117A1

PIN, ROLL

PIN - roll

1шт.

3

160279A1

BEARING, ROLLER, CYL,40 mm ID x 90 mm OD x 23 mm

BEARING ASSEMBLY - roller (contains no serviceable parts)

1шт.

4

160034A1

DRIVE SHAFT

SHAFT - drive, rear

1шт.

5

156963A1

SPACER

- bearing

2шт.

6

800-1140

SNAP RING,M40, Ext

Retaining M40, Ext

1шт.

7

160335A1

COVER

- pump end

1шт.

8

154713A1

O-RING

- pump cover

1шт.

9

160294A1

BOLT,Hex Skt

BOLT - special

4шт.

10

160114A1

LARGE PLATE

SUPPORT - swash plate

1шт.

11

160117A1

PIN, ROLL

PIN - roll

1шт.

12

160279A1

BEARING, ROLLER, CYL,40 mm ID x 90 mm OD x 23 mm

BEARING ASSEMBLY - roller (contains no serviceable parts)

1шт.

13

160033A1

DRIVE SHAFT

SHAFT - drive, front

1шт.

14

156963A1

SPACER

- bearing

2шт.

15

800-1140

SNAP RING,M40, Ext

Retaining M40, Ext

1шт.

16

160334A1

COVER

- seal

1шт.

17

159959A1

OIL SEAL

- oil

1шт.

18

154713A1

O-RING

- seal cover

1шт.

19

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9

4шт.

20

160156A1

VALVE SPRING

BLOCK ASSEMBLY - port plate and cylinder, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - port

1шт.

23

156960A1

SPRING

- shoe return

9шт.

24

160112A1

SPACER

- spring

1шт.

25

156958A1

BUSHING

- cylinder block, spherical

1шт.

26

156959A1

HOLDER

- piston shoe

1шт.

27

160154A1

PISTON

ASSEMBLY - pump, Includes: Ref. 28 and 29

9шт.

28

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

29

NSS

NOT SOLD SEPARAT

SHOE - piston

9шт.

30

160113A1

PLATE

- piston shoe

1шт.

31

160157A1

PLATE, THRUST

PLATE ASSEMBLY - swash, Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

33

NSS

NOT SOLD SEPARAT

BUSHING - swash plate

1шт.

34

160155A1

VALVE SPRING

BLOCK ASSEMBLY - port plate and cylinder

1шт.

35

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE - port

1шт.

37

156960A1

SPRING

- shoe return

9шт.

38

160112A1

SPACER

- spring

1шт.

39

156958A1

BUSHING

- cylinder block, spherical

1шт.

40

156959A1

HOLDER

- piston shoe

1шт.

41

160154A1

PISTON

ASSEMBLY - pump, Includes: Ref. 42 and 43

9шт.

42

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

43

NSS

NOT SOLD SEPARAT

SHOE - piston

9шт.

44

160113A1

PLATE

- piston shoe

1шт.

45

160157A1

PLATE, THRUST

PLATE ASSEMBLY - swash, Includes: Ref. 46 and 47

1шт.

46

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

47

NSS

NOT SOLD SEPARAT

BUSHING - swash plate

1шт.

48

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - servo, parts list on figure 8-126

2шт.

49

829-1320

NUT,M20, Cl 10

- hex, 20 mm - 2.5, class 10

2шт.

50

829-1316

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

2шт.

51

160305A1

HOUSING

- pump, gear pump end

1шт.

52

154805A1

O-RING

- housing

1шт.

53

160211A1

CHAIN (CE)

BLOCK - valve

1шт.

54

156954A1

DOWEL

PIN - dowel

2шт.

55

160117A1

PIN, ROLL

PIN - roll

2шт.

56

160280A1

NEEDLE BEARING,Needle, 35mm ID x 47mm OD x 30mm W

BEARING ASSEMBLY - needle (contains no serviceable parts)

2шт.

57

160003A1

COUPLING

- spline

1шт.

58

863-20210

HEX SOC SCREW,M20 x 210mm, Cl 12.9

BOLT - hex socket, 20 - 2.5 x 210 mm, class 12.9

4шт.

59

160305A1

HOUSING

- pump, drive shaft end

1шт.

60

154805A1

O-RING

- housing

1шт.

61

863-20210

HEX SOC SCREW,M20 x 210mm, Cl 12.9

BOLT - hex socket, 20 - 2.5 x 210 mm, class 12.9

4шт.

62

160158A1

VALVE

ASSEMBLY - check, Includes: Ref. 63 - 65

2шт.

63

NSS

NOT SOLD SEPARAT

SEAL - passage

2шт.

64

156966A1

BALL

- steel

2шт.

65

NSS

NOT SOLD SEPARAT

SEAT - valve

2шт.

66

160159A1

VALVE

ASSEMBLY - check, Includes: Ref. 67 - 69

2шт.

67

NSS

NOT SOLD SEPARAT

SEAL - passage

2шт.

68

156966A1

BALL

- steel

2шт.

69

NSS

NOT SOLD SEPARAT

SEAT - valve

2шт.

70

154475A1

O-RING

- valve

1шт.

71

160303A1

HOUSING

- check valve

1шт.

72

862-6060

HEX SOC SCREW,M6 x 60mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 60 mm, class 12.9

3шт.

73

156972A1

PLUG

- port

24шт.

74

155471A1

PLUG

- housing

3шт.

75

154503A1

O-RING

- plug

3шт.

76

155496A1

PLUG

- port

3шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

3шт.

78

154805A1

O-RING

- housing

2шт.

79

154455A1

O-RING

- plug

16шт.

80

NSS

NOT SOLD SEPARAT

NAMEPLATE - hydraulic pump

1шт.

81

160118A1

COTTER PIN

PIN - retaining

2шт.

82

NSS

NOT SOLD SEPARAT

BOLT - eye

1шт.

83

160386A1

VALVE

ASSEMBLY - proportioning, parts list on figure 8-126, Includes: Ref. 84

1шт.

84

862-5050

HEX SOC SCREW,M5 x 50mm, Cl 12.9

BOLT - hex socket, 5 - 0.8 x 50 mm, class 12.9

4шт.

85

163659A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - pilot gear, parts list on figure 8-124, Includes: Ref. 86

1шт.

86

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

2шт.

87

160162A1

REGULATOR

- pump, parts list on figure 8-128, Includes: Ref. 88 and 89

2шт.

88

862-8070

SCREW

BOLT - hex socket, 8 - 1.25 x 70 mm, class 12.9

2шт.

89

862-8050

SCREW

BOLT - hex socket, 8 - 1.25 x 50 mm, class 12.9

2шт.

Выбрано товаров: 92
